3. 3 ASSEMBLING THE MOTOR ON THE GEARBOX - GEARBOX TYPE CE 12 - 14 - 15
For gearboxes type CE12 and CE14-CE15, the procedure is different from all other gearboxes.
3.3.1 Motor shaft with key

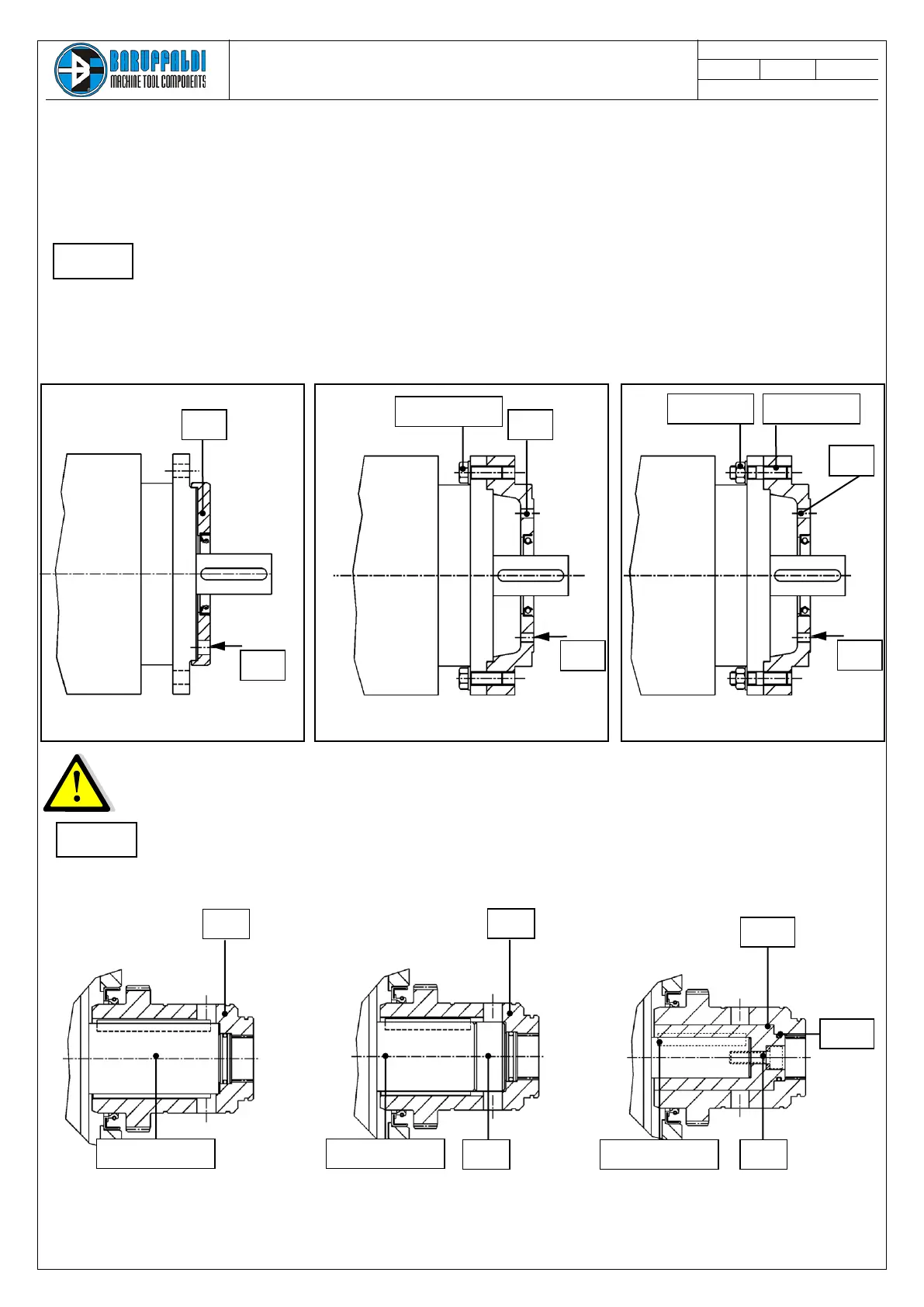

• ASSEMBLING THE MOTOR FLANGE ON THE MOTOR
Some motors have fixing holes that are in the same position as those for fixing the motor flange to the
gearbox. In this case, the flange is only a centering element, therefore it must be assembled on the
motor as shown in picture a).
For all other motors, the flange must be assembled as shown in picture b) or picture c).
a) b) c)
For horizontal mounting, the drain hole (3c) on the motor flange (03) must be at the bottom.
• ASSEMBLING THE PINION ON THE MOTOR SHAFT
Fit the pinion (09) on the motor shaft, together with plug+O-ring (18) and spacer (17 - only if necessary).
Only for very small motor shafts, there can be an adaptation bush (19), that must be fixed on the motor
shaft by means of a screw (19a), to be locked with the relevant sealing ring (19b).
