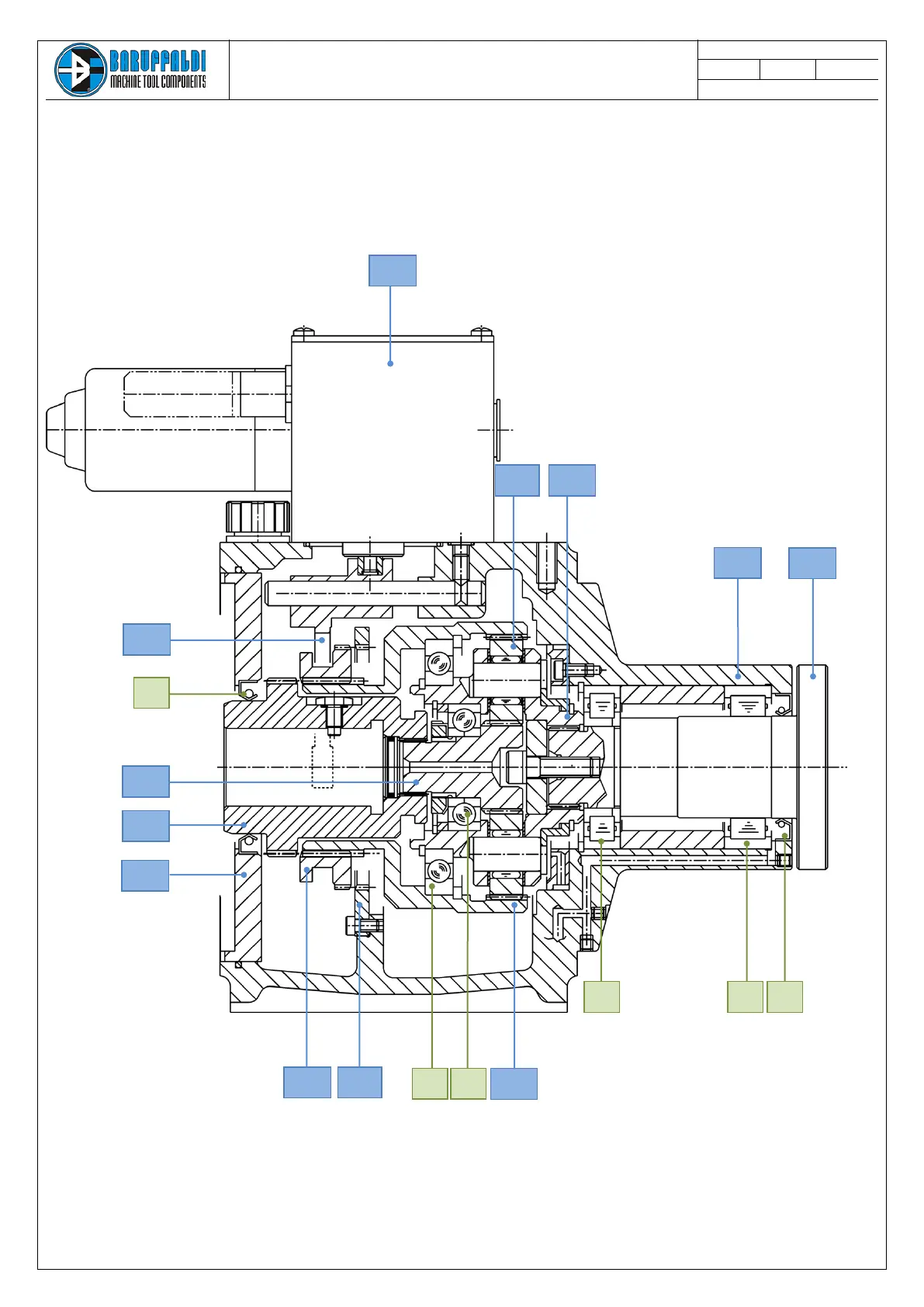

6.2 GEARBOX TYPE CE 12 - 14 -15
06
07
04
08
11
09
10
12
13
01
03
A
C
D
E
F
B
01 Housing
02 Actuator
03 Motor flange
04 Output flange or Output shaft
06 Fork
07 Planetary gears
08 Planetary gears carrier
09 Pinion
10 Ring gear
11 Sliding sleeve
12 Sun gear
13 Fixed ring
02
A Rotary Shaft Seal (pinion)
B Pinion Bearing
C Rotary Shaft Seal (output)
D Output Shaft Bearing (outer)
E Output Shaft Bearing (inner)
F Ring Gear Bearing
