ZENITH SERIES
!
Be sure to use a mattress that is properly sized to fit
the sleep deck, which will remain centered on the deck
relative to State and Federal Guidelines. Use of an im-
properly fitted mattress could result in injury or death.
!
Use a properly sized mattress in order to minimize
the gap between the side of the mattress and assist
devices. This gap must be small enough to prevent
resident/patient from getting his/her head or neck
caught in this location.

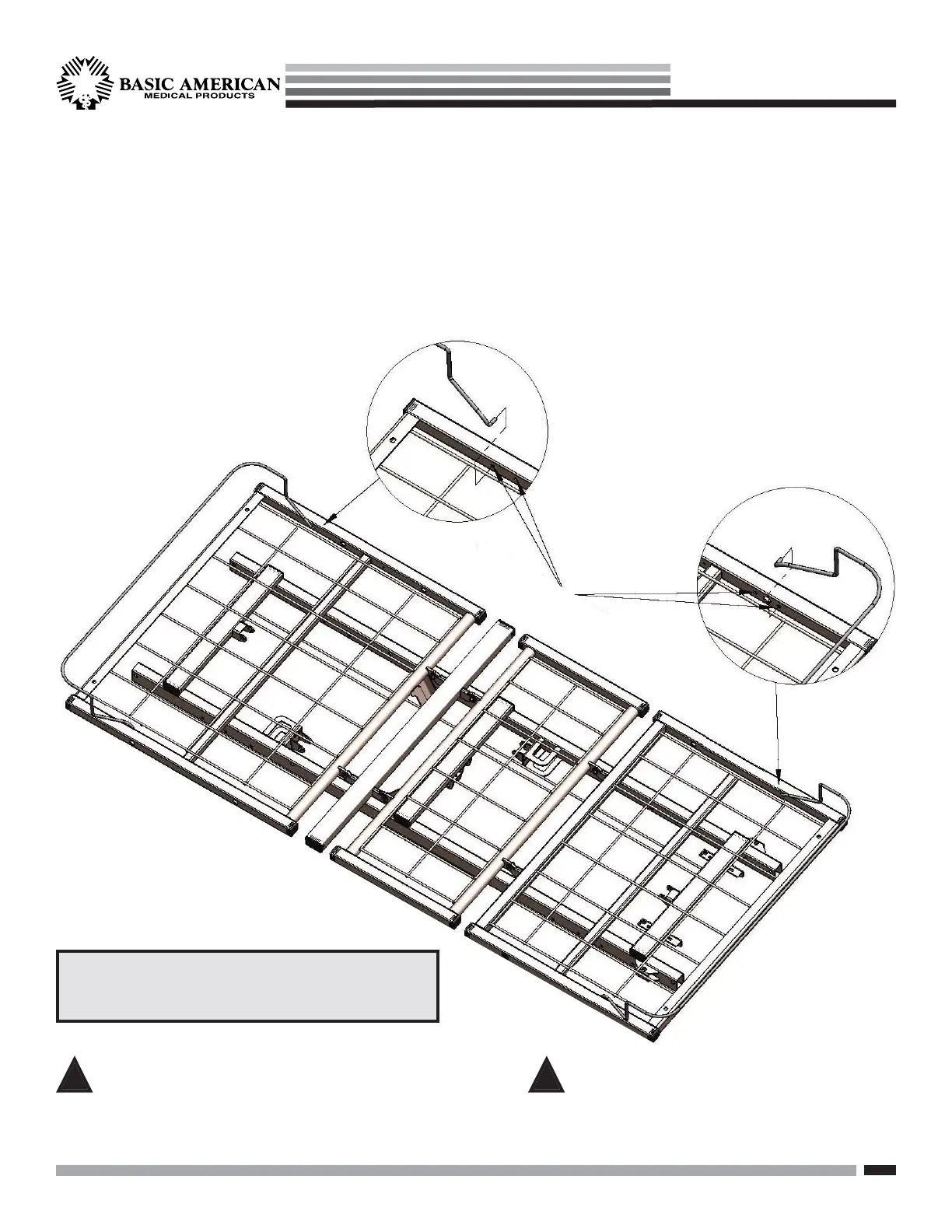

STANDARD MATTRESS RETAINER INSTALLATION
(Using 2 Retainers 999-0844-124)
MAKE SURE ALL THREE ADJUSTABLE PARTS
ARE PROPERLY POSITIONED FOR 76” OR 80”
CONFIGURATIONS (SEE PAGES 10 AND 12)
1. Determine if you need to position your bed in an 80” or 76”
configuration (80” outside holes; 76” inside holes - see
Closeups A & B).
2. On the foot end, carefully squeeze the Mattress Retainer
ends inward, toward the center of the retainer, and insert
the ends into the proper holes (see Closeups A & B).
3. Lay the Mattress Retainer down so that the
elbows rest on the decks and the long cross
rod is on the foot end side as shown.
4. On the head end, carefully squeeze the Mattress Retainer ends
inward, toward the center of the retainer, and insert the ends
into the proper holes (see Closeups A & B).
5. Lay the Mattress Retainer down so that the elbows rest on the
decks and the long cross rod is on the foot end side as shown.
IMPORTANT
CLOSEUP A:
INSERT HEAD END
MATTRESS RETAINER
CLOSEUP B:
INSERT FOOT END
MATTRESS RETAINER
Outside holes for 80” Beds
Inside holes for 76” Beds
