Basic American ZENITH Series - Unpacking the Bed Components

ALSO
DISCARD TOP
AND BOTTOM
CARTONS
1
2
5
6
6
4
8
10
10
7
9
8
12
11
13
3
Cut and
discard
cable tie.
NOTE:
Underbed Light is optional and available on
APS981741 Models.
Underbed Light and Mounted Battery optional
combination is available on APS981742 Models.
GF Health Products, Inc. - www.grahamfield.com Zenith Series Service Manual 999-0831-190C DEC. 2013
ZENITH SERIES
9
UNPACKING THE BED
•
Make sure all parts/components are included.
•
Check all bed components for obvious damage.
•
Inspect the Power Supply Cord for any cuts and/
or damage.
•
Check to see all actuator/motor cables are routed
and connected properly to the control box.
DISCARD

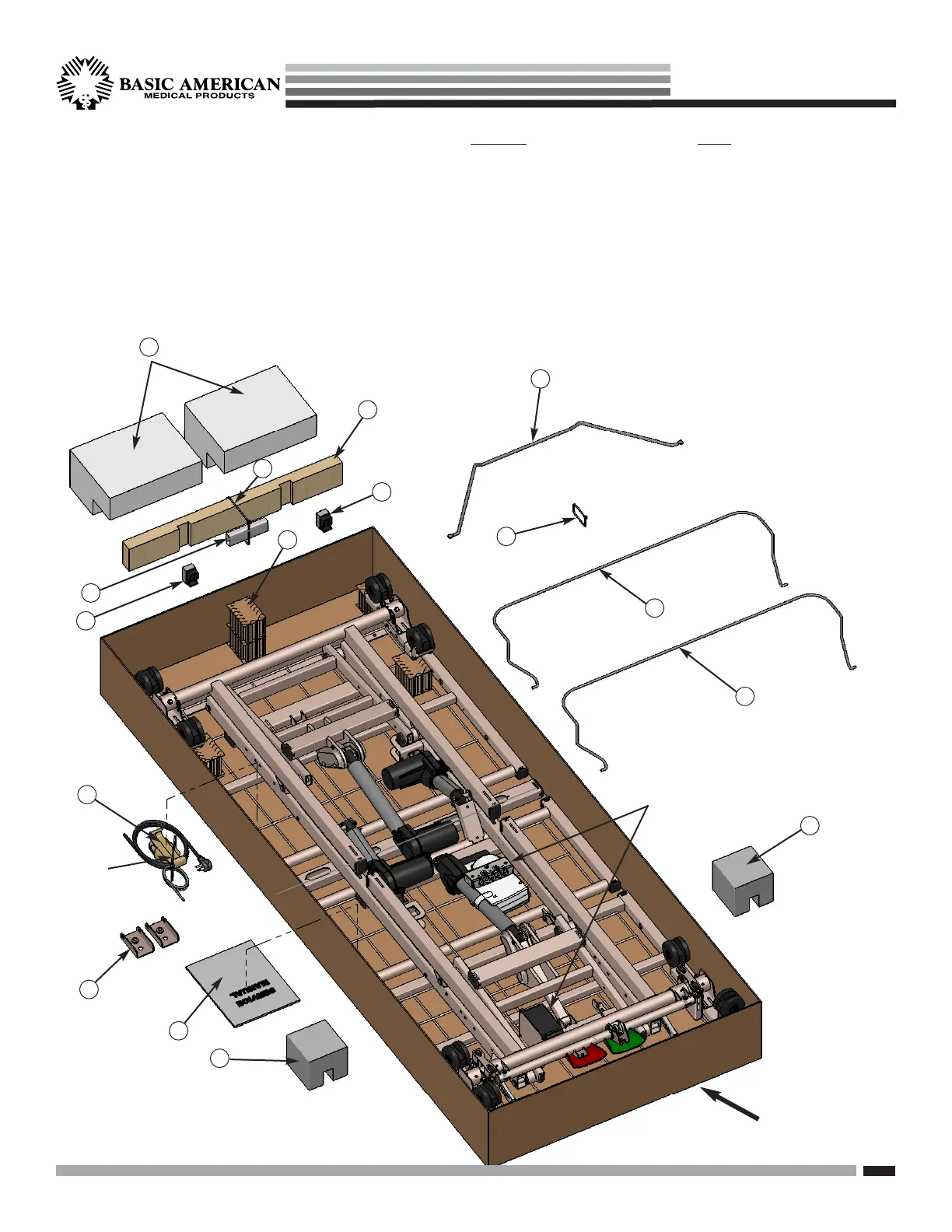

1. Middle Foam Block
2. Large Block
3. Large Cable Tie - CUT
4. Notched 2 x 4 Board
5. Foam Wrapping
6. End Caps with Foam
7. Small Cable Tie - CUT
8. Notched Leg Foam
KEEP
9. Wireform Wallsaver
10. Two Mattress Retainers
11. Service Manual/Documents
12. Trendelenberg Brackets &
Attaching Hardware in bag
13. Pendant Holster
(attached to pendant)
NOTE:
END OF POWER CABLE IS COILED
FOR SHIPPING AND TIED, WITH
CABLE TIE, TO GRID WIRE ALONG
WITH PENDANT, PENDANT CABLE
& HOLSTER.
PLEASE CUT AND DISCARD CABLE
TIE AROUND CABLES WHEN YOU
UN-PACK THE BED.
