STANDARD WIREFORM WALLSAVER INSTALLATION
WALLSAVER ASSEMBLY

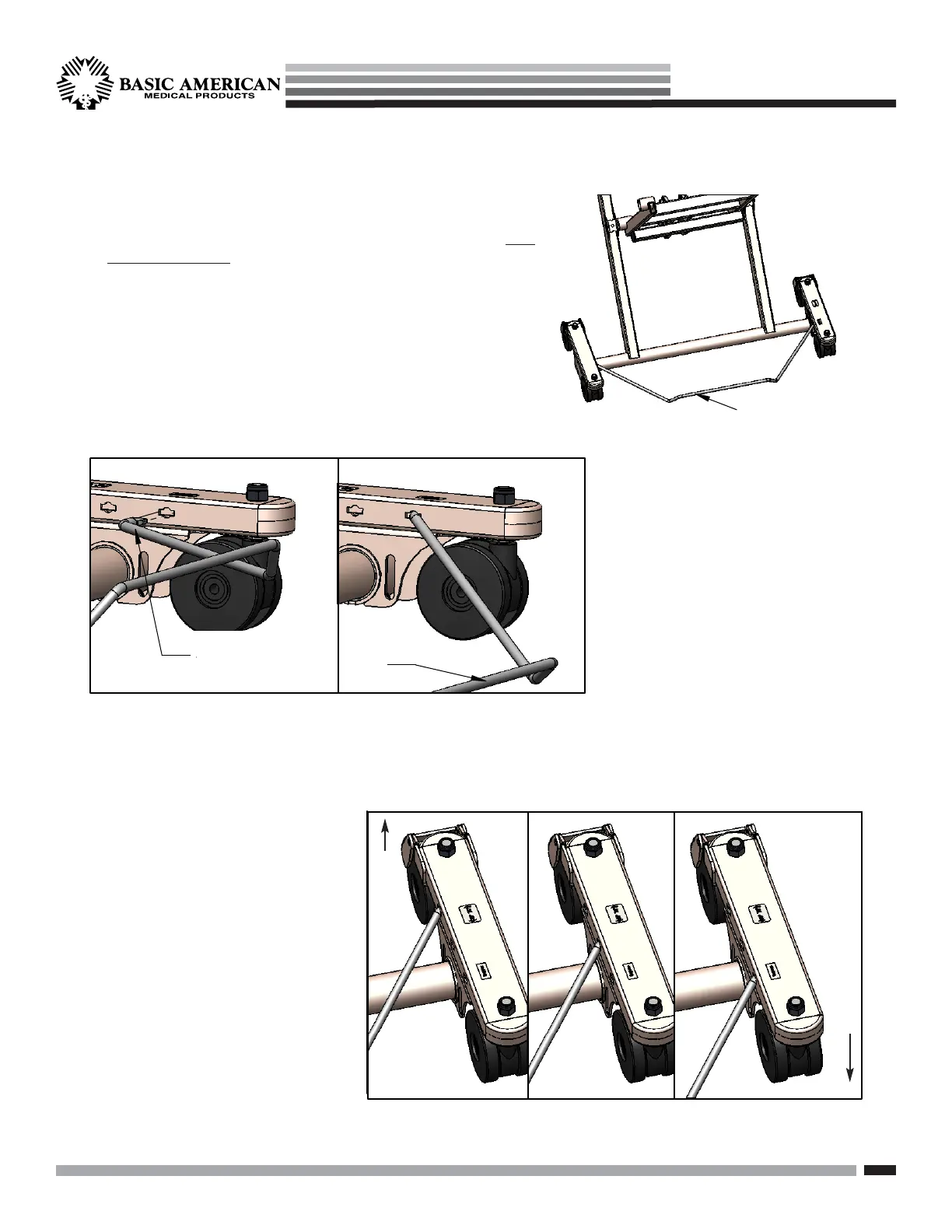

1. Position the Wireform Wallsaver (Part 999-0844-180) with bent
end facing upward and tab ends facing inward as shown at right.
2. Determine the position desired (See bottom of page).
3. Gently squeeze the tab ends of the wallsaver inward toward the
center of the wallsaver and, holding the tabs parallel with the slots
in the caster bases (See DETAIL A), slide the tabs into the slots
while letting the wallsaver gently expand outward.
4. Turn the wallsaver downward until it rests on the floor (See
Detail B).
WALLSAVER REMOVAL
1. To remove or move the Wireform
Wallsaver to a new position, raise
the wallsaver off the floor until
the end tabs are horizontal.
2. Squeeze the ends toward the
center of the wallsaver until the
end tabs slide out of the caster
base slots.
HEAD END
WALLSAVER POSITIONS
1. The APS 9000 wallsaver features
3 positions for easy reconfiguration
- 76”, 80”, and Trapeze.
2. For 76” beds, position the wallsaver
ends in the caster base slots closest
to the FOOT end of the bed. For 80”
beds, position the wallsaver ends
in the MIDDLE slots on the bases.
3. If you have an optional Trapeze unit
on a 76” bed, position the wallsaver
ends in the MIDDLE slots on the
caster bases. For 80” beds position
wallsaver in slots closest to HEAD.
76” Bed Wallsaver
Position w/o Trapeze
76” Bed Wallsaver
Position w/Trapeze or
80” Bed w/o Trapeze
80” Bed Wallsaver
Position w/Trapeze
FOOT END
HEAD END
Finish with
Wallsaver
resting on
floor
Start with tab held
horizontally
Wireform Wallsaver
999-0844-180
Bend faces upward
