ZENITH SERIES
!
DO NOT use unauthorized parts, accessories, or adaptors other than those specified/authorized by
GF Health Products, Inc. DO NOT open assemblies such as the Actuators, Hand Control, or Control
Box. If unauthorized personnel perform work on these components, the manufacturer’s warranty
becomes void. NEVER operate the bed if a Power Cord or Plug is damaged or not working properly.
Contact qualified Service Personnel for examination and repair. Always unplug the Power Cord when
performing any maintenance on the bed.

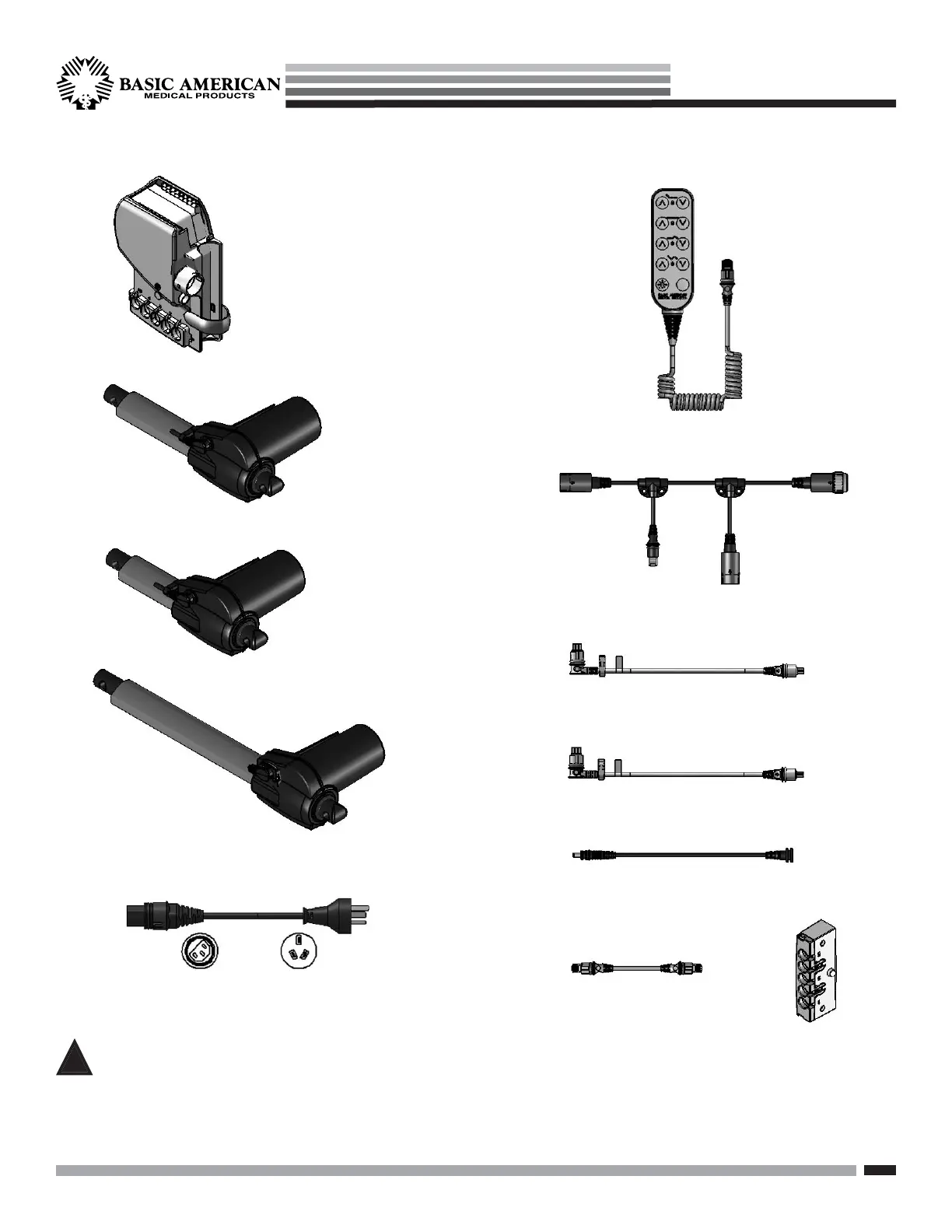

Control/Junction Box
Part # 999-0831-300
Quantity = 1
Power Cable plugs
into side port (part
listed at bottom)
Head Motor/Actuator
Part # 999-0822-052
Quantity = 1
Foot Motor/Actuator
Part # 999-0822-053
Quantity = 1
MODEL
APS9817406
PENDANT:
Part # 999-0806-301
Quantity = 1
Bed also includes
Pendant Holster
Part # 999-0791-000
Quantity = 1
Double “T” Cable
Part # 999-0806-200
Quantity = 1
Motor Cable (Hd & HI/LO)
Part # 999-0806-203
Quantity = 3
Motor Cable (Ft.)
Part # 999-0806-202
Quantity = 1
Battery Backup Cable
Part # 999-0831-200
Quantity = 1
Underbed Light
Part # 999-0806-220
Quantity = 1
OPTIONAL UNDERBED LIGHT
(APS981741 or -2 Models Only)
Underbed Light Adaptor Cable
Part # 999-0806-212
Quantity = 1
STANDARD:
3 Prong Power Cable
Part # 999-0775-208
Quantity = 1
HI/LO Motor/Actuator
Part # 999-0831-051
Quantity = 2
APS 9000 SERIES ELECTRICAL COMPONENTS (LINAK)
