Basic American ZENITH Series - Page 32

GF Health Products, Inc. - www.grahamfield.com Zenith Series Service Manual 999-0831-190C DEC. 2013
32
ZENITH SERIES
WHEN ORDERING REPLACEMENT PARTS WITH CUSTOMER SERVICE,
PLEASE HAVE THE BED SERIAL NUMBER AVAILABLE
TO CONFIRM WHETHER THE PART IS COVERED UNDER WARRANTY.
(SEE PAGE 24 FOR LOCATION OF SERIAL NUMBER ID LABEL.)
1. TO ORDER A REPLACEMENT
HI/LO MOTOR USE SERVICE PACK
999-0831-051SP (Includes motor,
mounting hardware & installation
instruction sheet).
2. TO ORDER A REPLACEMENT
HEAD MOTOR USE SERVICE PACK
999-0822-052SP (Includes motor,
mounting hardware & installation
instruction sheet).
3. TO ORDER A REPLACEMENT
FOOT MOTOR USE SERVICE PACK
999-0822-053SP (Includes motor,
mounting hardware & installation
instruction sheet).
4. TO ORDER A REPLACEMENT
CONTROL BOX PLEASE USE
999-0831-300 (Includes control
box, detachable power cord, control
cable, ground wire screw, cable ties,
& installation instruction sheet).
5. TO ORDER A REPLACEMENT
DOUBLE T-CABLE USE SERVICE
PACK 999-0806-200SP (Includes
T-Cable, cable ties, grommets &
installation instruction sheet).
6. TO ORDER A REPLACEMENT
BATTERY CABLE USE PART
999-0844-200SP. FOR A NEW
UNDERBED LIGHT USE PART
999-0806-220. FOR A NEW LIGHT
BOX CABLE USE 999-0806-212.

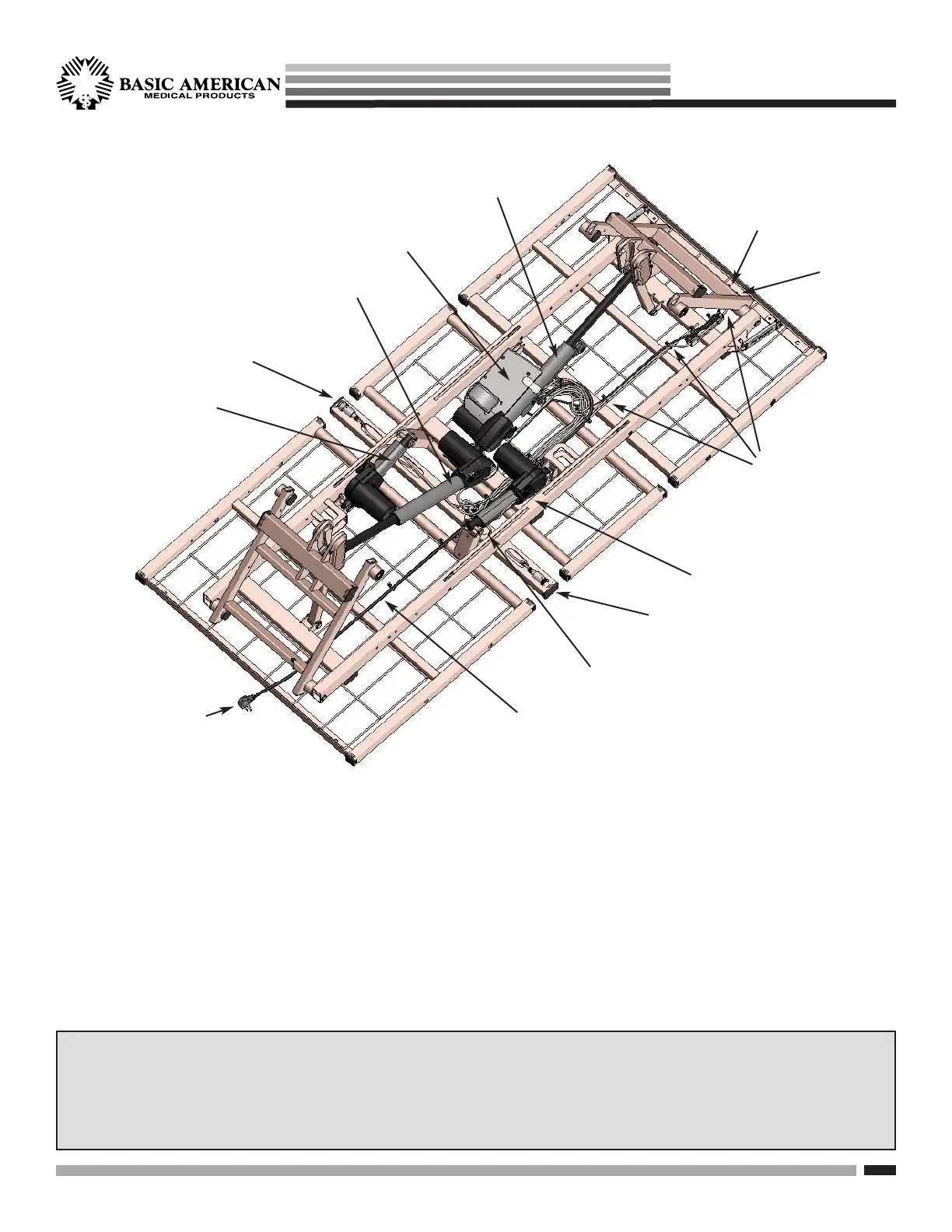

SERVICE/REPLACEMENT PART DIAGRAM - ELECTRONICS
POWER CABLE
PLUG AT HEAD END
FOOT/KNEE
MOTOR
LONGER SIDE OF T-CABLE
WITH PUSH CABLE TIE IN
SMALL HOLE
CONTROL BOX -
ATTACHED TO MOTOR
(MAY HAVE OPTIONAL
UNDERBED LIGHT)
END OF
BATTERY CABLE
(BLACK)
FOOT-END
OF T-CABLE
(GREY)
LONG “T” OF T-CABLE
AND BATTERY CABLE
SECURED TO ROD
AND MAIN FRAME
BRACKET WITH
CABLE TIES
FOOT MOTOR
POWER CABLE SECURED TO ROD
WITH CABLE TIES
SHORTER SIDE OF T-CABLE WITH
PUSH CABLE TIE IN SMALL HOLE
CABLE PROTECTION GROMMET
IN SEAT PAN KEY HOLE
HEAD-END
HI/LO MOTOR
FOOT-END
HI/LO MOTOR
HEAD
END
FOOT
END
