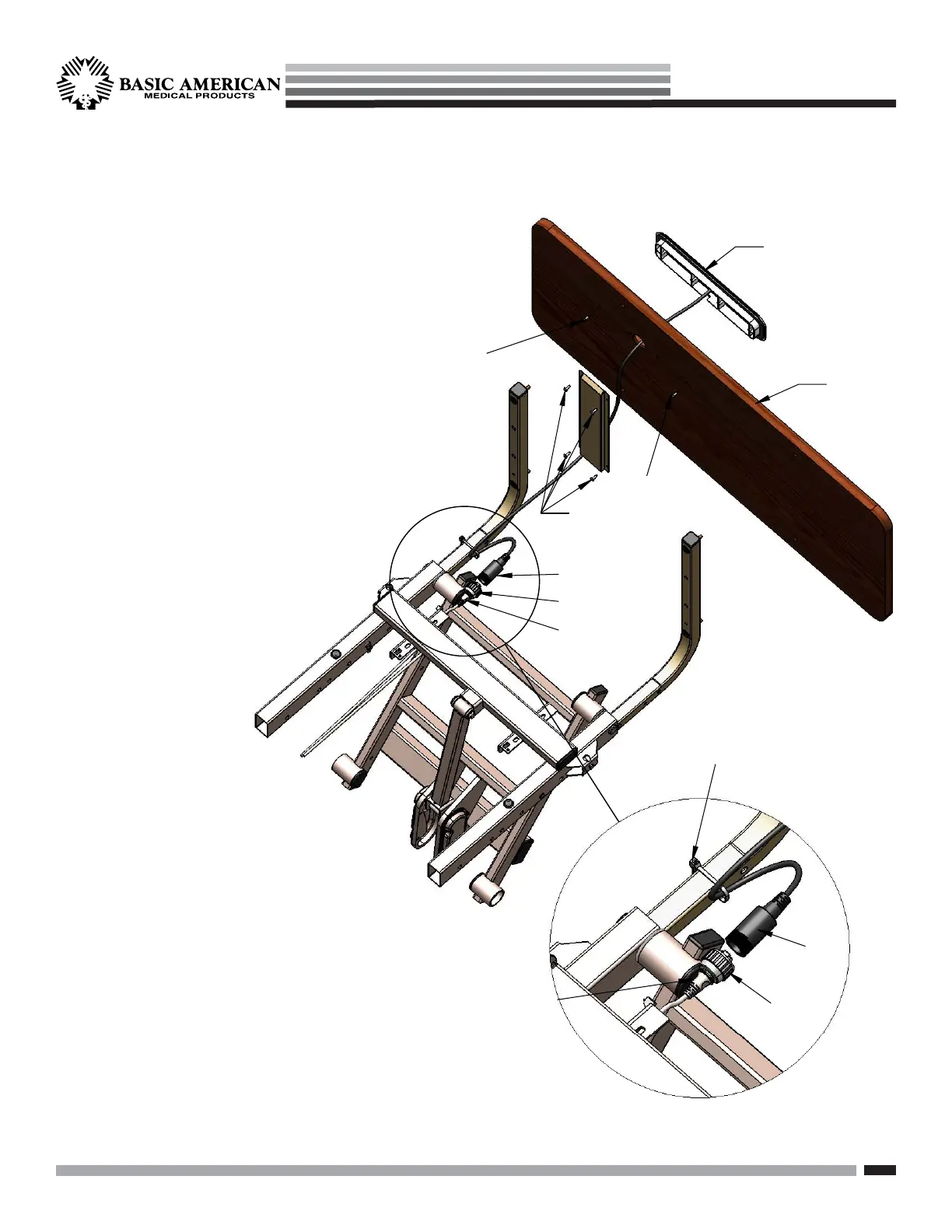

TROUBLESHOOTING/REPLACING THE APS STAFF CONTROL
1. REMOVING AND REPLACING THE
STAFF CONTROL ASSEMBLY
a. UNPLUG THE POWER CORD FROM
THE WALL OUTLET.
b. Unscrew the four Phillips Screws (#1) that attach the
Shroud (cable cover) to the footboard and set aside.
c. At the foot end of the bed, unscrew the retaining
cap on the T-Cable (#3) and unplug the two cables.
d. Unscrew the two remaining Phillips Screws (#2)
from the inside of the footboard that attach the
Staff Control Assembly bevel to the board. Set
aside screws for later re-assembly.
e. Remove the OLD Staff Control Assembly and feed
the old cable out through the large hole.
f. Feed the cable of the NEW Staff Control
Assembly from the outside through the
large hole and insert the bevel into the
cutout on the outside of the footboard.
g. Secure the Staff Control by
re-inserting the two Phillips
Screws (#2) you removed
in Step D.
h. Re-position the Shroud on
the inside of the footboard
and secure with the four
Phillips Screws (#1) you
removed in Step B.
i. Plug the T-Cable (#5) into the Staff Control
Cable (#4), making sure the phone jack plug
is seated correctly into the Staff Control cable plug.
Screw on the retaining cap (#3) to secure.
j. Run a Cable Tie through the large end hole on
the right-hand footboard mounting tube.
k. Loop the excess Staff Control Cable. Run the cable
tie around the cable and pull tight to secure. Cut off
any excess Cable Tie.
End of Double T-Cable
at foot end - Grey
(“T” runs on either
side of Seat Pan
for attaching the
Hand Controller.)
