Basler A202k High Gain 13
DRAFT

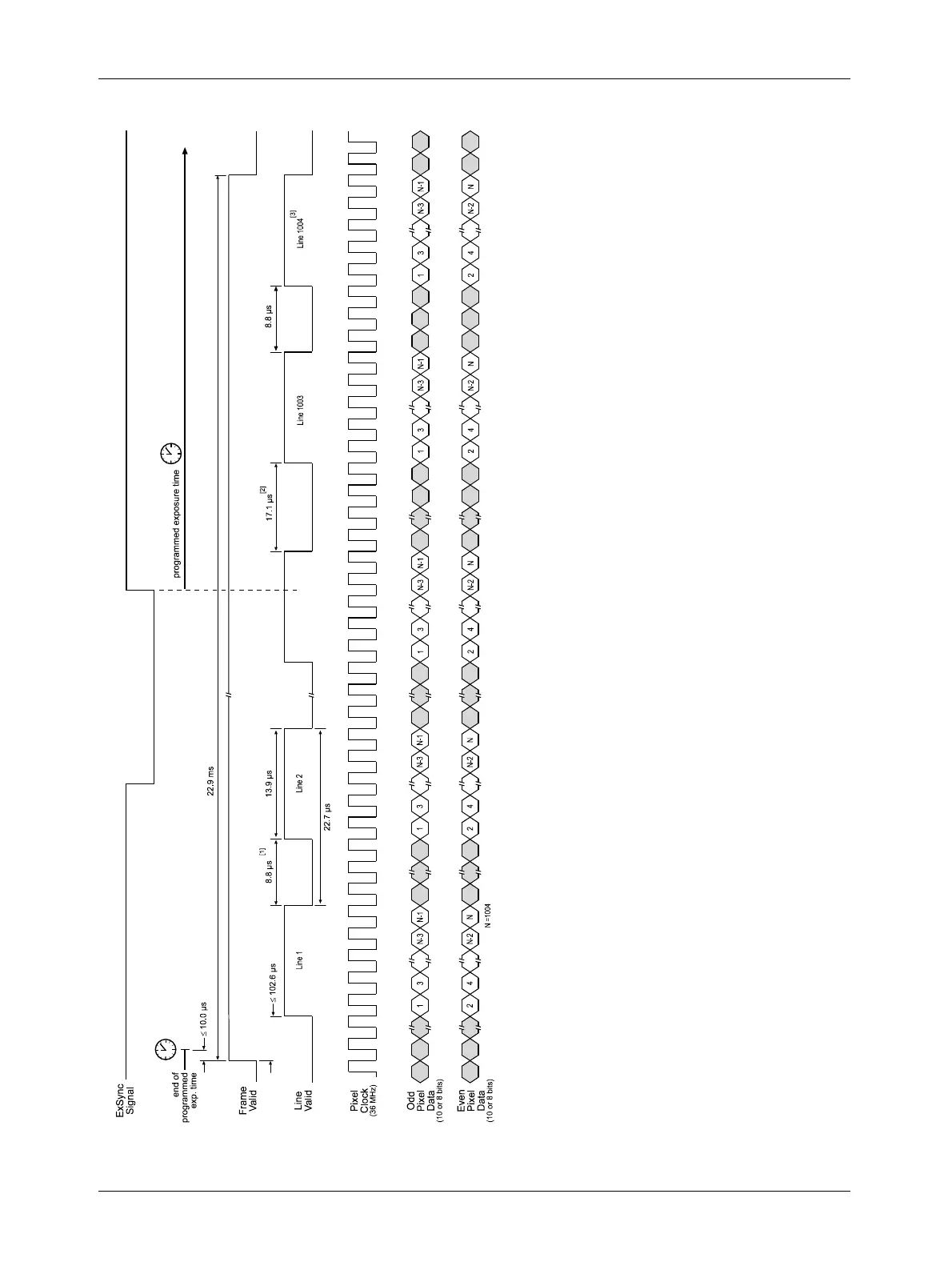

Figure 3: Dual 10 Bit or Dual 8 Bit Output Mode with Programmable Exposure
[1]
The line valid low time is 8.8 µs except as described in note 2 below.
[2]
In the programmable exposure mode, the rise of ExSync starts exposure. If ExSync rises while a frame is being transferred (while frame valid is high), one line valid
low time immediately following the fall of ExSync will be 17.1 µs.
[3]
The diagram assumes that the area of interest (AOI) feature is not being used. With the AOI feature enabled, the number of lines transferred and the number of pixels
in each line could be smaller.
TIMING CHARTS ARE NOT DRAWN TO SCALE
