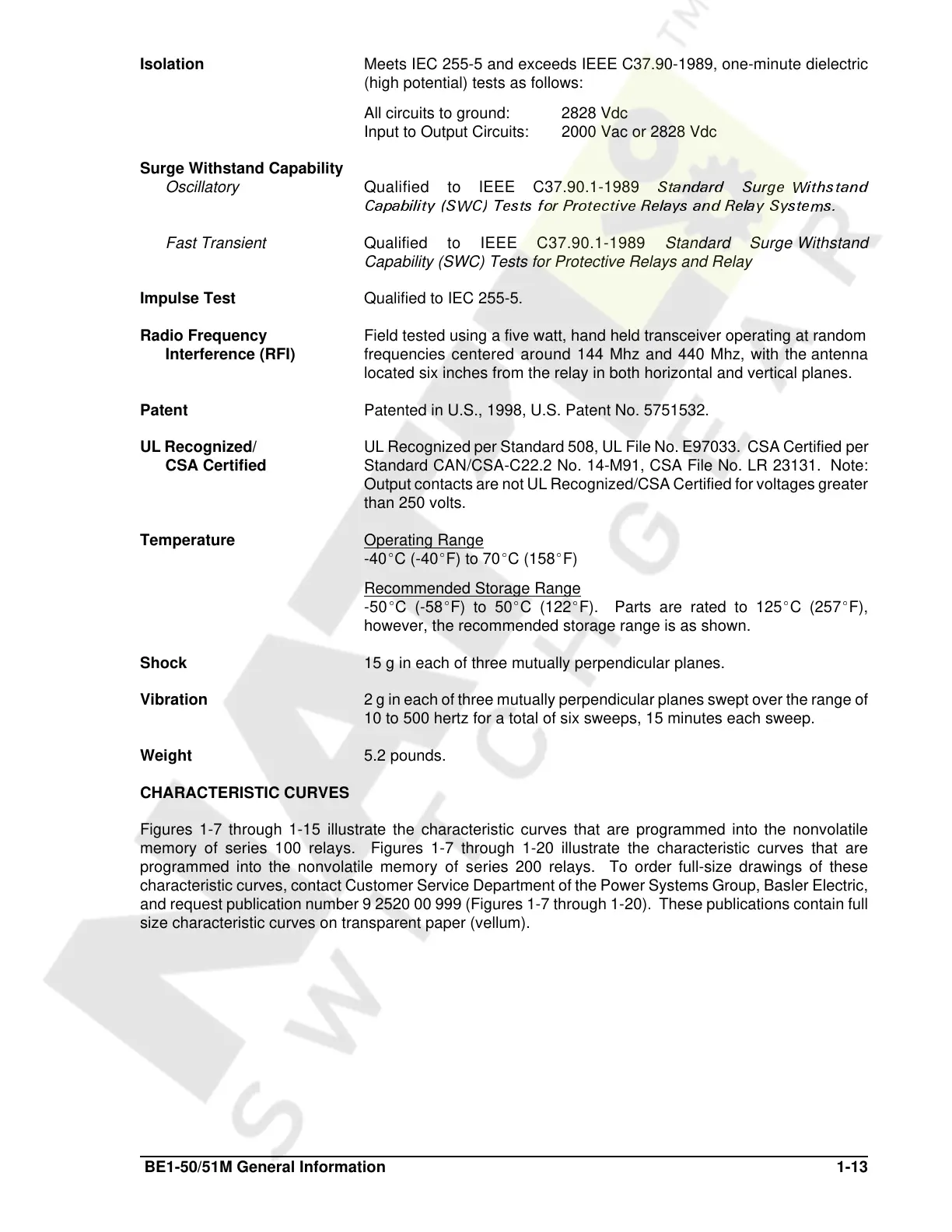

BE1-50/51M General Information 1-13
Isolation
Meets IEC 255-5 and exceeds IEEE C37.90-1989, one-minute dielectric
(high potential) tests as follows:
All circuits to ground: 2828 Vdc
Input to Output Circuits: 2000 Vac or 2828 Vdc
Surge Withstand Capability
Oscillatory
Qualified to IEEE C37.90.1-1989
5VCPFCTF 5WTIG 9KVJUVCPF
%CRCDKNKV[ 59% 6GUVU HQT 2TQVGEVKXG 4GNC[U CPF 4GNC[ 5[UVGOU
Fast Transient
Qualified to IEEE C37.90.1-1989
Standard Surge Withstand
Capability (SWC) Tests for Protective Relays and Relay
Impulse Test
Qualified to IEC 255-5.
Radio Frequency
Field tested using a five watt, hand held transceiver operating at random
Interference (RFI)
frequencies centered around 144 Mhz and 440 Mhz, with the antenna
located six inches from the relay in both horizontal and vertical planes.
Patent
Patented in U.S., 1998, U.S. Patent No. 5751532.
UL Recognized/
UL Recognized per Standard 508, UL File No. E97033. CSA Certified per
CSA Certified
Standard CAN/CSA-C22.2 No. 14-M91, CSA File No. LR 23131. Note:
Output contacts are not UL Recognized/CSA Certified for voltages greater
than 250 volts.
Temperature
Operating Range
-40
(
C (-40
(
F) to 70
(
C (158
(
F)
Recommended Storage Range
-50
(
C (-58
(
F) to 50
(
C (122
(
F). Parts are rated to 125
(
C (257
(
F),
however, the recommended storage range is as shown.
Shock
15 g in each of three mutually perpendicular planes.
Vibration
2 g in each of three mutually perpendicular planes swept over the range of
10 to 500 hertz for a total of six sweeps, 15 minutes each sweep.
Weight
5.2 pounds.
CHARACTERISTIC CURVES
Figures 1-7 through 1-15 illustrate the characteristic curves that are programmed into the nonvolatile
memory of series 100 relays. Figures 1-7 through 1-20 illustrate the characteristic curves that are
programmed into the nonvolatile memory of series 200 relays. To order full-size drawings of these
characteristic curves, contact Customer Service Department of the Power Systems Group, Basler Electric,
and request publication number 9 2520 00 999 (Figures 1-7 through 1-20). These publications contain full
size characteristic curves on transparent paper (vellum).
