5-2 BE1-50/51M - Testing

BE1-50/51M

9876 54 2

TIME INST

CURRENT

SOURCE

INPUT

STOP

TIMER

START

AMPS

TEST SET

12-08-99

D2750-21.vsd

1.0A

CURRENT

LIMITER

TARGET CURRENT

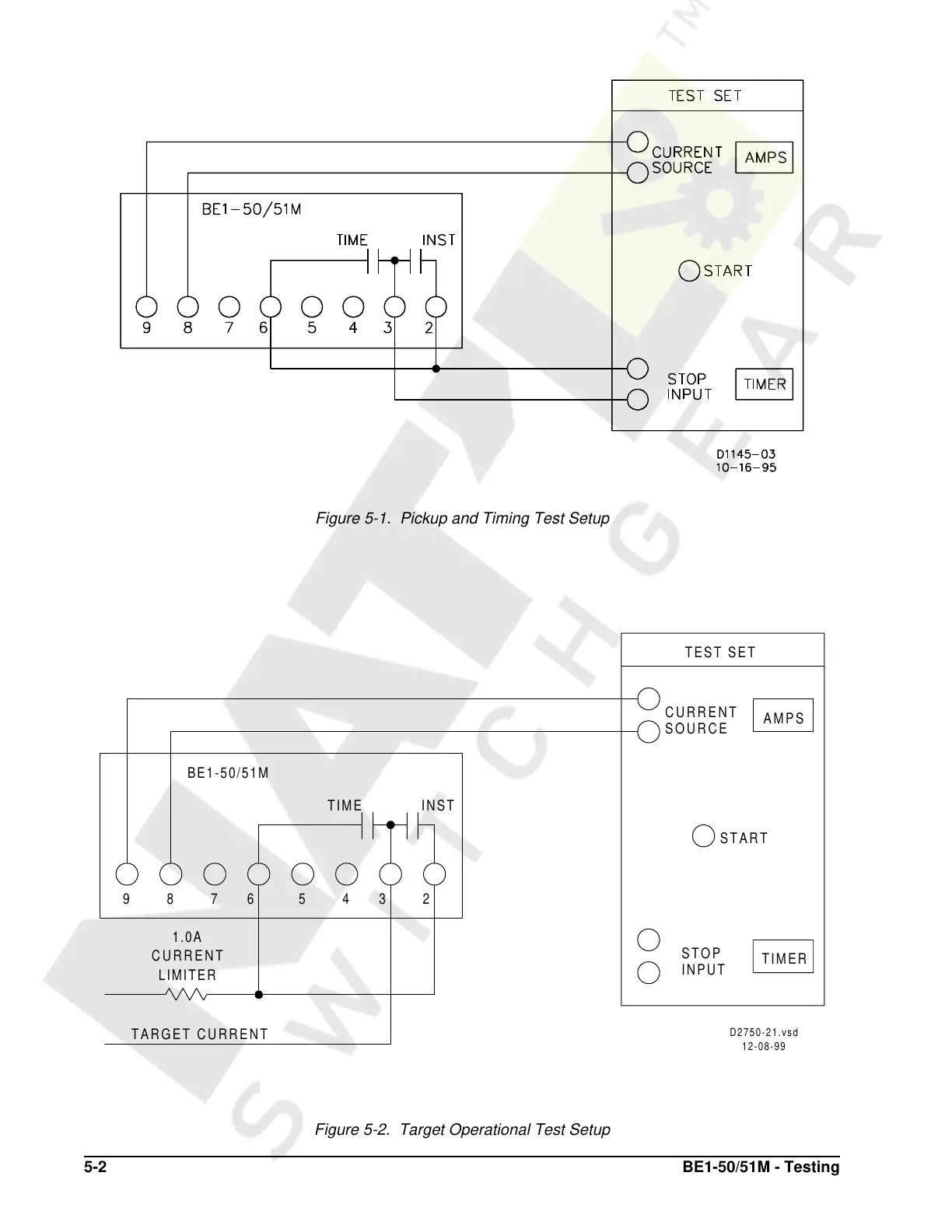

Figure 5-1. Pickup and Timing Test Setup

Figure 5-2. Target Operational Test Setup

Courtesy of NationalSwitchgear.com
