5-6 BE1-50/51M - Testing

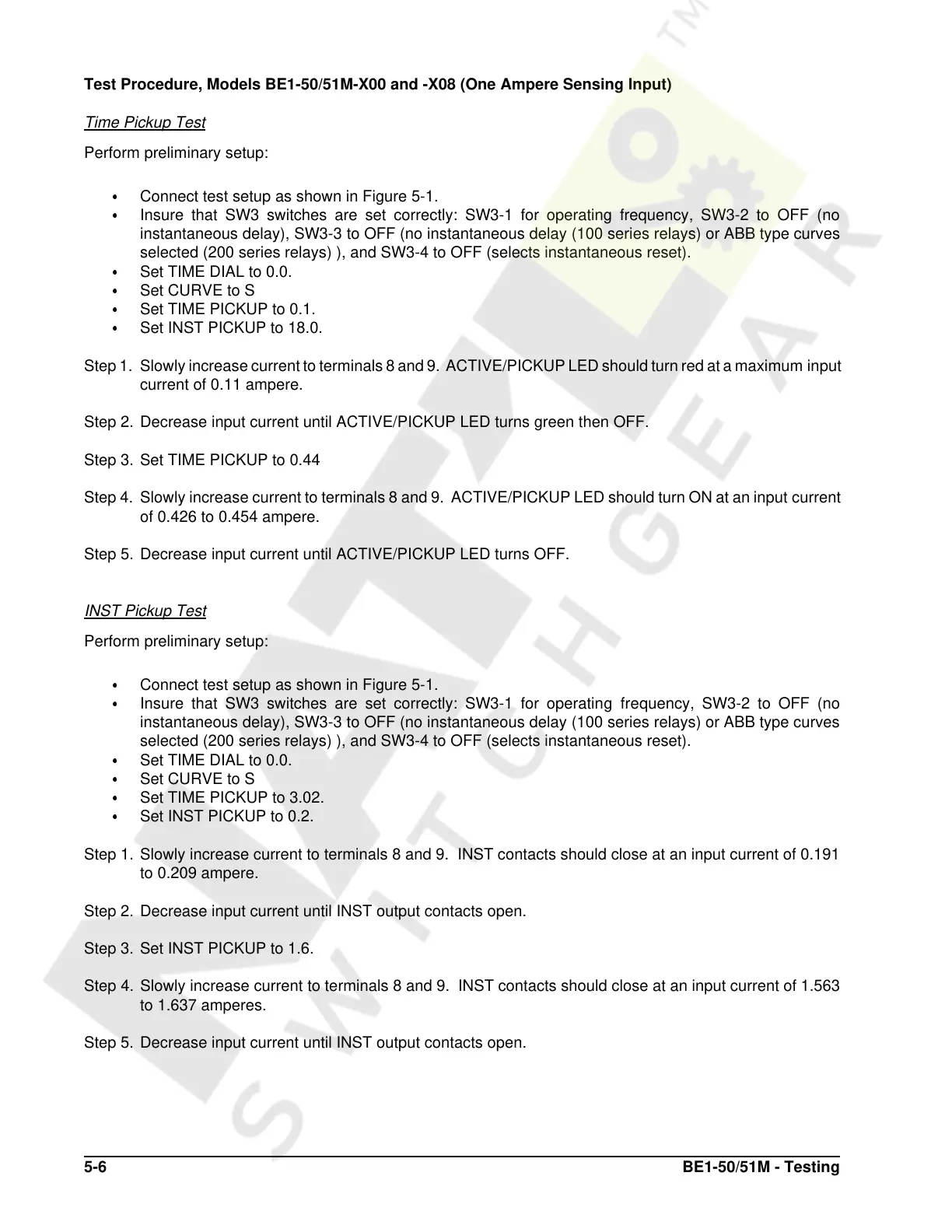

Test Procedure, Models BE1-50/51M-X00 and -X08 (One Ampere Sensing Input)

Time Pickup Test

Perform preliminary setup:

Connect test setup as shown in Figure 5-1.

Insure that SW3 switches are set correctly: SW3-1 for operating frequency, SW3-2 to OFF (no

instantaneous delay), SW3-3 to OFF (no instantaneous delay (100 series relays) or ABB type curves

selected (200 series relays) ), and SW3-4 to OFF (selects instantaneous reset).

Set TIME DIAL to 0.0.

Set CURVE to S

Set TIME PICKUP to 0.1.

Set INST PICKUP to 18.0.

Step 1. Slowly increase current to terminals 8 and 9. ACTIVE/PICKUP LED should turn red at a maximum input

current of 0.11 ampere.

Step 2. Decrease input current until ACTIVE/PICKUP LED turns green then OFF.

Step 3. Set TIME PICKUP to 0.44

Step 4. Slowly increase current to terminals 8 and 9. ACTIVE/PICKUP LED should turn ON at an input current

of 0.426 to 0.454 ampere.

Step 5. Decrease input current until ACTIVE/PICKUP LED turns OFF.

INST Pickup Test

Perform preliminary setup:

Connect test setup as shown in Figure 5-1.

Insure that SW3 switches are set correctly: SW3-1 for operating frequency, SW3-2 to OFF (no

instantaneous delay), SW3-3 to OFF (no instantaneous delay (100 series relays) or ABB type curves

selected (200 series relays) ), and SW3-4 to OFF (selects instantaneous reset).

Set TIME DIAL to 0.0.

Set CURVE to S

Set TIME PICKUP to 3.02.

Set INST PICKUP to 0.2.

Step 1. Slowly increase current to terminals 8 and 9. INST contacts should close at an input current of 0.191

to 0.209 ampere.

Step 2. Decrease input current until INST output contacts open.

Step 3. Set INST PICKUP to 1.6.

Step 4. Slowly increase current to terminals 8 and 9. INST contacts should close at an input current of 1.563

to 1.637 amperes.

Step 5. Decrease input current until INST output contacts open.
