HARDWARE INSTALLATION
HARDWARE INSTALLATION
Overview of the Components (Example Installation)

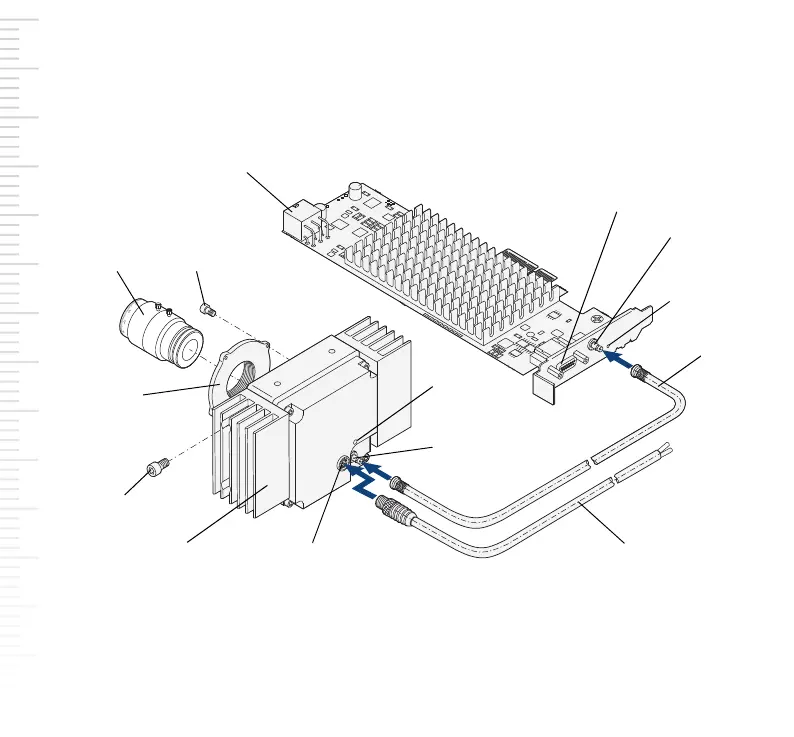

Fig. 1: Example Installation of a Basler boost CXP-12 Camera with a C-mount Lens and a Basler
CXP-12 Interface Card 1C
VO.1 381JG848
RoHS 2011/65/EU
Status
LED
I/O connector
(M8 6-pin)
Micro-BNC
connector
Heat sink
C-mount
C-mount
lens
2 x M4x12
4 x M2.5x6
Power-I/O
cable
CoaXPress
data cable
Micro-BNC
connector
Status
LED
D-Sub Micro-D
connector (15-pin)
PCIe power
connector (6-pin)
