► Read all instructions and safety
precautions for equipment and spray
material before operating any equipment.
► Hearing protection is recommended
for extended use.
ELECTRICAL SAFETY
This tool is double insulated; therefore
no earth wire is required. Always check
that the power supply corresponds to the voltage
on the rating plate.
► If the supply cord is damaged, it must be
replaced by the manufacturer or an
authorized Service Centre in order to avoid a
hazad.
► When using the tool outdoors, only use
extension cables intended for outdoor use. A
suitable rated extension cable of up to 30
metres can be used without loss of power
► Electr
ic safety can be further improved by
using a high sensitivity.
EXTENSION CORD
When using an extension cord, be sure to use
one heavy enough to carry the current your
product will draw. An undersized cord will cause a
drop in line voltage resulting in loss of power and
overheating. If an extension cord is to be used
outdoors, it must be marked with the suffix W-A
after the cord type designation. For example, a
designation of SJTW-A would indicate that
the cord would be appropriate for outdoor use.
For proper size cords see chart g
uide for
extension cord usage.
Warning! Some spray materials contain
chemicals known to the State of California to
cause cancer, birth defects or other reproductive
harm. To reduce your exposure wear appropriate
safety equipment such as face masks, gloves,
and other appropriate protective equipment.
Please review and follow the safety precautions
on the paint container.

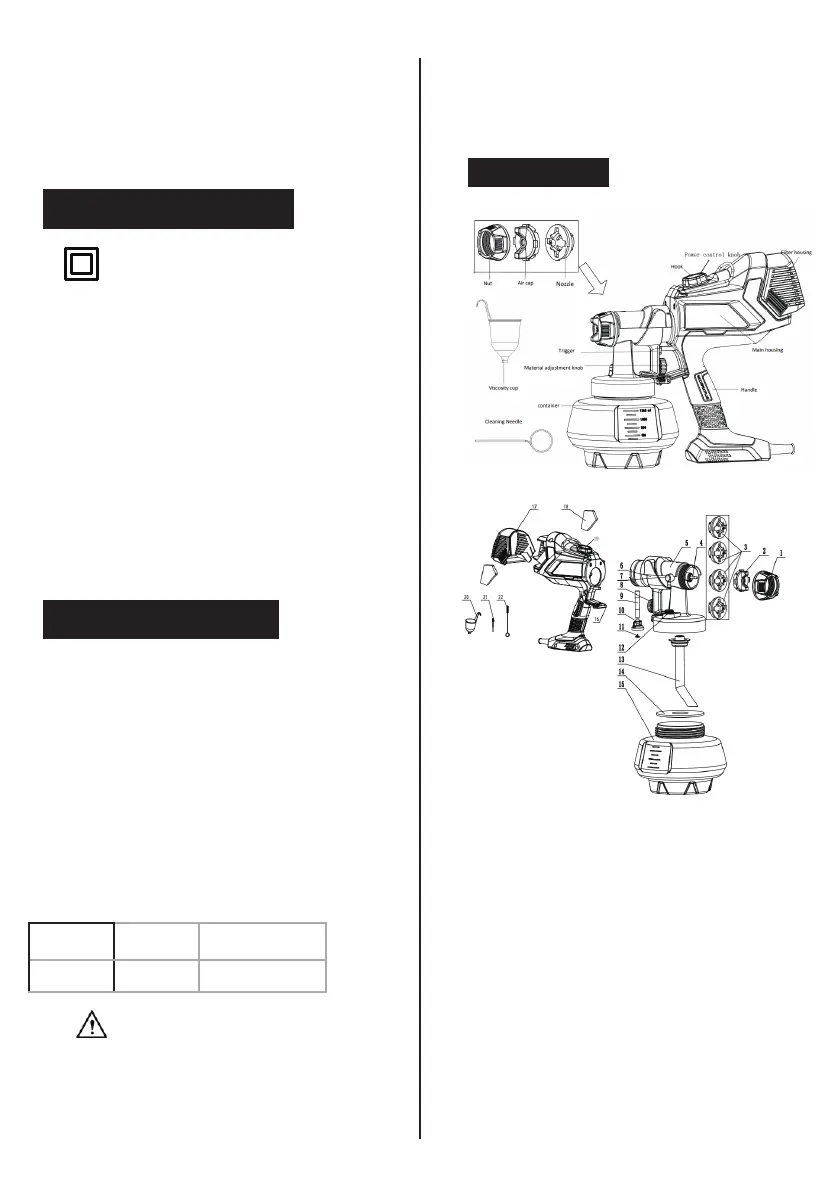

COMPONENTS
1. Nut
2. Air cap
3. Nozzle (1.5mm, 2.0mm, 2.5mm, 3.0mm)
4. Spray tip
5. Spray unit housing
6. Trigger holder
7. Check valve tube seat
8. Trigger
9. Check valve tube
10. Check valve cap
11. Check valve
12. Check valve seat
13. Suction tube
14. Sealing cup
15. Container
