8. Optional Communication Cards

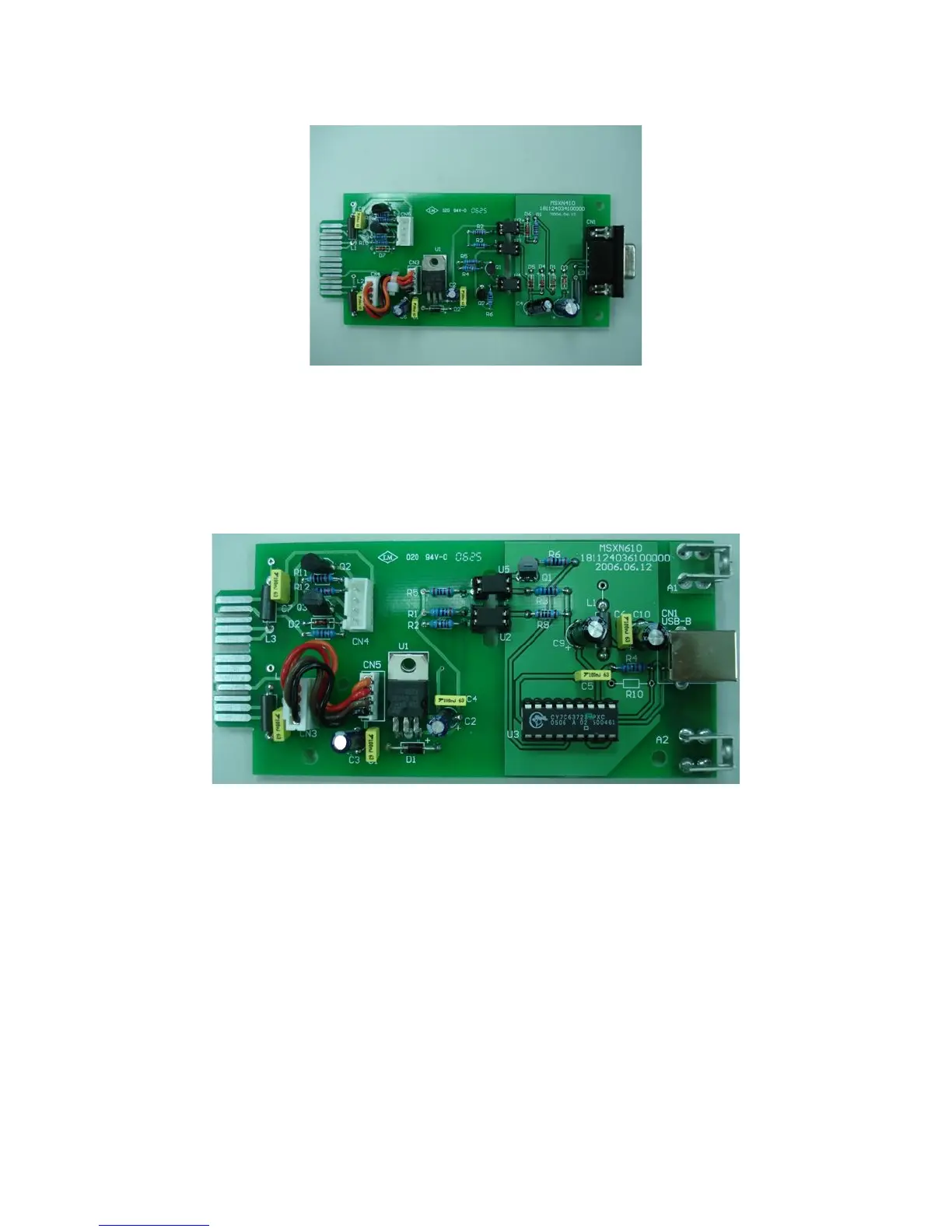

8.1 R2E (second RS-232) card

8.1.1 CN1 is for RS-232 DB9.

8.1.2 For interface settings and pin assignments please refer to section 3.3.1.

8.1.3 Installation Position: Optional Slot

8.2 USE (USB) card

8.2.1 CN1 is for USB.

8.2.2 For the communicaiton protocol definition please refer to section 8.4.2.

8.2.3 Installation Position: Optional Slot
