Battery Backup Power BBP-AR-2000-PSW-ONL - SNMP Cards

39
8.4 SNMP Cards

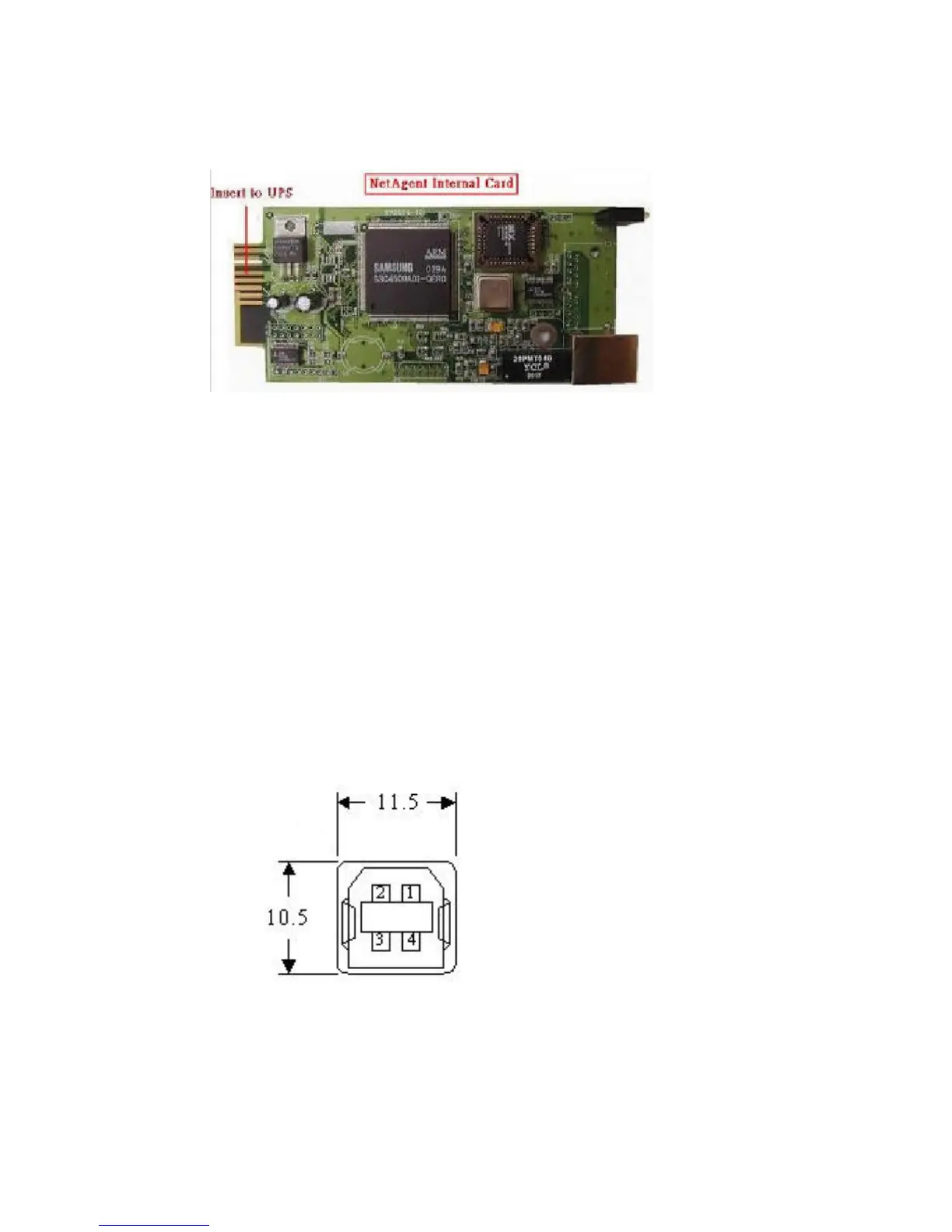

8.4.1 Megatec SNMP card
8.4.1.1 For installation please refer to the user’s manual that came with the card.
8.4.1.2 Installation Position: Optional slot on rear panel
8.4.2 USB
The USB communication protocol definition is as below.
1. Complies with USB version 1.0, 1.5 Mbps.
2. Complies with USB HID version 1.0.
3. Pin Assignments:
1

VCC (+5V)
2  D－
3  D＋
4  Ground
