MVT26
October 2003 Section 3 Page 31
Item Qty Part No. Description Notes
◊ 1 78934 Crankshaft Assembly K150 II Only
◊ 1 79442 Crankshaft Assembly K180 II Only
1 1 68587 Bushing
2 1 N4366 Dowel Screw
3 1 N108 Spring Washer
4 1 N57 Hex Nut
5 3 4220 Spacers
6 1 N18310 Circlip
7 1 N423 Circlip

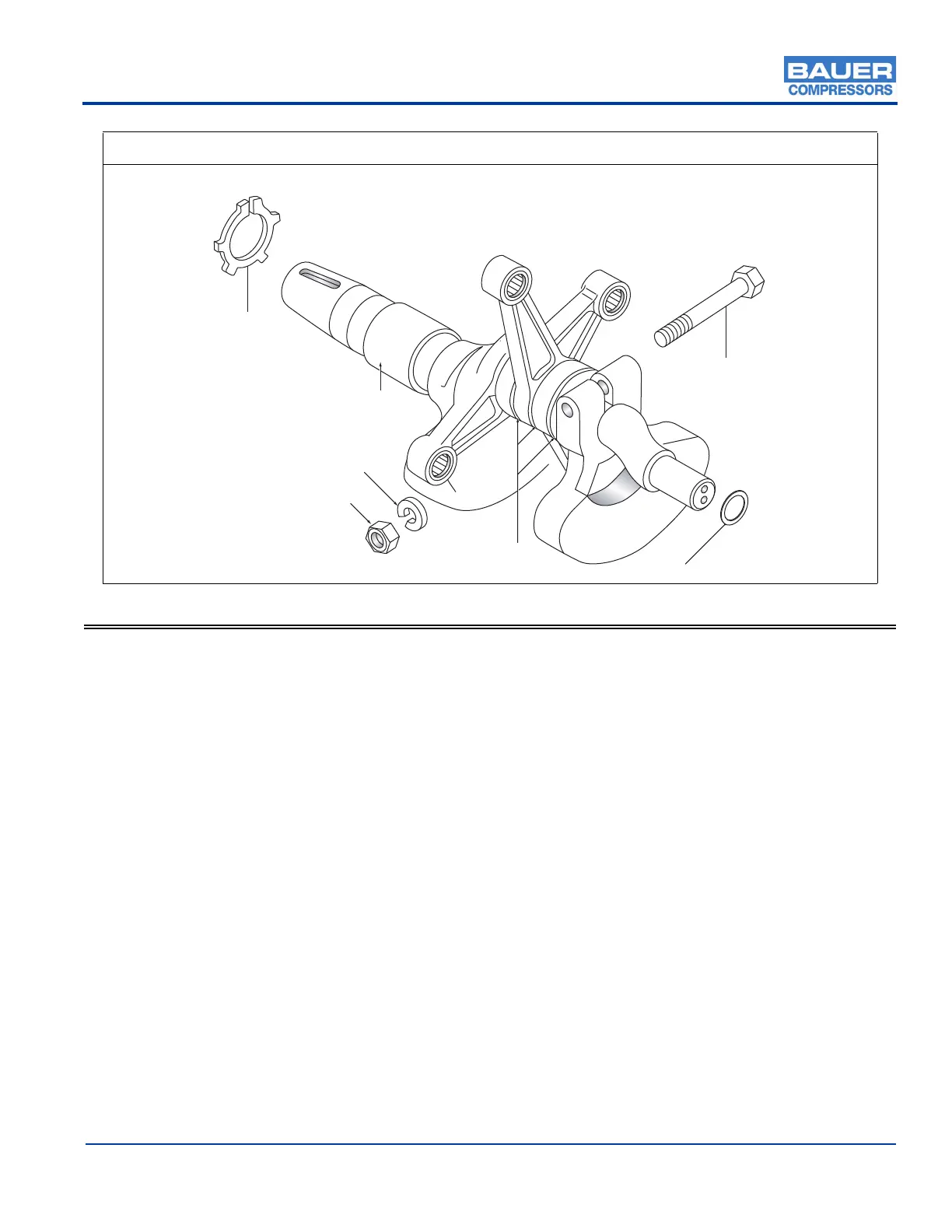

Figure 3.1-18 Complete Crankshaft Assembly
1
2
3
4
5
7
6
