Bauer Compressors MAXI VERTICUS - Page 33

MNL- 0345
Page 32 Section 3 Base Edition
Item Qty Part No. Description Notes
◊ 1 79420 1st Stage Piston and Cylinder Assembly120mm Dia
1 1 79017 Cylinder 120mm Dia
2 1 N2621 O-ring
3 4 N26036 Stud
4 1 79720 Piston Assembly 120 mm Dia
5 1 79719 Piston
6 1 N2930 Pin, Piston
7 2 N484 Ring, Retaining
8 1 N2963 Piston Ring Set 120mm Dia

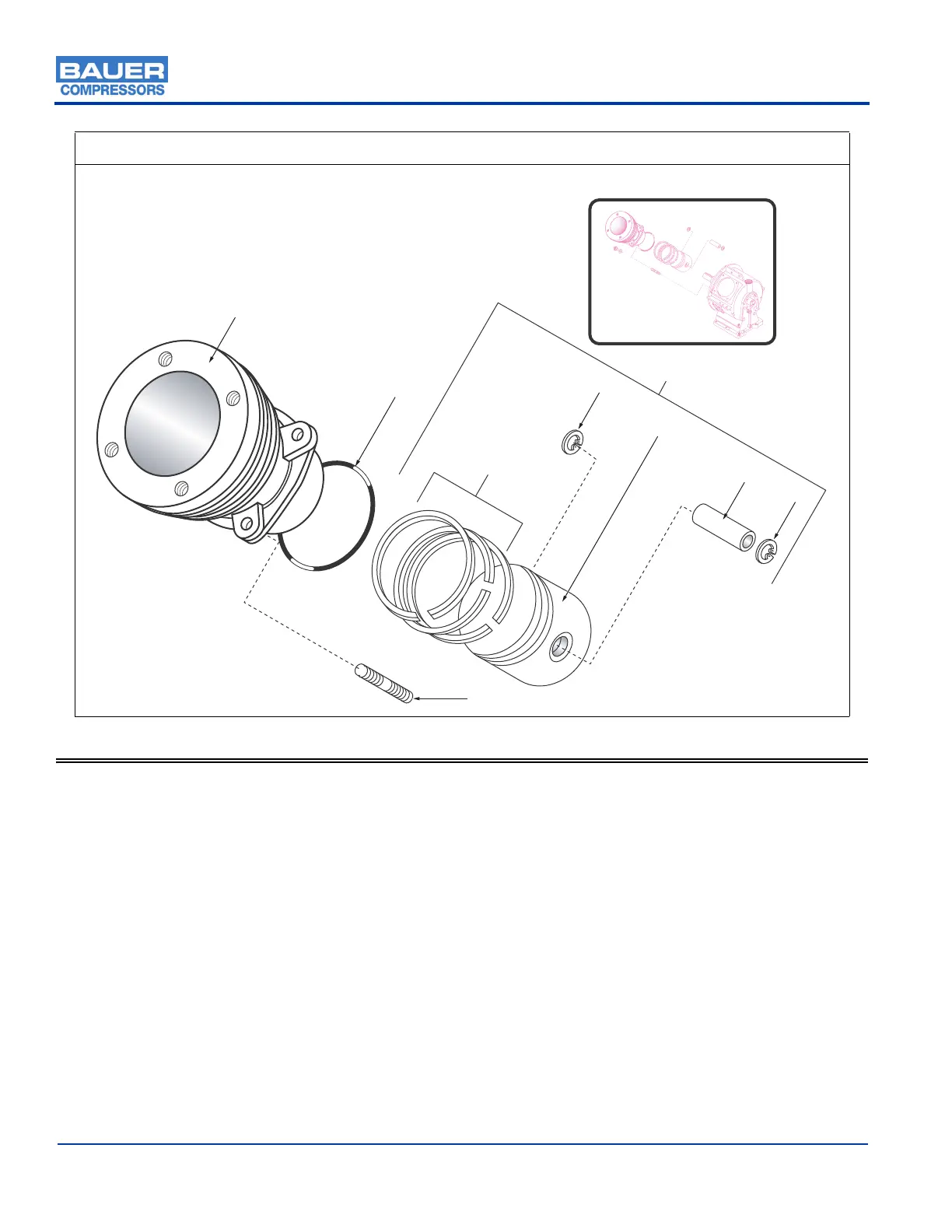

Figure 3.1-19 K150II 1st Stage Piston and Cylinder
1
2
3
8
5
6
7
7
4
