MVT26
October 2003 Section 3 Page 33
Item Qty Part No. Description Notes
◊ 1 79704 1st Stage Piston and Cylinder Assembly130 mm Dia
1 1 79703 Cylinder 130 mm Dia
2 1 N2621 O-ring
3 4 N26036 Stud
4 1 79717 Piston Assembly 130 mm Dia
5 1 79718 Piston
6 1 N4109 Pin, Piston
7 2 N484 Ring, Retaining
8 1 N4642 Piston Ring Set 130 mm Dia

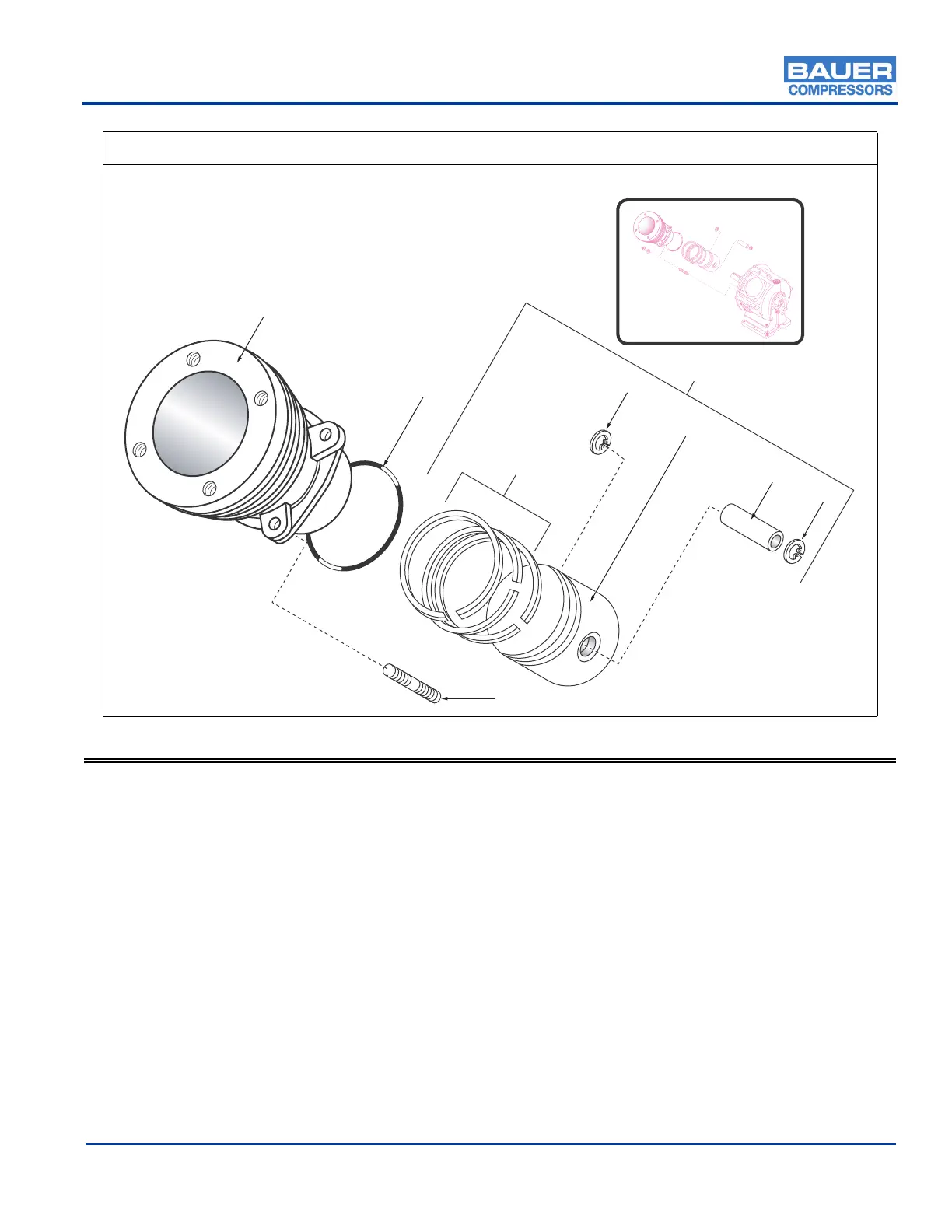

Figure 3.1-20 K180II 1st Stage Piston and Cylinder
1
2
3
8
5
6
7
7
4
