MVT26
October 2003 Section 3 Page 39
Item Qty Part No. Description Notes
◊ 1 79180 4th Stage Cylinder Assembly
1 1 078043 Piston and Sleeve Assembly (See 3.1-24)
2 1 76754 Cylinder
3 1 N7063 O-ring
4 4 N370 Self Locking Hex Nut
5 4 N58 Washer
6 4 N17462 Stud
7 1 79632 Guide Cylinder
8 1 N3731 O-ring
◊ 1 070012 Piston Assembly Items 9, 10 and 11
9 1 60087 Guide Piston
10 1 N15409 Piston Pin
11 2 N1665 Circlip

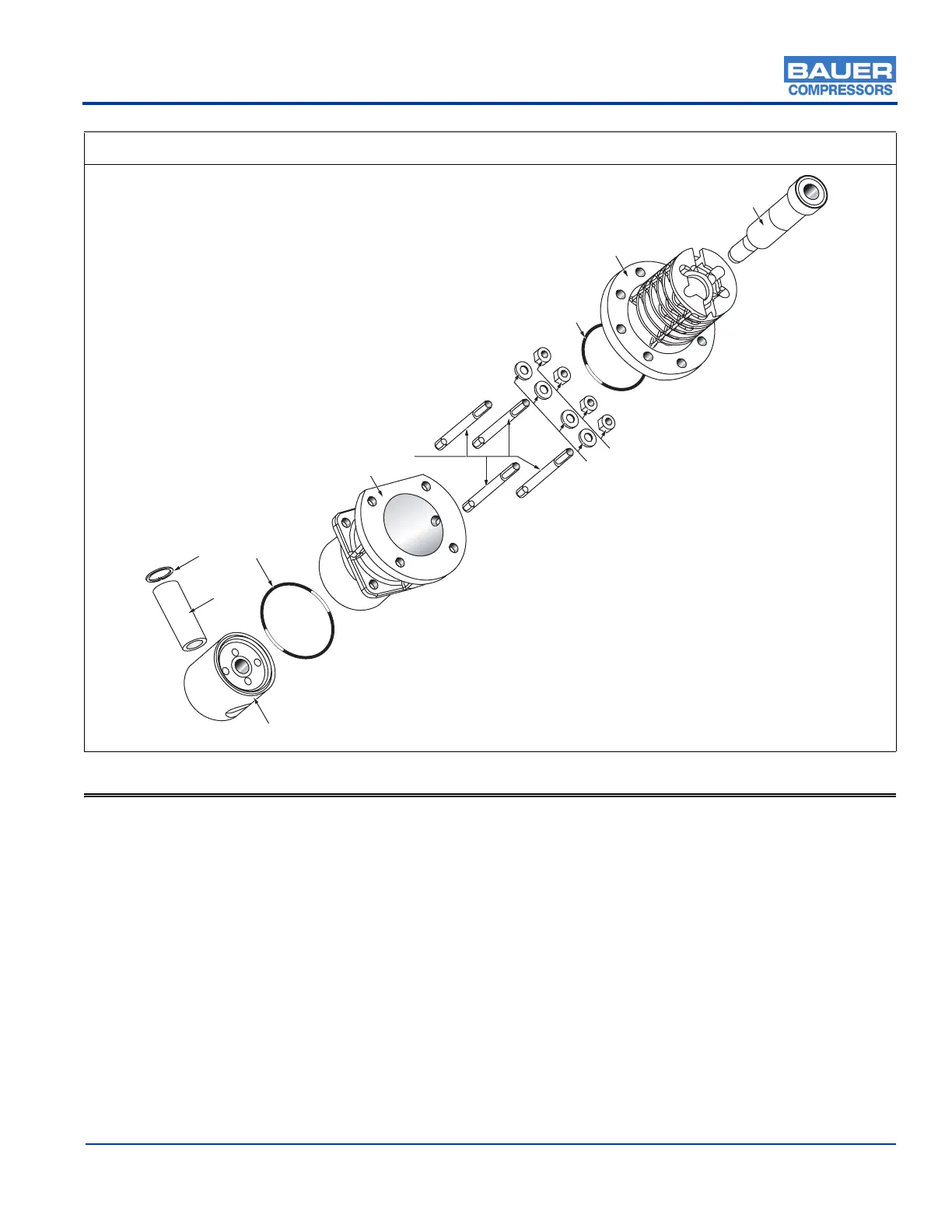

Figure 3.1-23 4th Stage Piston and Cylinder Assembly
1
2
3
4
5
6
7
8
9
10
11
