Item Qty Part No. Description Notes
◊ 1 078043 Piston and Sleeve Assembly
1 † … Piston Available only with 078043
2 1 N23755 O-ring
3 † … Piston Sleeve Available only with 078043
4 1 N2320 O-ring
5 † … Piston Ring Set Available only with 078043

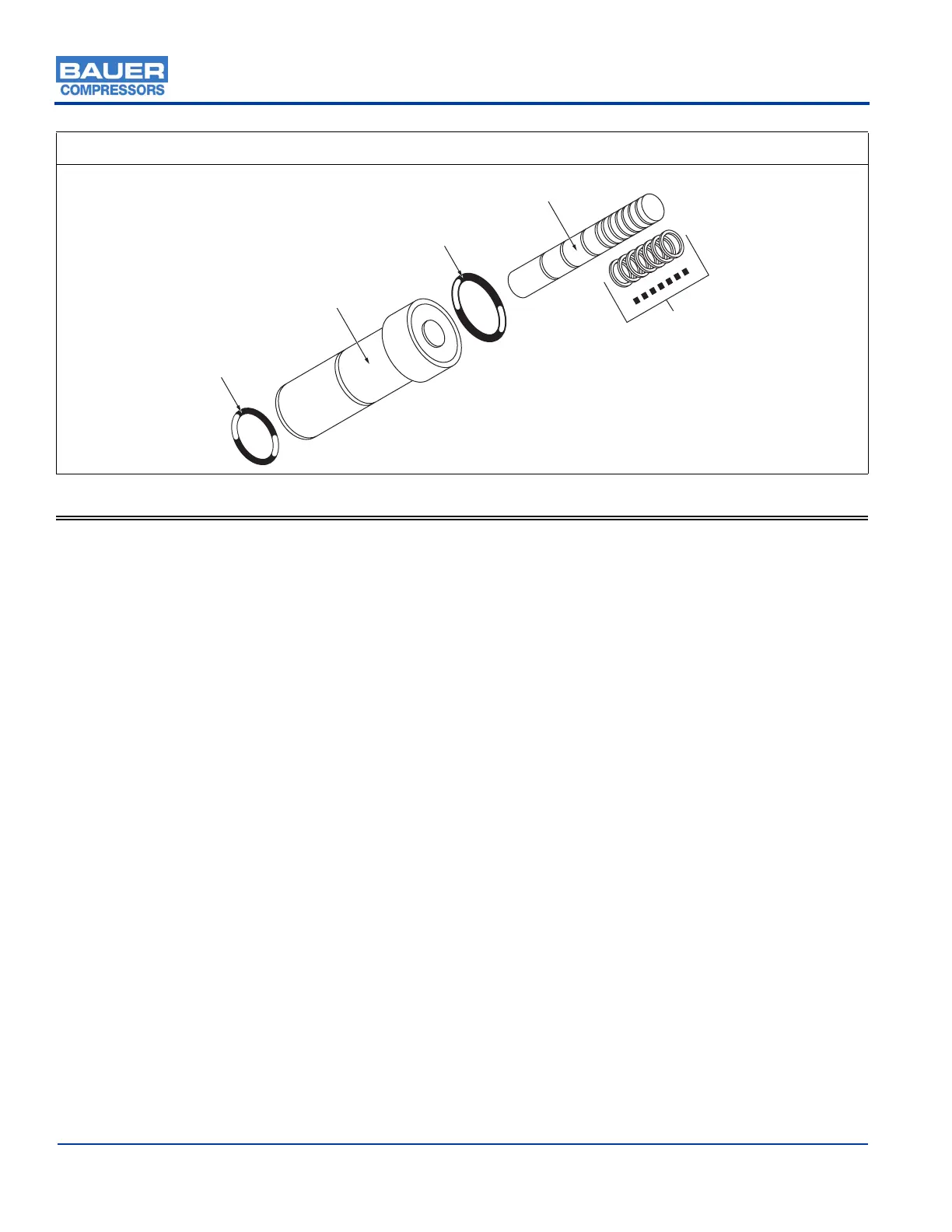

Figure 3.1-24 4th Stage Piston and Sleeve Assembly
1
2
3
4
5
