MVT26
October 2003 Section 3 Page 43
Item Qty Part No. Description Notes
◊ 1 068602 3rd Stage Valve Head Assembly
1 1 60583 3rd Stage Valve Head
2 6 SCR-0180 Socket Head Cap Screw M8x35
3 1 N15273 Valve, Inlet
4 1 N15274 Valve, Discharge
5 2 56668 Gasket, Valve
6 2 56183 Cap, Valve
7 2 N3997 O-ring
8 1 62924 Press Pad
9 2 N4190 Stud M10x45
10 2 WAS-0031 Washer, Flat 10mm
11 2 NUT-0128 Nut, Hex Lock M10

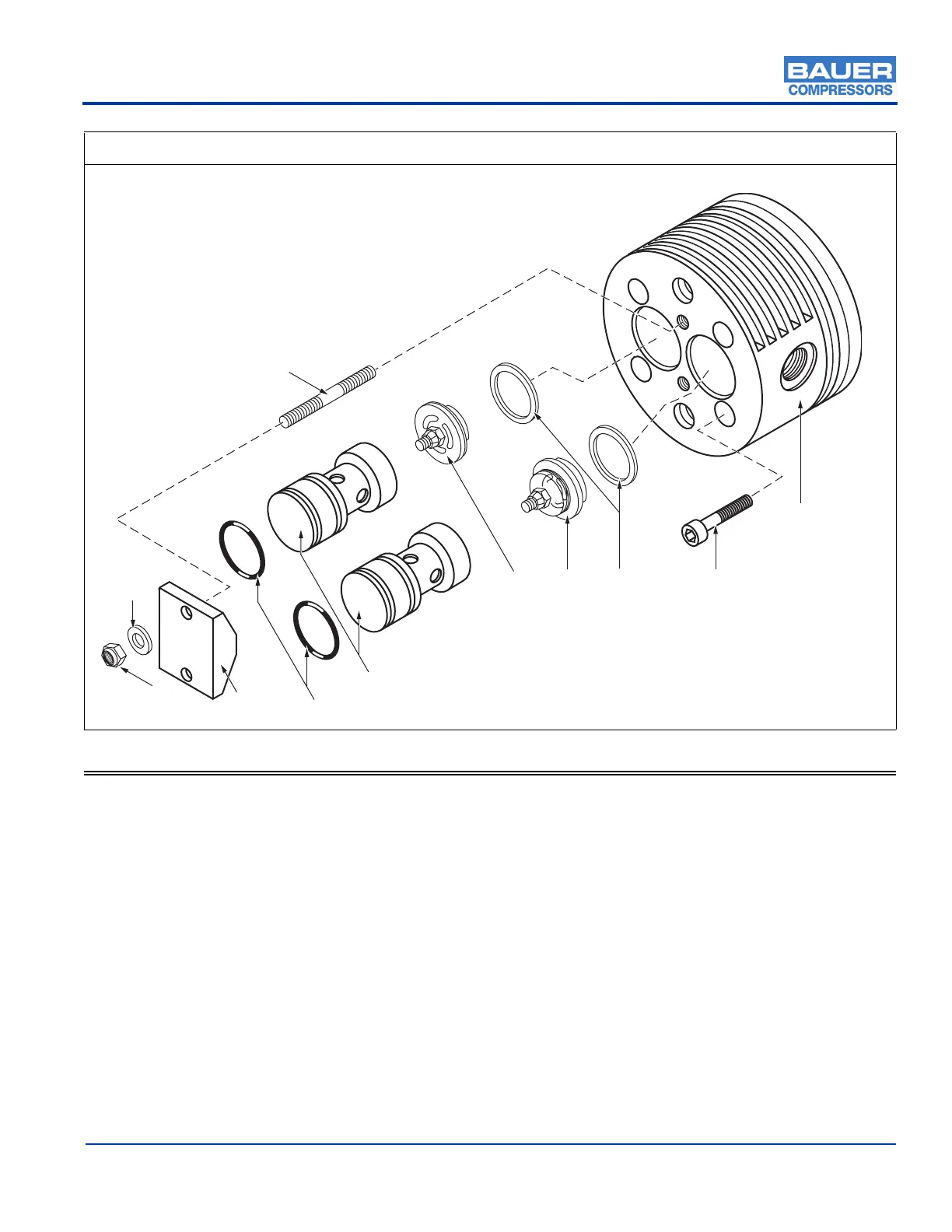

Figure 3.1-27 3rd Stage Valve Head Assembly
AUS
EIN
1
2
5
4
6
7
8
9
10
3
11
