MNL- 0345
Page 42 Section 3 Base Edition
Item Qty Part No. Description Notes
◊ 1 070026 2nd Stage Valve Head Assembly
1 1 60583 2nd Stage Valve Head
2 6 SCR-0180 Socket Head Cap Screw M8x35
3 1 N4067 Valve, Inlet
4 1 N4068 Valve, Discharge
5 2 56668 Gasket, Valve
6 2 56183 Cap, Valve
7 2 N3997 O-ring
8 1 62924 Press Pad
9 2 N4190 Stud M10x45
10 2 WAS-0031 Washer, Flat 10mm
11 2 NUT-0128 Nut, Hex Lock M10

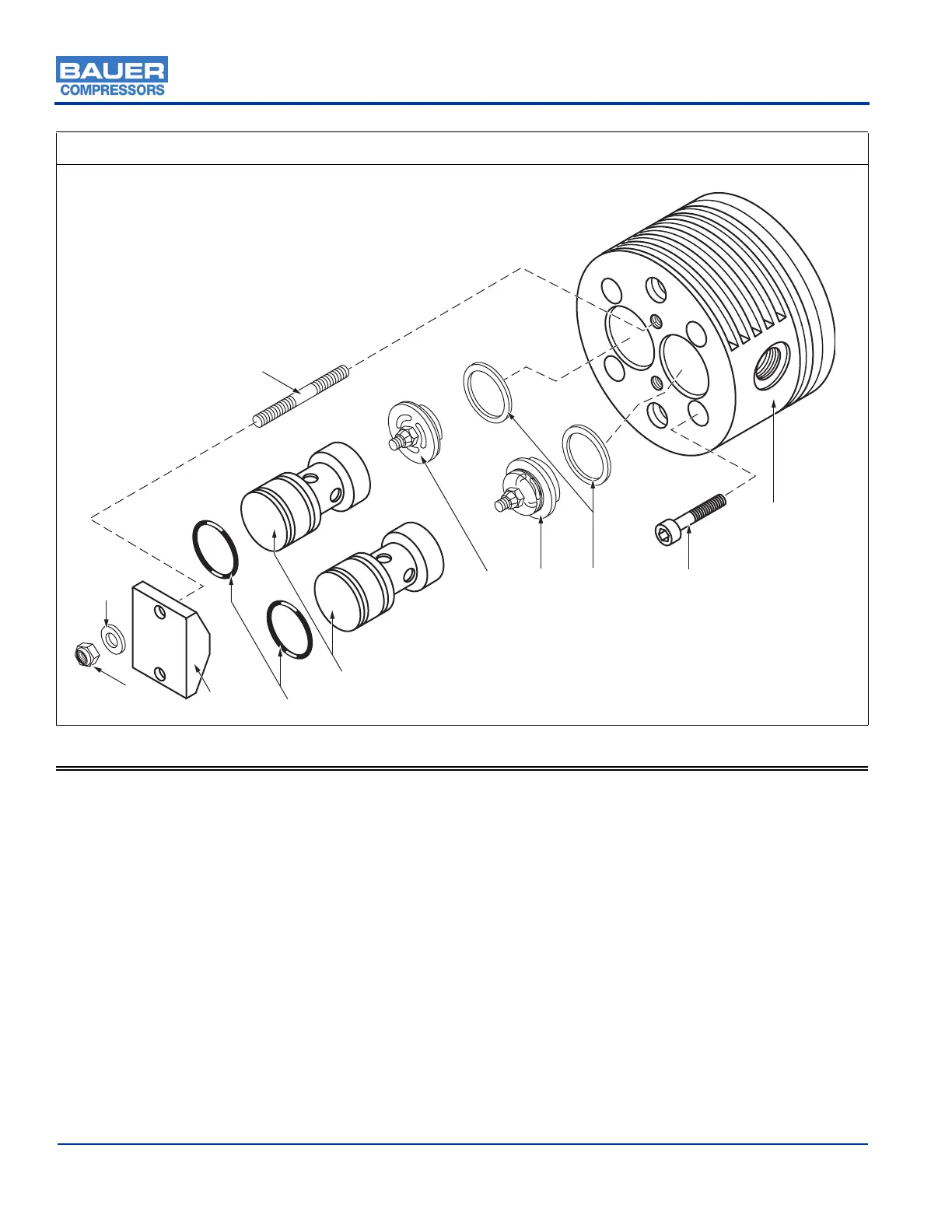

Figure 3.1-26 2nd Stage Valve Head
AUS
EIN
1
2
5
4
6
7
8
9
10
3
11
