Bauer Compressors MAXI VERTICUS - Page 50

MVT26
October 2003 Section 3 Page 49
Item Qty Part No. Description Notes
◊ 1 79626 Cooling System Assembly
1 1 79885 1st Stage Intercooler
2 1 79927 2nd Stage Intercooler
3 1 79929 3rd Stage Intercooler
4 1 79925 Aftercooler
5 4 79637 Mount
6 12 6069-M Clamp
7 12 N15414 Countersunk Screw
816N58 Washer
9 14 N108 Lock Washer
10 12 N370 Self Locking Hex Nut
11 2 75496 Bushing

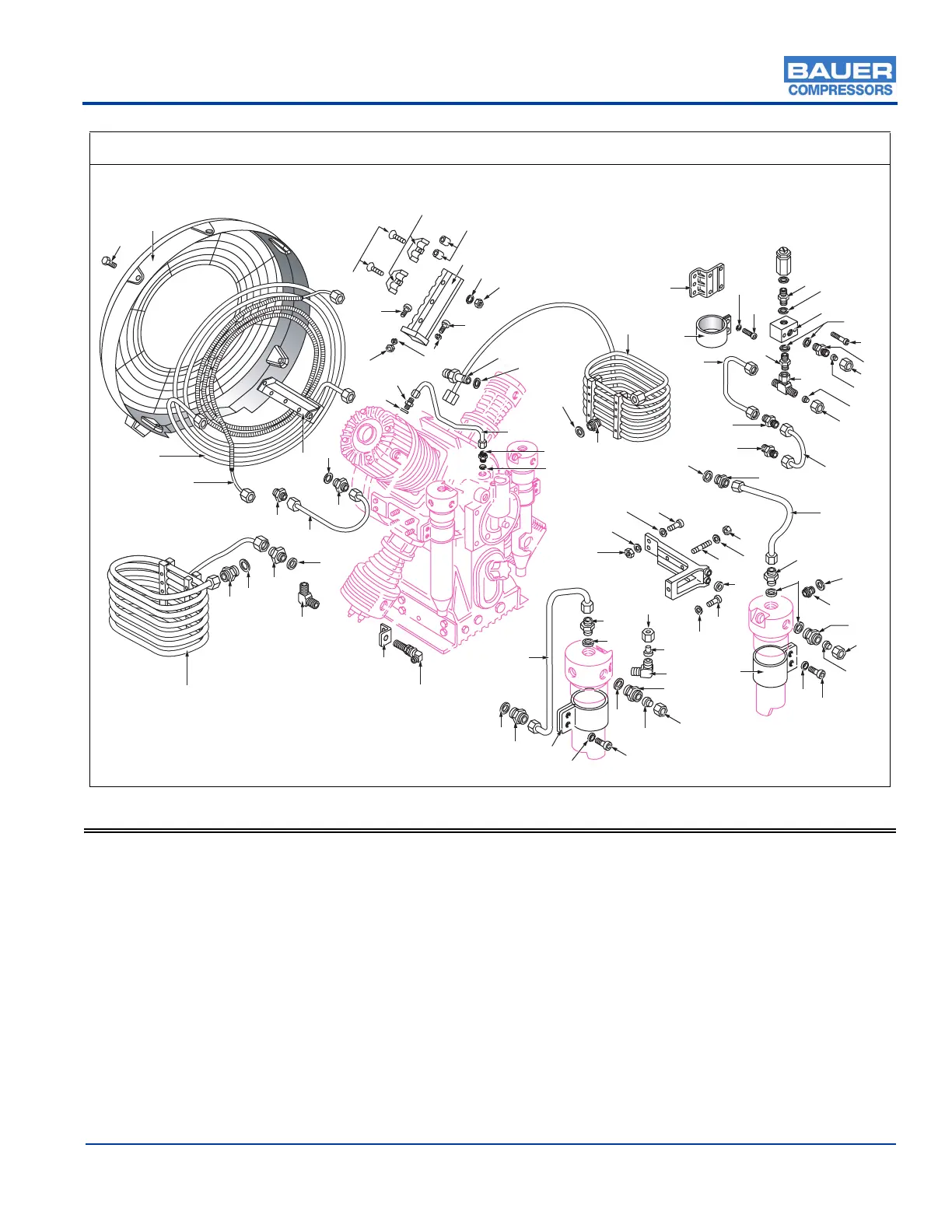

Figure 3.1-33 K150-180 II Cooling System Assembly
