MNL- 0345
Page 48 Section 3 Base Edition
Item Qty Part No. Description Notes
◊ 1 077388 3rd Stage Interfilter Assembly
1 † … Filter Housing Available only with 077388
2 † … Filter Head Available only with 077388
3 1 13937 Collar, Threaded Knurled
4 1 12784 Plate, Vortex
5 1 12785 Cone, Baffle
6 1 12786 Screw, Center
7 1 N2726 Element, Filter
8 1 N3556 O-ring
9 1 76613 Tube and Baffle
10 1 N1316 Gasket, Copper
11 1 N20215 Fitting
N.S. 1 VAL-0169 Safety Valve

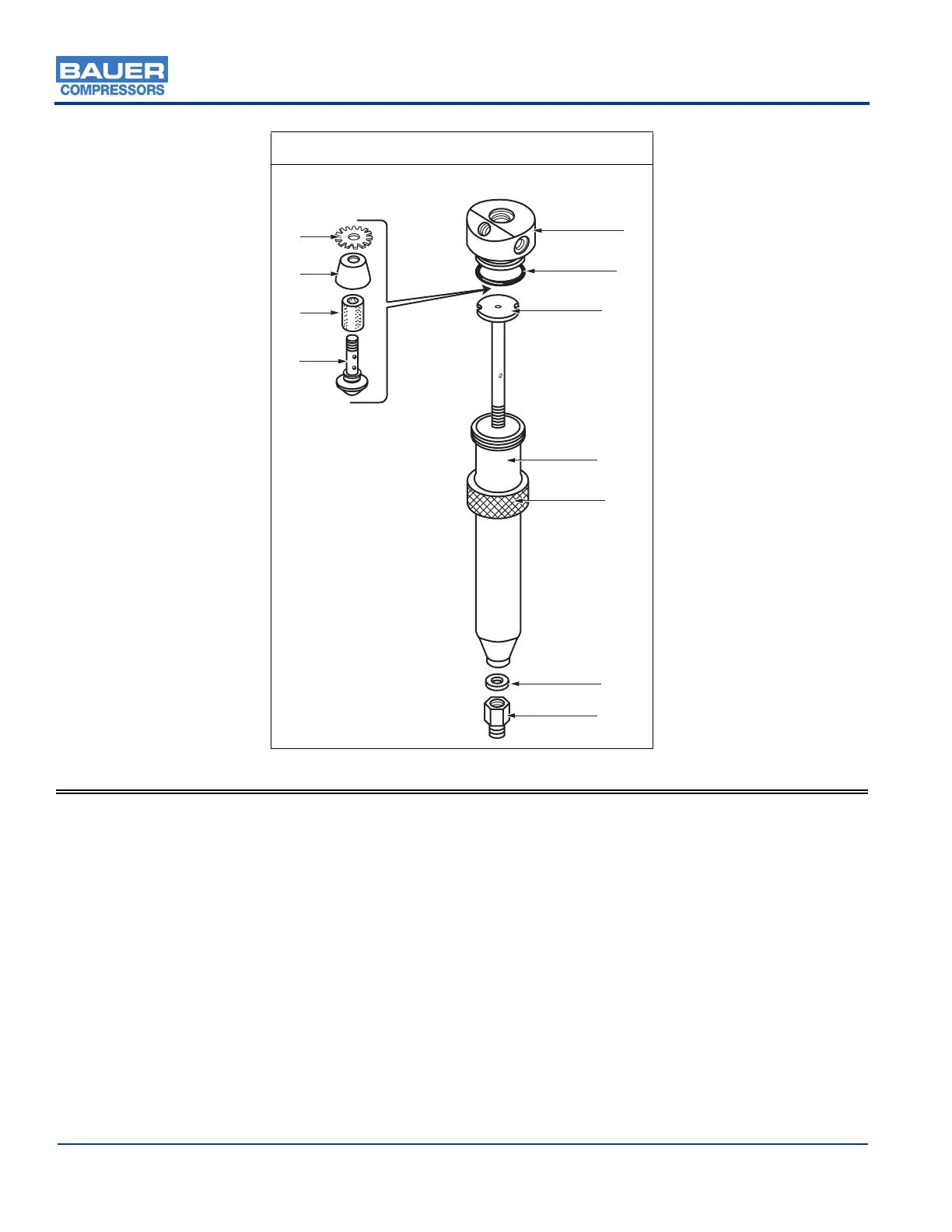

Figure 3.1-32 3rd Stage Interfilter Assembly
2
8
9
1
3
10
11
4
5
7
6
