Page 14 For technical questions, please call 1-888-866-5797. Item 59583
SAFETY OPERATION MAINTENANCESETUP
Maintenance and Servicing
Procedures not specifically explained in this manual must
be performed only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch of the tool off, remove the Safety Key, and unplug the tool
from its electrical outlet before performing any procedure in this section.
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE:
Do not use damaged equipment. If abnormal noise or vibration
occurs, have the problem corrected before further use.
Cleaning, Maintenance, and Lubrication
1. BEFORE EACH USE, inspect the general
condition of the tool. Check for:
• loose hardware,
• misalignment or binding of moving parts,
• cracked or broken parts,
• damaged electrical wiring, and
• any other condition that may
affect its safe operation.
2. AFTER USE, wipe external surfaces
of the tool with clean cloth.
3. Periodically, wear ANSI-approved safety goggles
and NIOSH-approved breathing protection and blow
dust out of the motor area using dry compressed air.
4. CAUTION! If power tool is
damaged, it must be repaired only by
a qualified service technician.

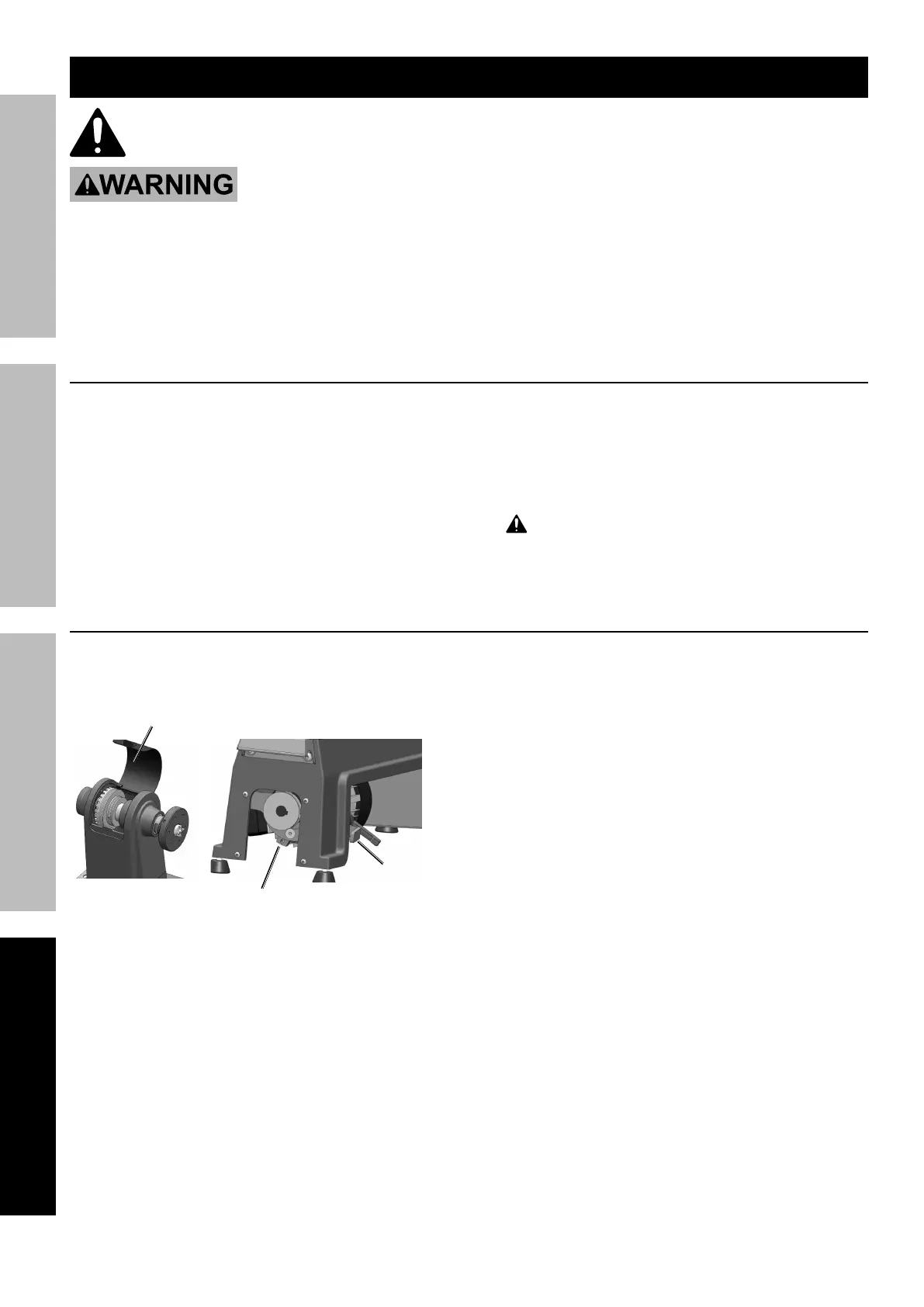

Belt Replacement
1. Open Belt Access Door and Belt Pulley Hatch,
then loosen Motor Position Lock and raise Motor
Tension Lever in order to de-tension the Belt.
Belt Access Door
Pulley Hatch Opening
Tension Lever
2. Move Belt into smallest Motor Pulley
and largest Spindle Pulley.
3. While holding Spindle in place using the Spindle
Wrench, remove Screw from the Handwheel
and unthread Handwheel from Spindle.
4. Remove Belt by sliding it off of Motor Pulley
and up past the edge of the Spindle Pulley.
5. Reverse the above process to install new belt.
