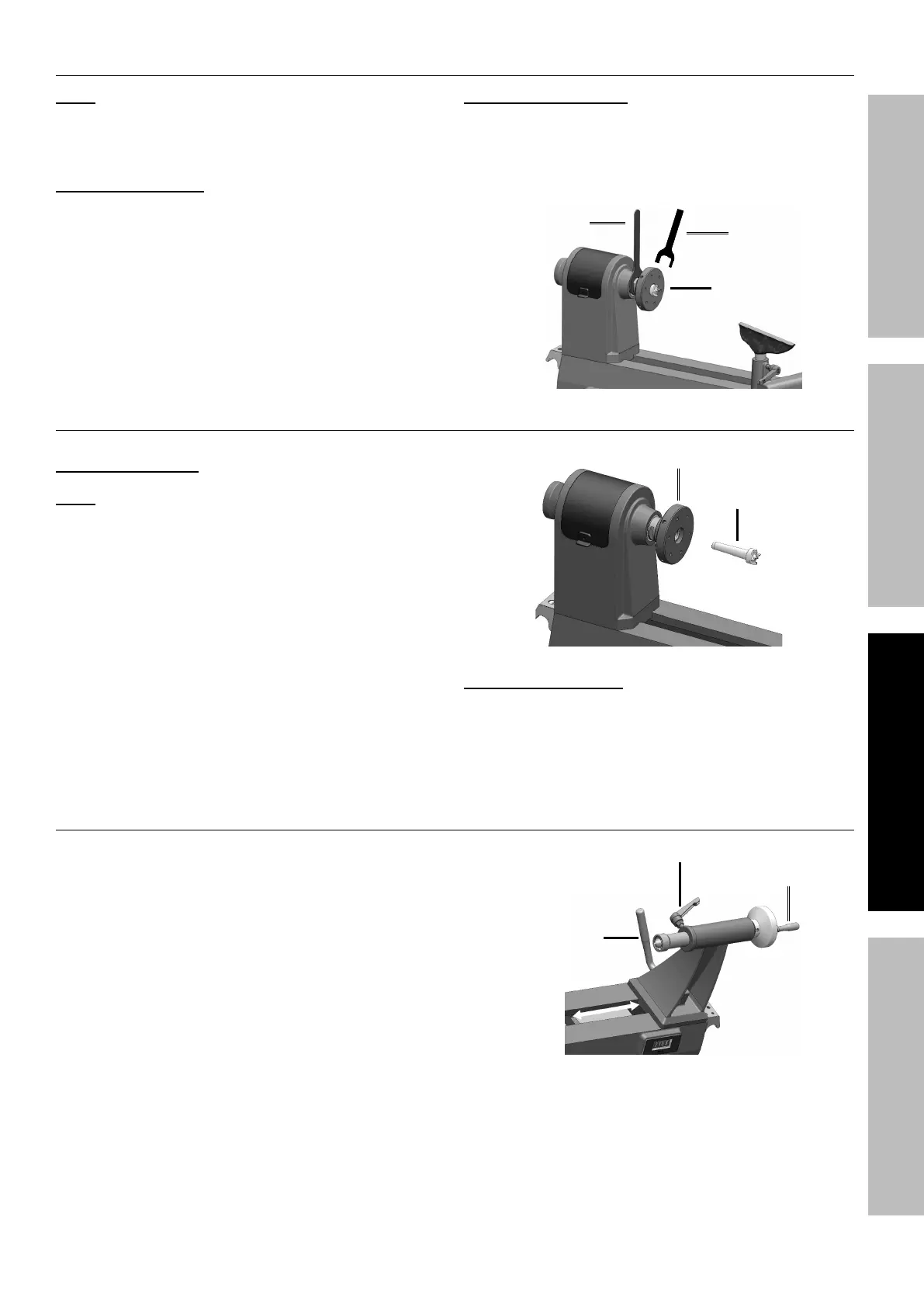

Page 9For technical questions, please call 1-888-866-5797.Item 59583
SAFETYOPERATIONMAINTENANCE SETUP
Assembling Faceplate
Note: The Faceplate is used for turning
bowls and plates. When installing Faceplate,
mount the workpiece onto Faceplate prior to
installing Faceplate on the Headstock.
To Install Faceplate:
1. Thread Faceplate (35) onto Spindle
by turning it clockwise.
2. Hold Spindle in place with Wrench (77).
Place second Wrench (77) on flats of
Faceplate and turn to tighten Faceplate.
3. Tighten two Set Screws (34) on
Faceplate with Hex Wrench (78).
To Remove Faceplate:
1. Loosen the two Faceplate Set Screws.
2. Hold Spindle in place with Wrench (77), while
loosening Faceplate with second Wrench (77).
Wrench (77)
Wrench (77)
Faceplate (35)
Installing/Removing Spur Center
Install Spur Center:
Note: Spur Center can be used with or
without Faceplate mounted to spindle.
1. Make sure the mating surfaces of both the Spur
Center (36) and Spindle are clean. Use an acetone-
moistened cloth to remove any other debris, oil, etc.
2. Drive Spur Center into the workpiece, using
a rubber mallet or a piece of scrap wood.
3. Push Spur Center into the Spindle.
Spur (36)
Faceplate
Remove Spur Center:
1. Hold Spur Center to prevent it from falling. Use a
rag to protect your hand from the sharp edges.
2. Insert Knockout Rod through the spindle
hole to tap out the Spur Center.
Tailstock Adjustment
1. Loosen the Tailstock Locking Lever (48) and
slide Tailstock (39) along the lathe bed into the
desired position. Retighten Locking Lever.
2. Loosen the Quill Lock (40) just enough to unlock
the Quill (38). Turn Handwheel (43) clockwise
to move Quill forward. Turn counterclockwise
to retract Quill. Retighten Quill Lock.
Quill Lock (40)
Handwheel (43)
Tailstock Locking
Lever (48)
