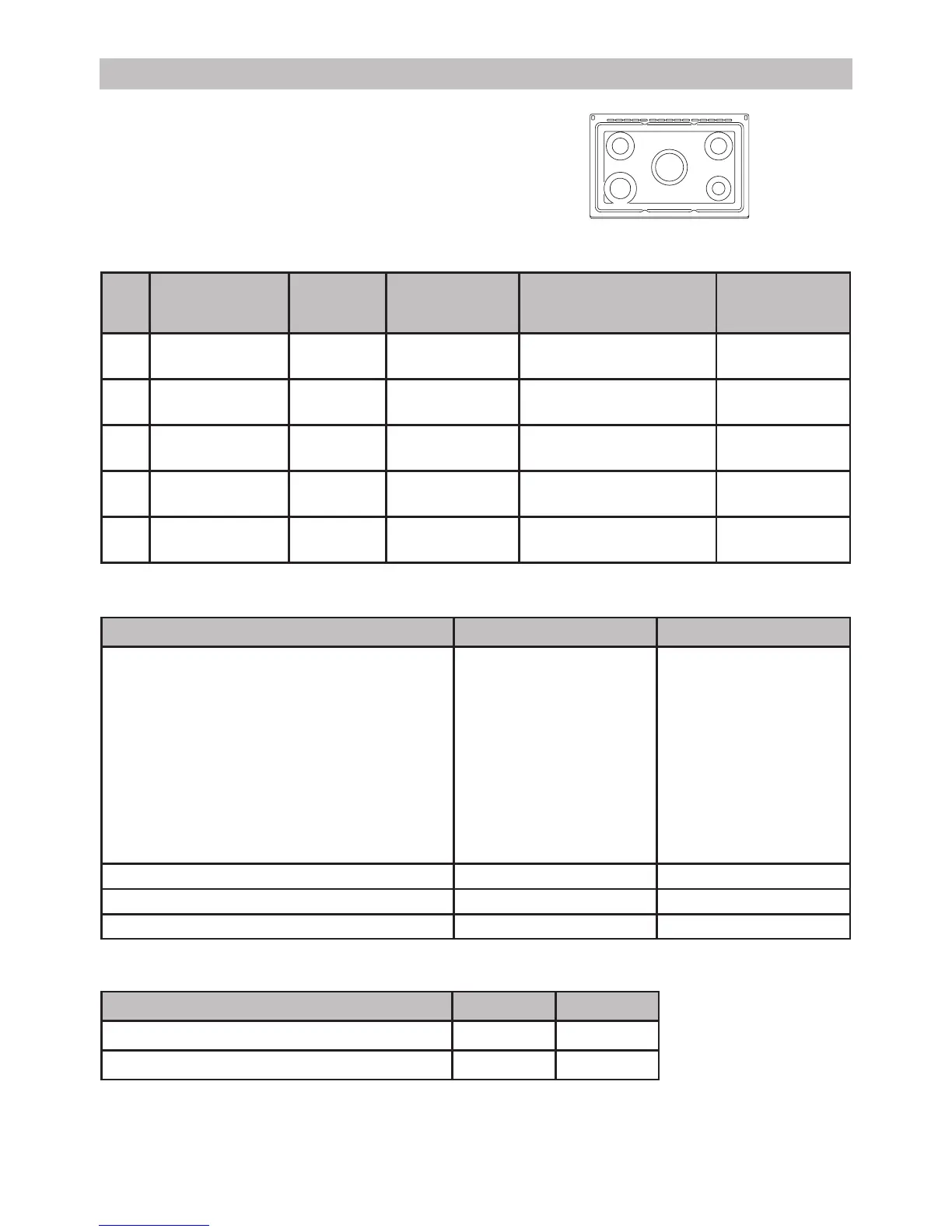

TECHNICAL FEATURES
BURNER DISPOSITION
BURNER TECHNICAL DATA TABLE
N.
BURNER
DENOMINATION
GAS
OPERATING
PRESSURE
kPa
DIAMETER INJECTORS
1/100 mm
RATING
MJ/h
2
Large
Left front
Propane
Natural
2.75
1.00
88
142
10.0
10.0
3
Medium
Right rear
Propane
Natural
2.75
1.00
73
120
7.2
7.2
3
Medium
Left rear
Propane
Natural
2.75
1.00
73
120
7.2
7.2
4
Small
Right front
Propane
Natural
2.75
1.00
54
90
3.8
4.0
6
Wok
Center
Propane
Natural
2.75
1.00
105
175
14.6
15.0
ELECTRICAL COMPONENTS NOMINAL DATA
DESCRIPTION BAU91EG BAU91EE
Lower heating element of the oven
Top heating element of the oven-grill
Rear heating element
Grill heating element
Oven lamp
Fan of the rear heating element
Power cable
A - Radiant heating element
(Ø 140 mm
B - Radiant heating element (Ø 210 mm)
C - Double radiant heating element (Ø 140/210 mm)
D - Double oval radiant heating element (190X285 mm)
2100 W
2000 + 2200 W
3000 W
15 W - E 14 - T 300
25..29 W
H05 RR-F 3 x1.5 mm
2
2100 W
2000 + 2200 W
3000 W
15 W - E 14 - T 300
25..29 W
H05 RR-F 3 x 6 mm
2
1200 W
2100 W
800 + 1400 W
800 + 1400 W
Voltage
240 V~ 240 V~
Frequency
50 Hz 50 Hz
Total rating electric 3200 W 12100 W
TECHNICAL DATA
GAS
NATURAL PROPANE
Operating pressure gas 1.00 kPa 2.75 kPa
Total input gas 43.4 42.8




