Baumatic BDI632 User Manual

30
Installation
IMPORTANT: THIS INSTALLATION MUST BE
COMPLETED BY A SUITABLY QUALIFIED PERSON.
BAUMATIC ONLY SANCTION THE INSTALLATION
GIVEN IN THIS INSTRUCTION MANUAL. YOU
SHOULD DISPOSE OF ALL PACKAGING IN AN
ENVIRONMENTALLY FRIENDLY MANNER.

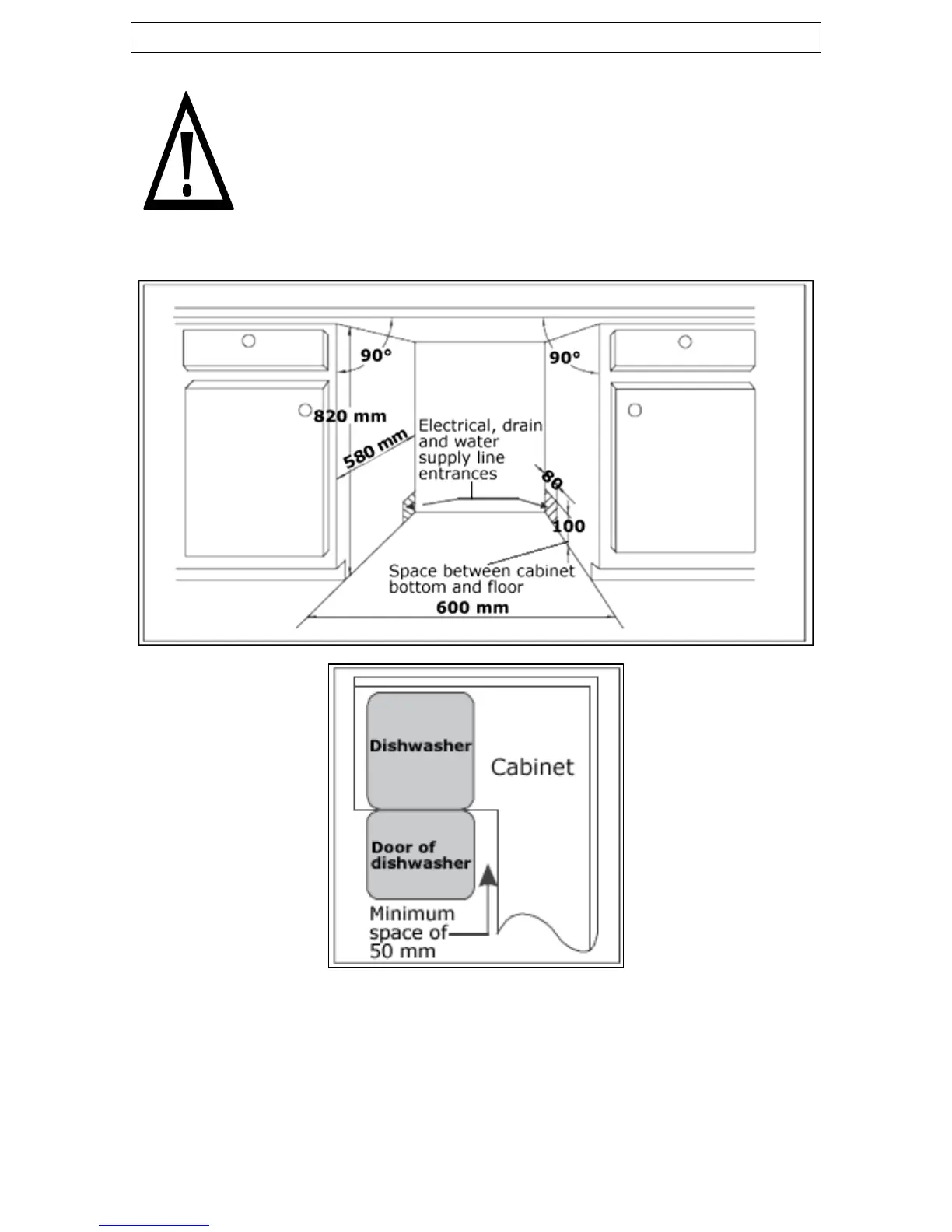

Aperture requirements
o The aperture that your dishwasher needs to be installed into
should resemble the one shown in the above drawings.
o There should be less than a 5 mm gap between the top of the
dishwasher and the underneath of the worktop.

Baumatic BDI632 Specifications

General

Door color	Not applicable
Control type	Buttons
Built-in display	-
Appliance placement	Fully built-in
Control panel color	Stainless steel
Noise level	53 dB
Dishwashing programs	Eco, Intensive, Normal, Quick, Rinsing + drying
Number of place settings	12 place settings
Number of washing programs	5
Drying class	A
Water consumption per cycle	12 L
Energy consumption per cycle	- kWh

Weight and Dimensions

Depth	540 mm
Width	595 mm
Height	850 mm
