(Unit: mm)
3.5
15
444
1.5
390
179
175
19
38
52
418
Cabinet
Dishwasher
Door of
dishwasher
Minimum space of 50mm
90 °
90 °
450 mm
820mm
100
600mm
80
Space between cabinet
bottom and floor
Electrical, dra in and
water supply line
entrances
Please carefully read the installation instruction.

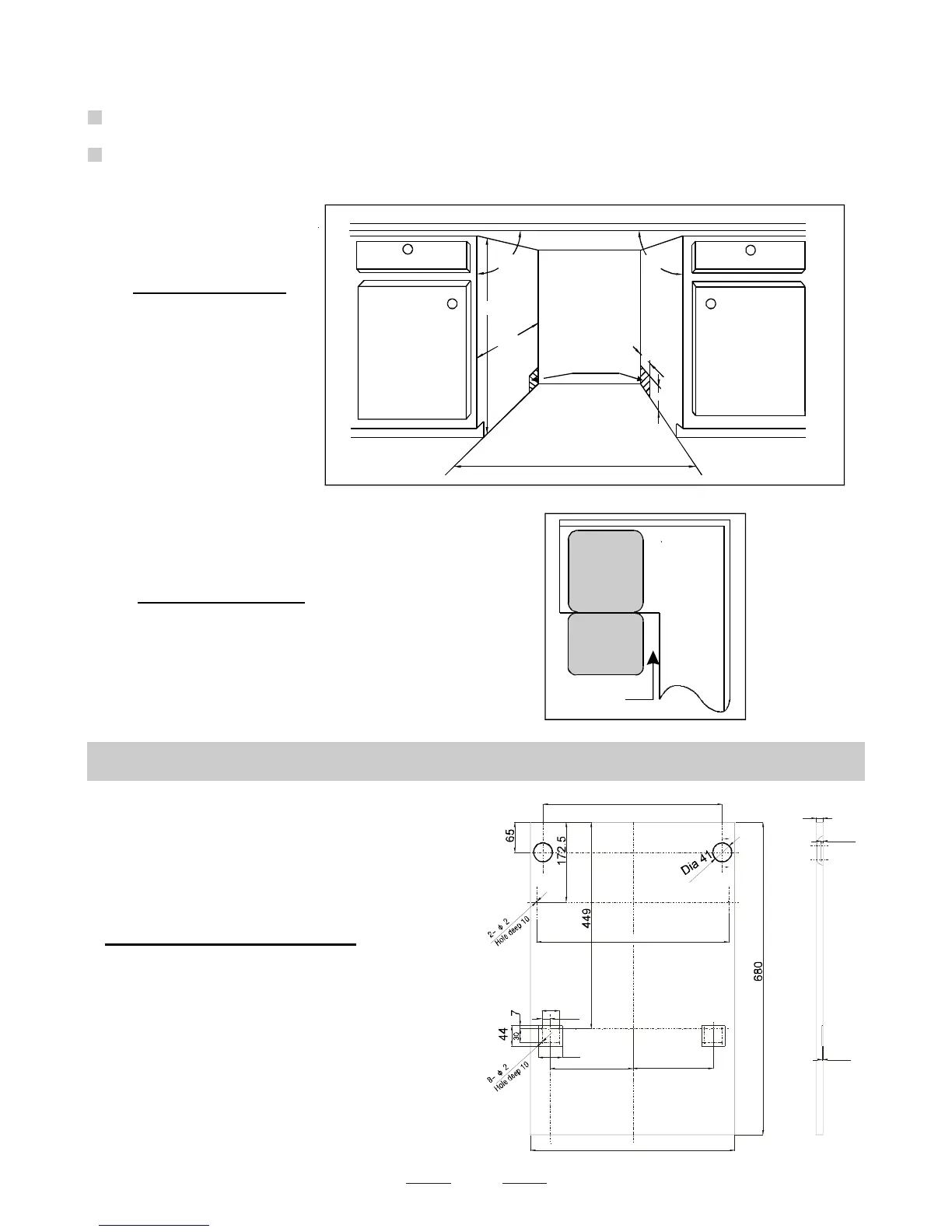

● Illustrations of cabinet dimensions and installation position of the dishwasher
Preparations should be made before moving the dishwasher to the installation place.
Choose a place near the sink to facilitate the installation of inlet and drain hoses
(see figure 1).
If dishwasher is installed at the corner of the cabinet, there should be somespace
(illustrated in figure 2) when the door is opened.
2
1
Minimum space when
the door is opened
【Figure
2】
Cabinet dimensions
【Figure1】
1
Theaestheticwoodenpanel
could be processed according to the figure 3
The aesthetic panel should
be processed in accordance
with the illustrated dimensions
【Figure3】
●
Aesthetic panel's dimensions and installation
Less than 5mm
between thetop
of dishwasher and
cabinet and the
outer door aligned
to cabinet.
