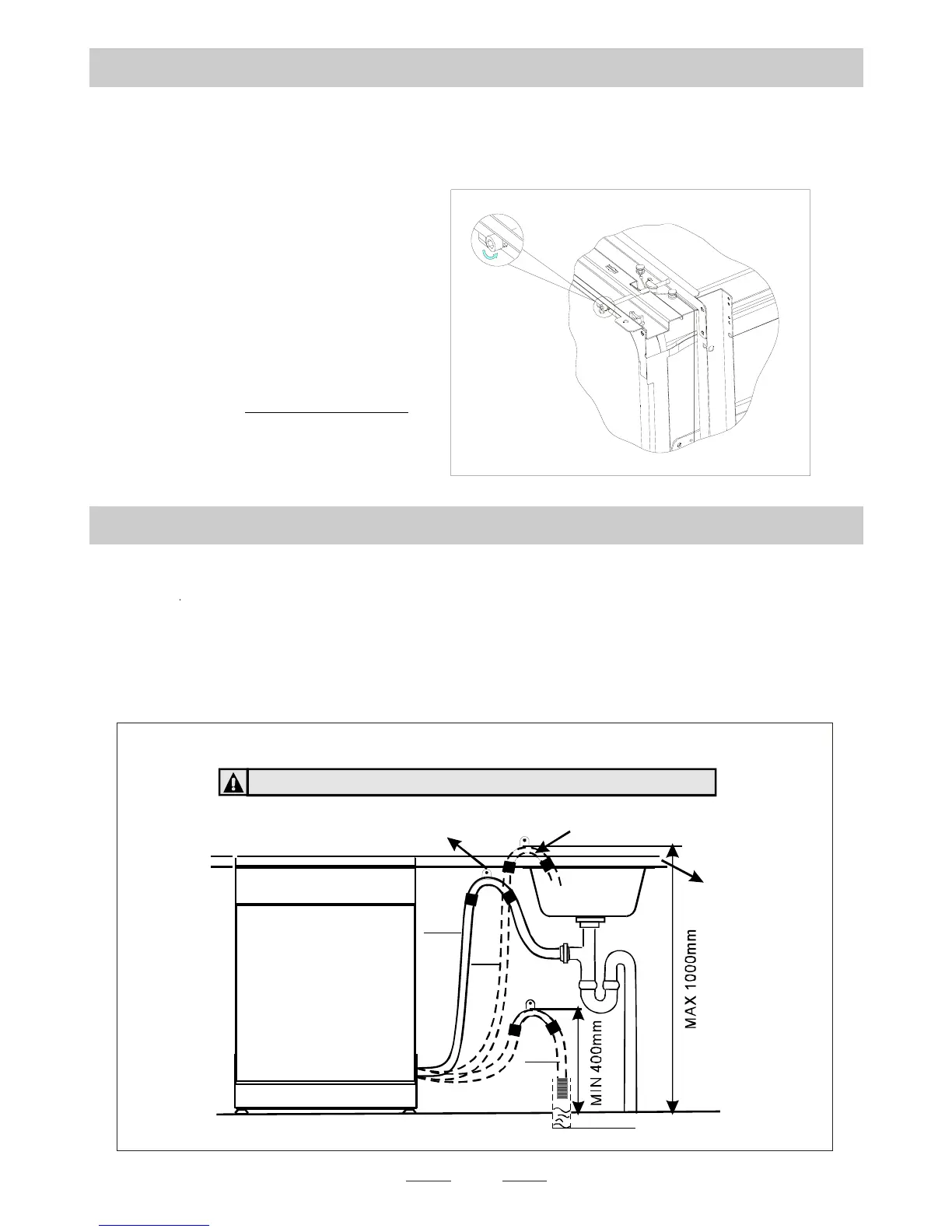

Tension adjustment
of the door spring
【Figure5】
Tension adjustment of the door spring
●
Connection of drain hoses
●
The door springs are set at the factory to the proper tension for the outer door. If aesthetic
wooden panel are installed, you will have to adjust the door spring tension.Rotatetheadjusting
screw to drive the adjustor to strain or relax the steel cable(see figure 5).
Door spring tension is correct when
the door remains horizontal in the
fully opened position，yet rises
to a close with the slight lift of a
finger.
relax
Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it
run into the sink, making sure to avoid bending or crimping it. Use the speical
plastic support that comes with the appliance (figure 6). The free and of thehose
must be at a height between 400 and 1000mm and must not be immersed in water
to avoid the back flow of it.ATTENTION: The special plastic hose support must be
solidly fastened to the wall to prevent the drain hose from moving and allowing water
to spill outside the drain.
【Figure
6】
21
PLEASE HANG UP THE DRAIN HOSE EITHER WAY OF A,B, C
φ
40mm
A
B
C
Counter
Front
Drain pipe
Drain hose hookClose the drain hos e hook to the counte r
