Baumatic P30SS - Page 21

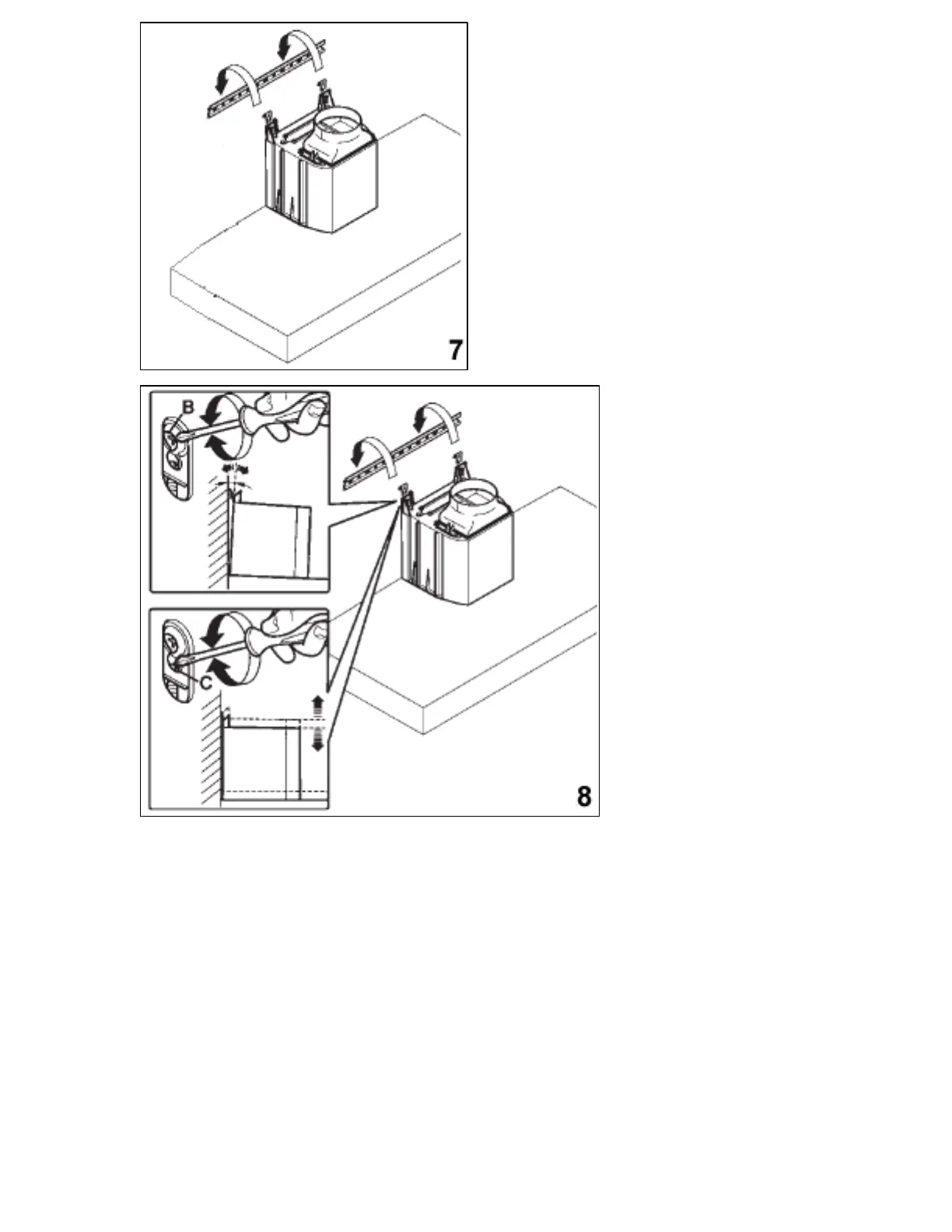

7) Hook the hood onto the
mounting bar.
8) If required you can adjust the alignment of the cooker hood using
the screws on the brackets that hook over the mounting bar.
o The top screw (B) adjusts the distance from the wall and the
bottom screw (C) adjusts the height.
21
