Connecting to external ducting

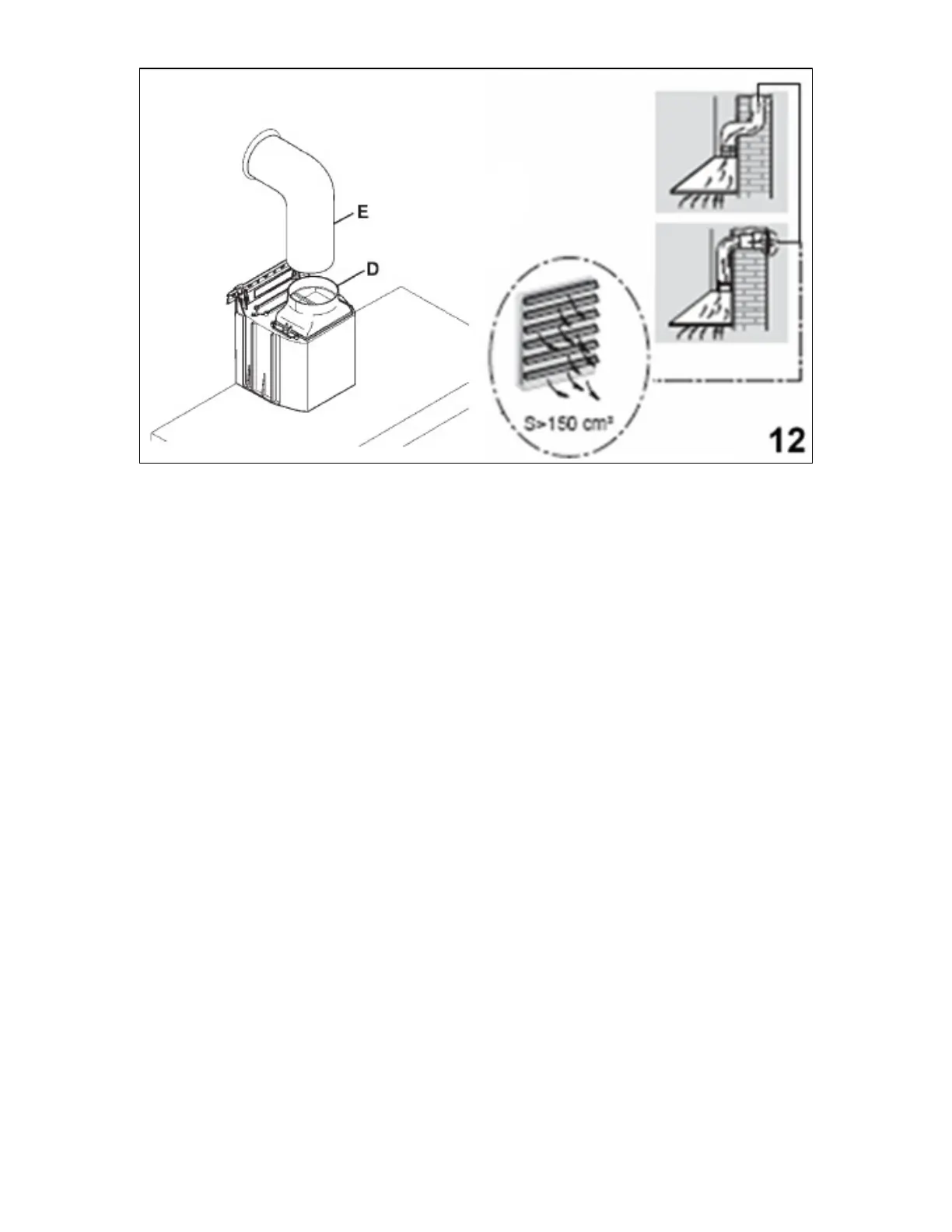

12) Connect the coupling (D) to the top of the cooker hood.
o You may find an anti-draft flap included with the fixtures and
fittings for the cooker hood. You should sit this in the top of the
coupling.
o Connect a 125 mm ducting hose (E) to the coupling. Please note
that the ducting hose is not supplied with the appliance.*
o The other end of the ducting hose should be connected to a
discharge outlet that is suitable for cooking vapours. It should
have a cross section of at least 150 cm².
o The maximum distance between the coupling and your discharge
outlet should be 3 metres, with one 90 degree bend.
* It is possible to purchase a ducting kit from the Baumatic Spares
Department (either the DK5 or DK10).
