Fitting the chimney

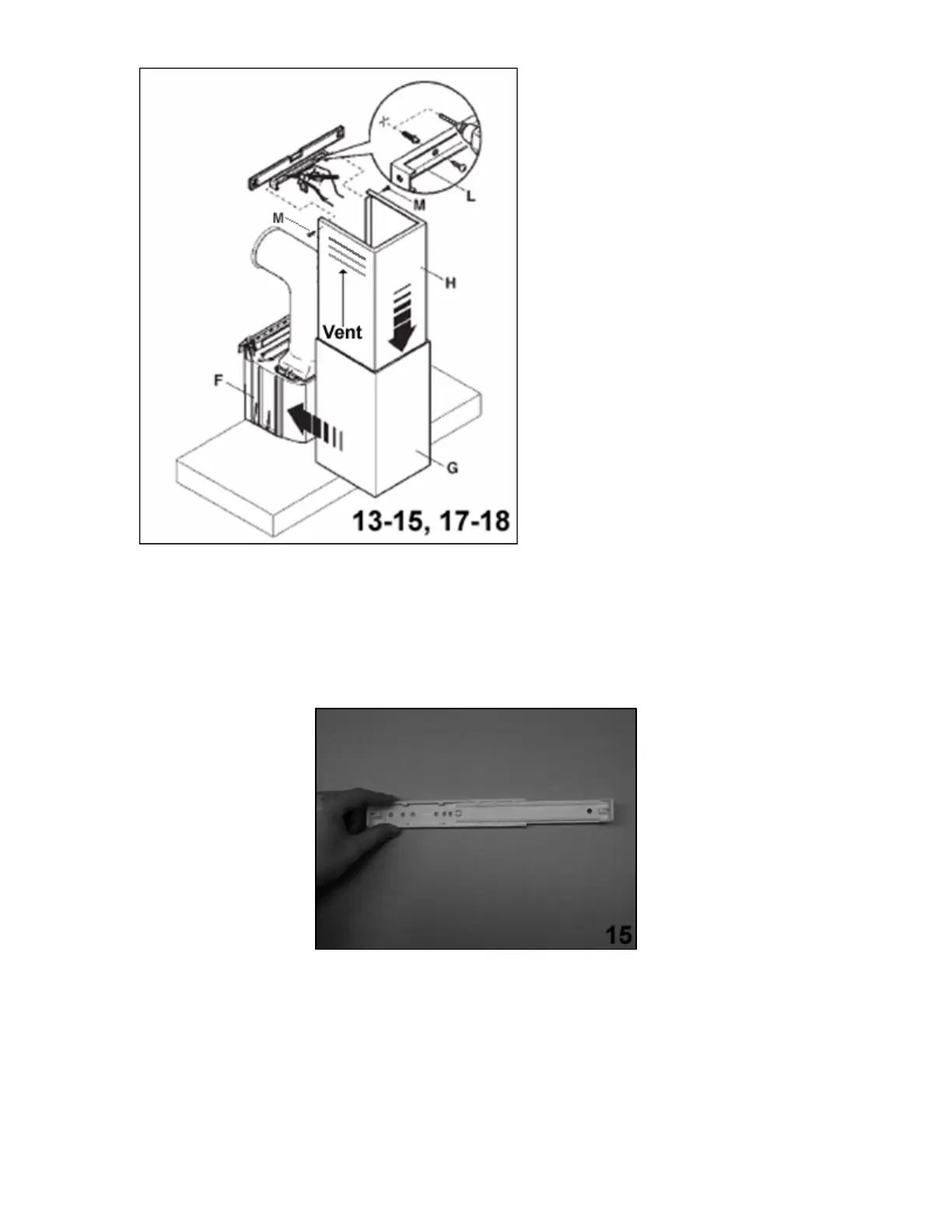

13) Separate the two
chimney sections (G and H).
o Rest the bottom of
chimney section G on the
top of the hood. Making
sure that the holes at the
bottom of it, line up with
the securing holes on top
of the motor housing.
o If you want to install the
appliance at its minimum
height (i.e. only using one
section of chimney), then
you should complete
steps 14-18 using
chimney section G only.
14) Lift chimney section H upwards to the desired height. You must
ensure that it is perpendicular to the hood.
o Mark the side measurement of both sides of chimney section H
on the wall with a pencil and then remove chimney sections G
and H.
15) Take the fixing bracket (L) and place it between the two pencil
marks that you made in step 14. Use a spirit level to ensure that the
bracket is level before marking the position of the screw holes.
o Keeping the bracket in contact with the wall, use a pencil to
mark the position of the holes at either end of the bracket on the
wall.
24
