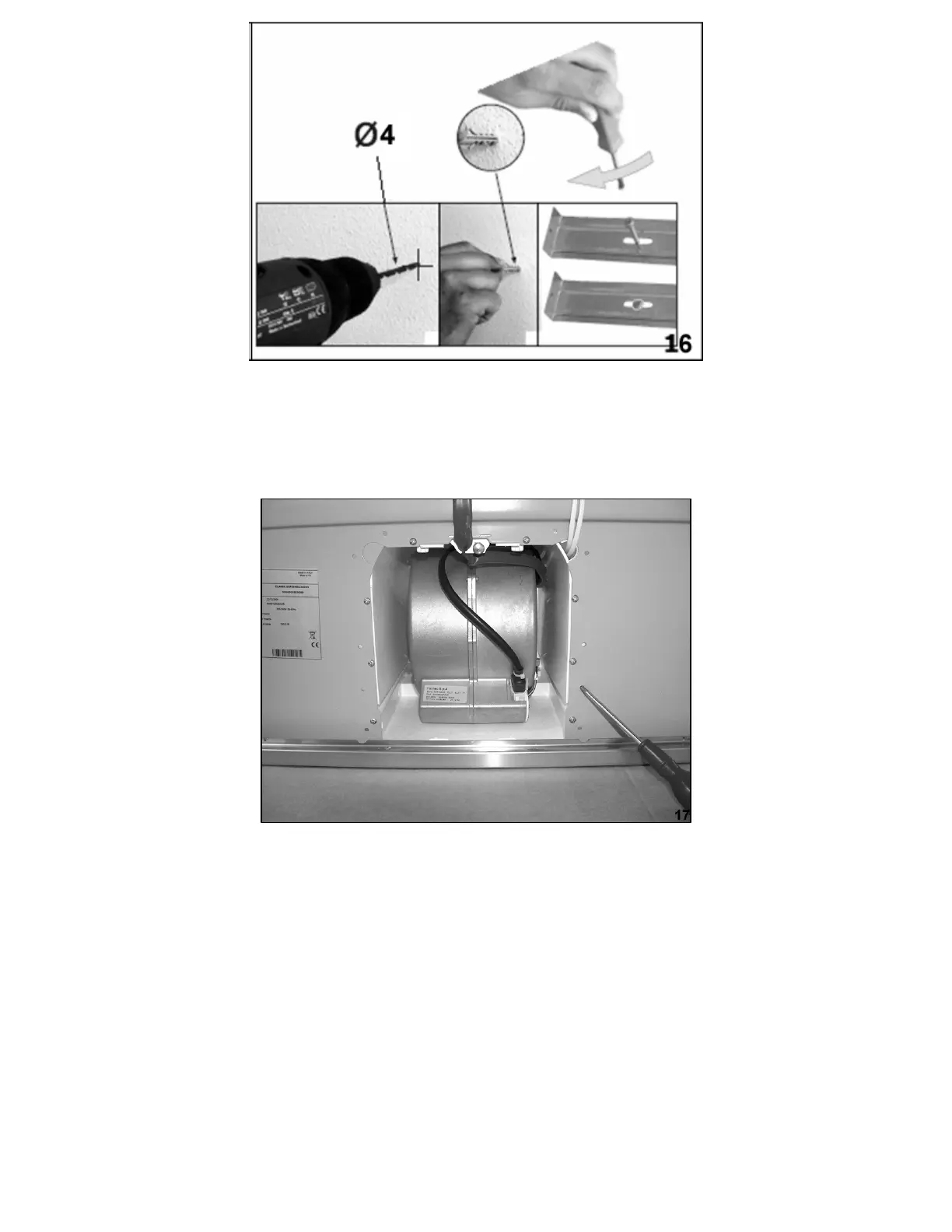

16) Using a 4 mm drill bit, drill out holes on the pencil markings that
you made in step 15. Insert rawl plugs into the holes and then use a
screwdriver to secure the fixing bracket to the wall.
17) Place chimney section G back onto the hood.
o Make sure that the holes in the bottom of chimney section G line
up with the securing holes on top of the main body of the motor
housing.
o From inside of the motor housing, screw chimney section G to
the hood. You should make sure that you fully tighten these
screws.
o Slide chimney section H back inside of chimney section G (unless
you are installing the cooker hood at its minimum height and
only using the lower chimney section).
