Electrical details
Rated Voltage: 230 Vac 50 Hz
Supply Connection: 40 A (double pole switched fused
outlet with 3mm contact gap)
Max Rated Inputs: 7.00 kW
Mains Supply Lead: 3 core x 6 mm² (not supplied)
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate of your hob is located on
the underneath of the appliance. Therefore it is a good idea to record
this information before you install your appliance.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….

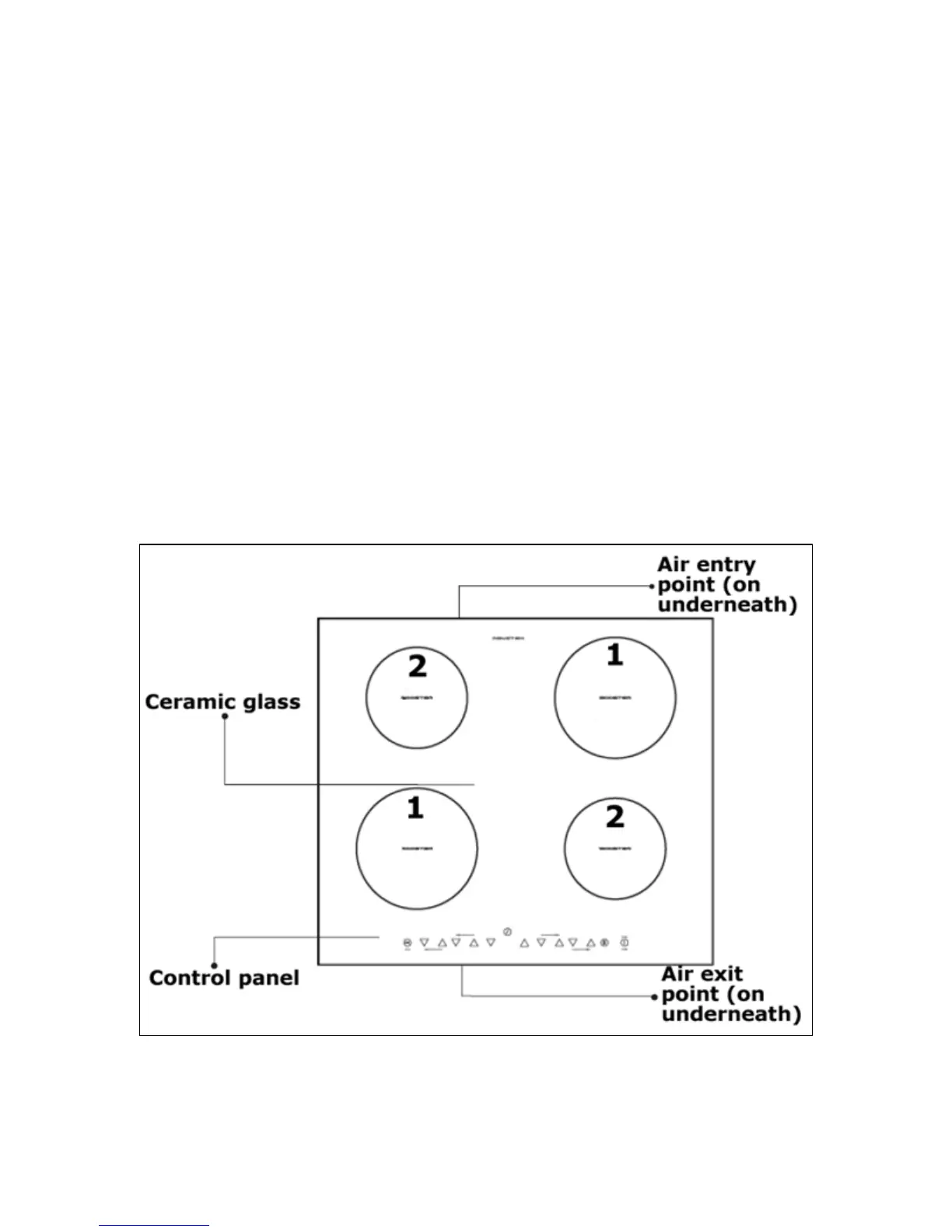

Ceramic hob surface layout
1) 2.00 kW induction zone (Ø 180 mm)
2) 2.00 kW induction zone (Ø 150 mm)
10
