Connecting the mains supply cable
o The mains terminal block is located on the underside of the hob
and the terminals are accessible by removing the terminal block
cover by removing the cover screw.
o The mains terminal block is located on the underside of the hob
and the terminals are accessible by removing the terminal block
cover. You should remove the cover screw to access this.

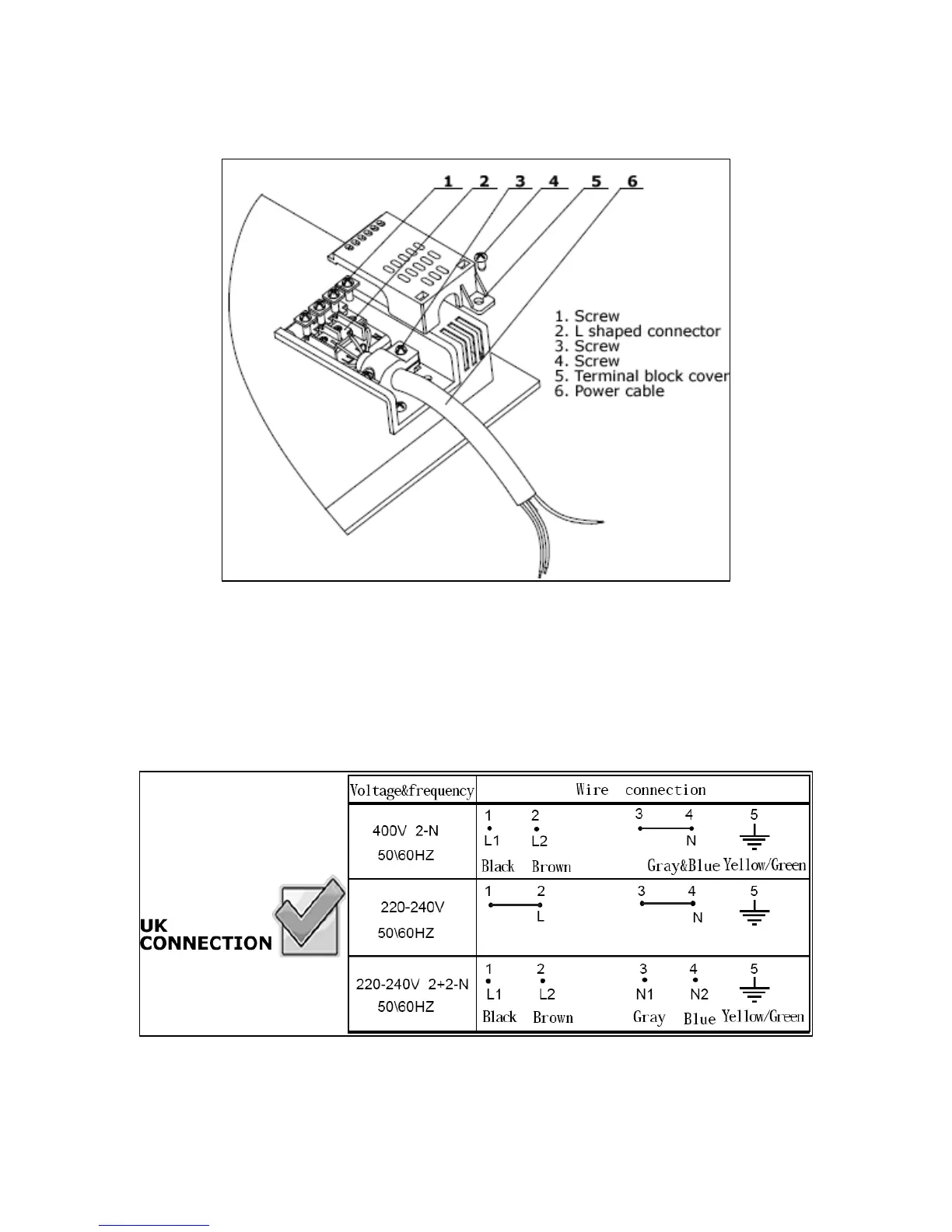

o The cable connections must be in accordance with the diagram
located on the bottom of the hob and below.
o 1 and 2 are the live connection, 3 and 4 are the neutral
connection and the remaining one is the earth connection.
