5. Mechanical Mounting
5.1. Preparations
• Attention!Observethesafetyinstructionsinchapter4.
• Make sure the drive will not be operational for the time of tachogenerator
installation.
• Prior to any installation work, switch off overall voltage supply and ensure
machinery is idle..
• Werecommendsufcientcontactsurfaceaccordingtothedimensionsspeciedin
chapter8.Fortachogeneratortypeidenticationseeproductlabel.
5.2. Installation
• Makesurethenecessarypreparationsforinstallationaccordingto
chapter5.1.arepresent.
5.2.1. Shaftdesigns:KTD3-…B10;KTD3-...+ITD2…B10;
ITD 4…. + KTD 3-… B10…
• Avoid a rigid connection between tachogenerator and drive shaft.
• Connect drive and tachogenerator shaft using a suitable coupling.
The tachogenerator must be mounted on the drive with the least possible angular
error and parallel misalignment.
• For suitable connections, see accessories.
• Ensure correct installation without hampering operation.
• Objectsinthenearvicinitymustbekeptatasufcientdistancefromthe
coupling.

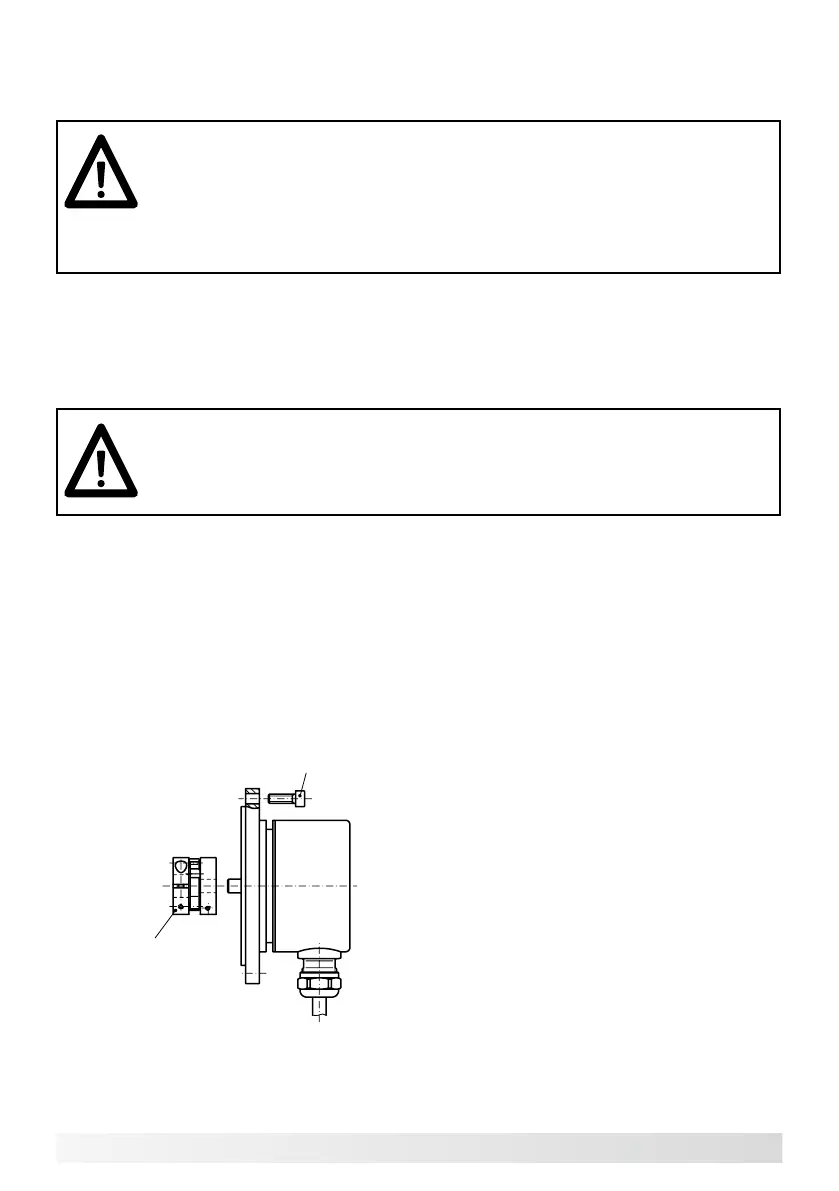

fixings
screws
flexible,
torsionally rigid
coupling CPS...
