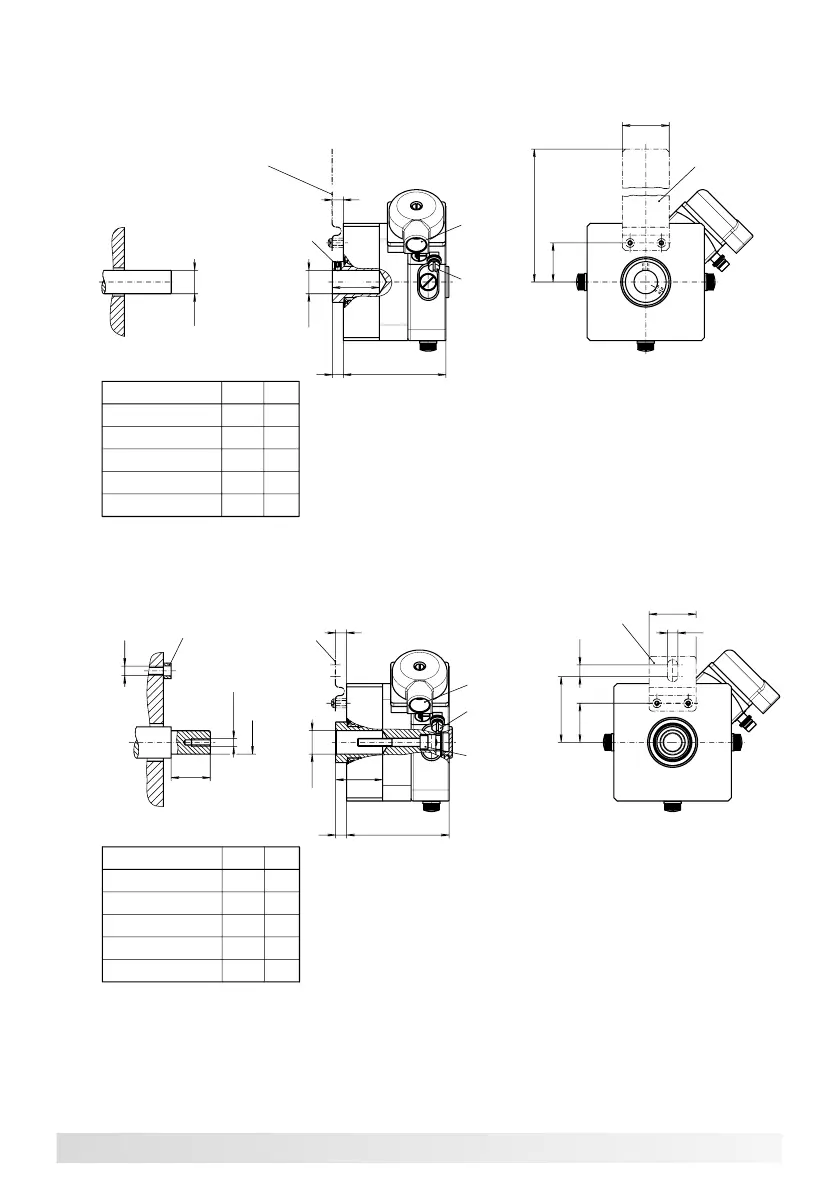

8. Dimensional drawings
KTD 3-... A 4 L Y 9
d =ø10 mm - ø16 mm
Please specify the desired
bore diameter in your order.
Please specify the desired
mounting kit in your order.
Type
KTD 3-1 A 4 L Y 9
KTD 3-2 A 4 L Y 9
KTD 3-3 A 4 L Y 9
KTD 3-4 A 4 L Y 9
KTD 3-6 A 4 L Y 9
a
65.5
65.5
65.5
75.5
75.5
VDC
10
20
30
40
60
ground
terminal M4
mounting side
(proposition)
mounting kit 052
(standard)
2 set screws
DIN EN ISO 4029
- M4x5
flexible
torque
support
Pg 7
d g6
7
a
135
30
7
25
30
d H6
018-24 Y 9
KTD 3-... A 4 L Y11
Type
KTD 3-1 A 4 L Y11
KTD 3-2 A 4 L Y11
KTD 3-3 A 4 L Y11
KTD 3-4 A 4 L Y11
KTD 3-6 A 4 L Y11
VDC
10
20
30
40
60
spacer
mounting side
(proposition)
flexible
torque support
a
65.5
65.5
65.5
75.5
75.5
Pg 7
mounting
kit 056
(standard)
ground
terminal M4
cylinder head screw
DIN EN ISO 4762
- M5x40
A/F4
tightening torque
max. 4.7 Nm
d =ø10 mm - ø16 mm
Please specify the desired
bore diameter in your order.
Please specify the desired
mounting kit in your order.
a
25
d g6
M6
M5x12
25
30
6.6
42
7.5
7
7
d H6
018-24 Y11
30
