19
NE215Programming mode

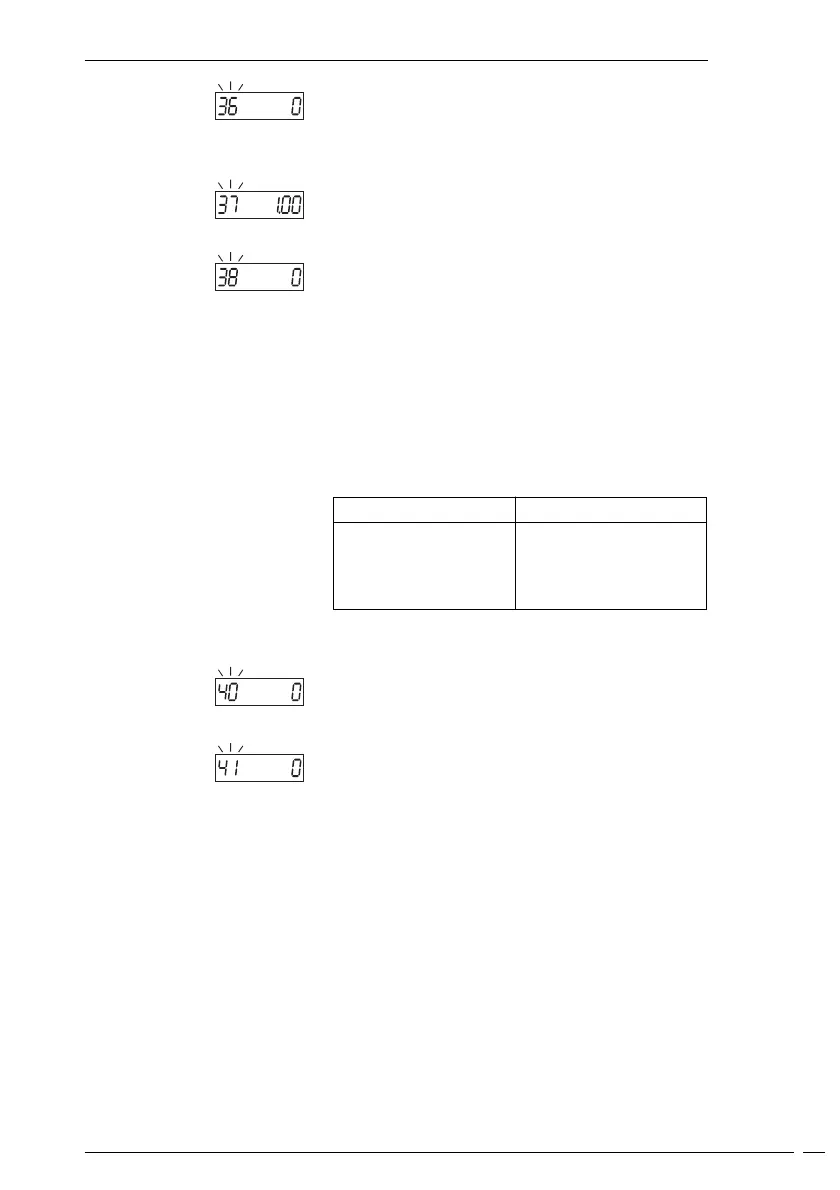

Line 36 Secondary counter functions XB
0 * External
1 Internal
2 Tachometer
Line 37 Pulses per unit of measurement, as tachometer
1. 0 0 * 1 , 0 0
0,01 - 9999.99
Line 38 Input of time measurement in seconds (s)
0 * Time base 1 s
1 Time base 2 s
2 Time base 3 s
3 Time base 6 s
4 Time base 10 s
5 Time base 20 s
6 Time base 30 s
7 Time base 60 s
The time base must be selected in accordance with the pulse
rate.
Examples
Line 40 Function input time meter
0 * Operating hours with supply on/off
1 Operating hours on/off
Line 41 Code setting
0 * No code
1 -9999
● At the conclusion of these programming lines, a broken line will
appear in the display, signifying the competion of the third
programming segment.
Pulses per rev. Time base in seconde
≥ 60 pulses/rev 1 s
< 60 ≥ 30 pulses/rev 2 s
to to
1 pulses/rev 60 s
