NE215Getting to know the counter
2 Getting to know the counter
The counter comprises the following:
– Presetting the counter with 2 preset value, (preliminary testing by PTB)
– Secondary counter with preset value and multiplier,
– Totalizing counter, (preliminary testing by PTB)
– Time meter

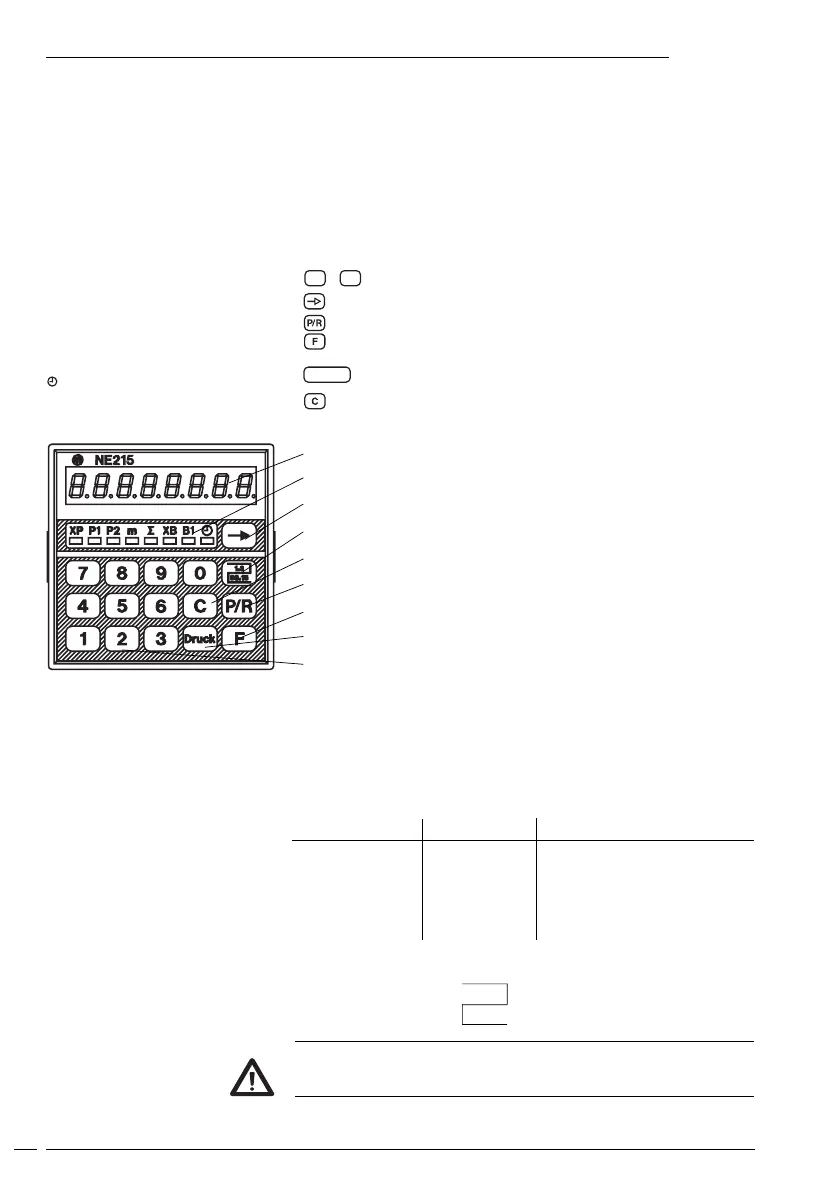

Function display
LEDs- Symbol display
Selector key/Function display
PTB-Number
Reset key C
Selector key for programming/operating mode
Function key
Key for printing
Numerical keypad
The counter is a micro-processor controlled electronic device with
serial interface for counting, controlling and monitoring. The device is
approved by the German Physical Technical Authorities (PTB) as
calibrated for the use as: “measured value transfer device for
application in calibrated machines for length measurement”.
Registration From Reference number
NE215 23.12.1993 1.62-3251.11 / IVO-040293
1. addendum 16.03.1995 1.62-3251.11 / IVO-040293
2. addendum 28.09.1997 1.62-3251.11 / IVO-040293
3. addendum 24.06.1999 5.23-99037480
4. addendum 29.03.2001 5.21-01028291
PTB-Approval:
The counter is only PTB approved in combination with an encoder.
The PTB- approved system for example provides a chart printer
model STAR SP298.
Address for printer:
DATAMEGA Mikrodatent. GmbH
Landsberger Str. 318-320
80687 München
Tel.: +49 (0)89 56017-300
Components / LED-display
XP Counter status, main counter
P1 Preset value 1, main counter
P2 Preset value 2, main counter
m Meter display
Σ Totalizing counter
B1 Preset value, sec. counter
Current value, time meter
Control panel
0
...
9
Numerical keypad
Selector key for function display
Selector key for programming/operating mode
Function key
Druck
Key for printing
Reset key
