Programming segment 3
Programming segment 3 begins with programming line 21.
14 programming lines are displayed in sequence in these segments.
Default settings are always printed with * .

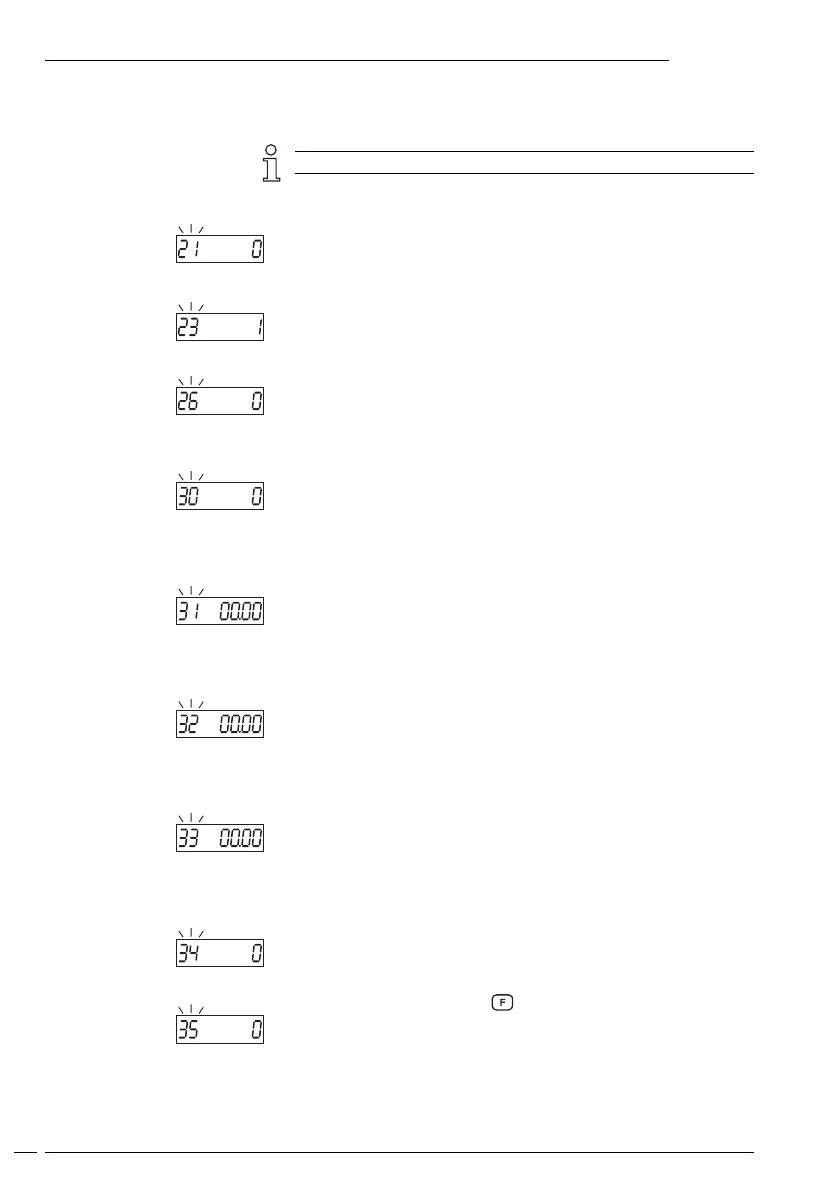

Line 21
Operating modes
0 * Step preset
1
P1 Self-adjusting preset
Line 23
Multiplier, secondary counter
1 * 1
2
2-99
Line 26
Frequency, secondary counter XB
0 * 10 kHz
1
25 Hz
2
15 Hz
Line 30
Reset secondary counter
0 * Autom. reset and external static
1
Autom. reset and external differential
2
External static
3
External differential
Line 31
Output time P1
00.00 * Data in Sec. (Tol. -0.01 s, range 00.02 -99.99 s)
00.25 0.25
99.99
Maximum puls time
LAtch
Latch= continuous signal
Line 32
Output time P2
00.00 * Data in Sec. (Tol. -0.01 s, range 00.02 -99.99 s)
00.25 0.25
99.99
Maximum puls time
LAtch
Latch= continuous signal
Line 33
Output time B1
00.00 * Data in Sec. (Tol. -0.01 s, range 00.02 -99.99 s)
00.25 0.25
99.99 Maximum puls time
LAtch Latch= continuous signal
Line 34
Accept presets P1, P2 and B1
0 * On reset
1
Effective immediately
Line 35
Adresses for function key
0 * No function
1 Any parameter selection
:
8
Programming mode
To Next Page
