NE215

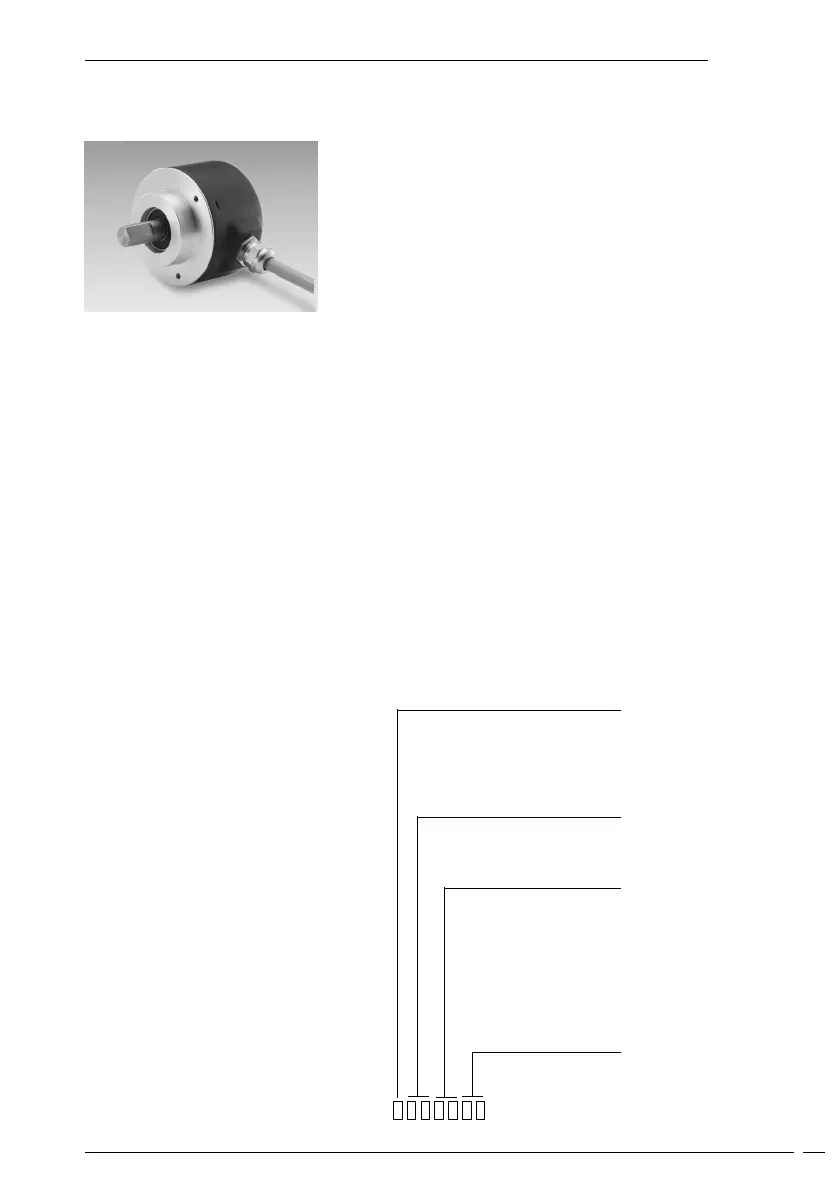

Suitable encoder PTB-version
10. Suitable encoder
Technical Data
Model Incremental Encoder
RPM value 10.000 min
-1
Supply Voltage 10...30 VDC, with reverse voltage protection
Input signals Push-pull, outp., short-circuit-protect.
Signal output Kanal A, B, N
Resolution Up to 500 Impuls
Current consumption Max. 60 mA (w/o load) for 24 VDC
Ambient temperature -20...+70 °C
Storage temperature -20...+100 °C
Protection to
Shaft w/o seal IP 54
Shaft with seal IP 65
Relative humidity Max. 95 %, not condensing
Endurance
Vibration IEC 68 part 2-6 ≤100 m/s
2
/ 16-2000 Hz
Schock IEC 68 part 2-27 ≤1000 m/s
2
4 ms
Starting torque
w/o seal (IP54) ≤0,010 Nm
with seal (IP65) ≤0,015 Nm
Interference immunity EN 50082-2
EN 61000-4 - 2 to 4 Serverity grade 3
Emitted interference EN 50081-2
Shaft loading Axial < 20 N, radial < 40 N
Inertia torque 1,45 x 10
-6
kgm
2
Housing material Aluminium
Weight Ca. 250 g
Order designation
Order Flange / Shaft
0 Clamping flange / 10 mm, mounting M3
1 Clamping flange / 10 mm, mounting M4
5 Servo flange / 6 mm, mounting M4
Voltage / Signals
10 10...30 VDC push-pull output A 90° B +0
Connection
12 Cable 2 m axial, Pg9
14 Cable 5 m axial, Pg9
16 Cable 10 m axial, Pg9
22 Cable 2 m radial, Pg9
24 Cable 5 m radial, Pg9
26 Cable 10 m radial, Pg9
Impuls
39 50 Imp./rev.
15 500 Imp./rev.
