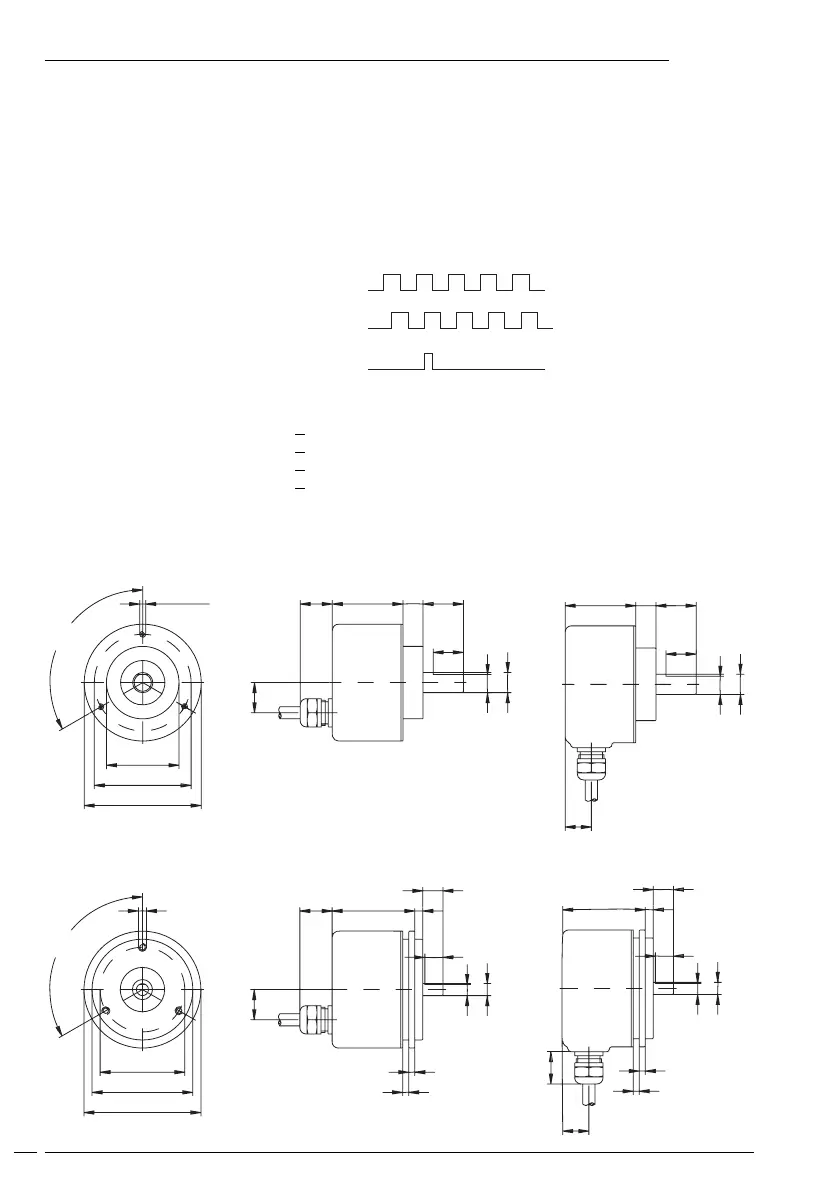

Baumer NE215 - Encoder Pin Assignment and Cable Colors; Encoder Output Signals; Encoder Dimensions

38
NE215
Track A
Track B
Zero pulse
Suitable encoder PTB-version
Pin assignment
Assignment Cable color
A blue
B beige
0 green
UB brown
0V black
Output signals
Signals with clockwise sense or rotation when looking at the flange.
Push-pull output (10...30 VDC)
Level High > UB -3 V (with I = -20 mA)
Level Low < 1,5 V (with I = 20 mA)
Load High < 40 mA
Load Low < 40 mA
Dimensions
GPI0W Clamping flange
GPI0W Servo flange
35
10 20
15
9.
ø 10h8
13
M3 / 5 deep
(M4 / 5 deep)
120°
16 35 10 20
15
15
36f8
48 ±0.1
58
9.
ø 10h8
41
10
4
9.
5,5
ø 6f8
13
3
3
16
M4 / 7 deep
120°
16
41
10
5.5
42 ±0.1
50h7
58
ø 6f8
9.
15
3
3
4
