Baumuller b maXX BM4 Series - Configuration - Select Controller Module; Configuration - Option Module in Physical View

Configuration Example with B&R X20 PLC
Application Manual POWERLINK Controlled Node
Document no. 5.13013.04
43
of 80
6

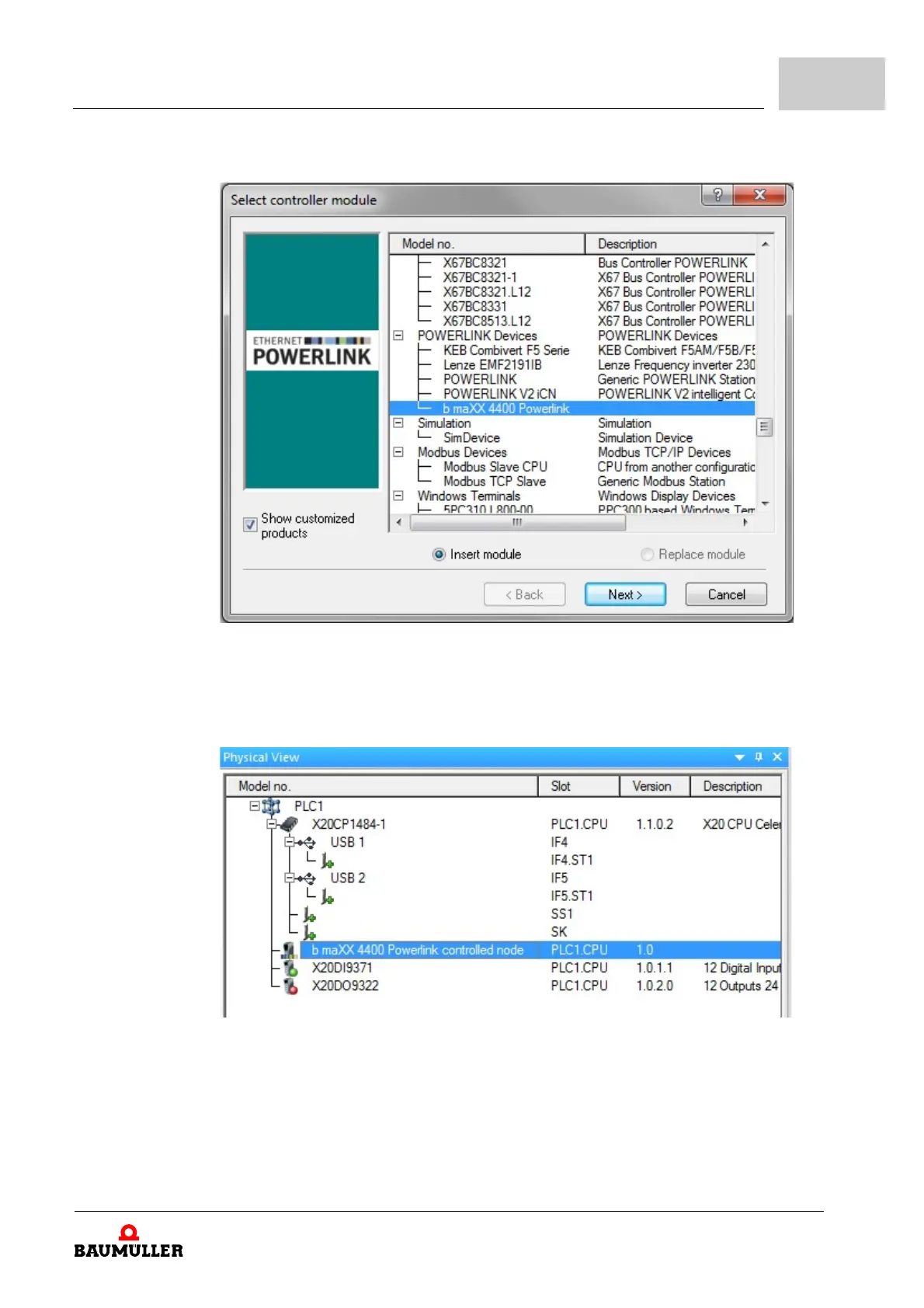

Figure 5: Configuration - Select controller module
Following a successful import, the option module appears in the Automation Studio Phys-
ical View.
Figure 6: Configuration - option module in Physical View
