Baumuller DA 100 - 7 Appendix 1; Main Connection; Terminal Block Designation

TAM 00609 20
DA 100 – 280 03 / 2015
Three phase asynchronous motor air cooled Englisch
7 Appendix 1

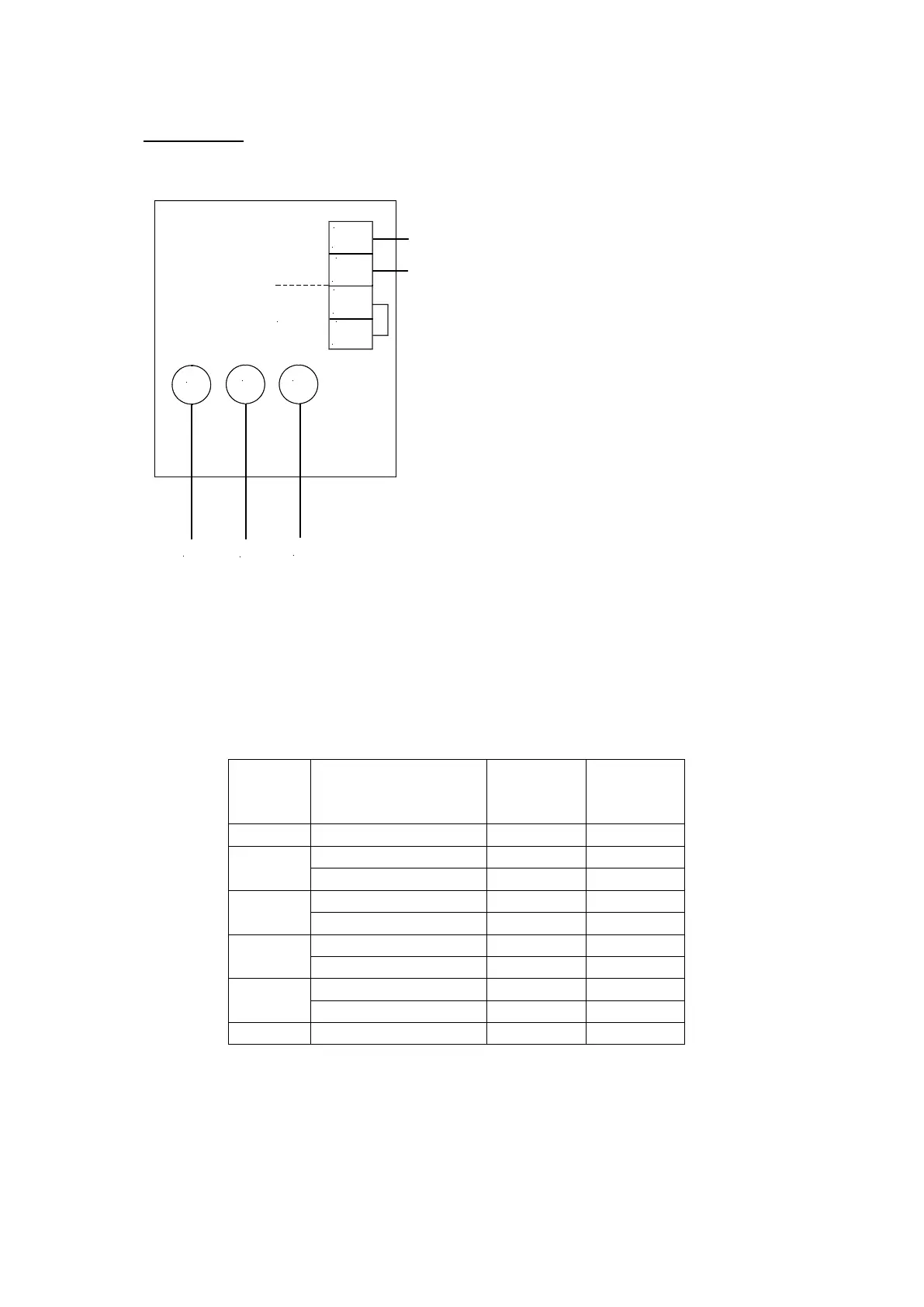

Main connection / terminal block designation: 7.1
Pin assignment
U V W ---------------Power connection
TM + TM - ----------Temperature sensor
CAUTION:
If using the thermal sensor KTY 84, attention
will have to be paid to the polarity during
connection.
The cable inlets of the terminal boxes and the main connection terminals are listed below together
with the permitted tightening torque.
We recommend EMC screwed fittings for the cable inlets.
It is recommended when tightening the terminal screw to support against the conductor to prevent
mounting rail deformation and to keep the terminal base free of torsional forces..
Motor
frame size
Cable gland
Number of
main connec-
tion terminals
Tightening
torque for
terminals
[Nm]
100
1 x M40 + 1 x M25
3x pluggable
-
132
1 x M40 + 1 x M25
3x pluggable
-
2 x M50 + 1 x M25
3 x M6
3
160
2 x M50 + 1 x M25
3 x M6
3
2 x M63 + 1 x M25
3 x M10
10
180
2 x M63 + 1 x M25
3 x M12
15.5
2 x M75* + 1 x M25
3 x M16
30
225
2 x M63 + 1 x M25
3 x M12
15.5
2 x M75* + 1 x M25
3 x M16
30
280
3 x M80 + 1 x M20
3 x M16
30
* terminal box screening led into terminal in terminal box.
Combination: Terminal box designs
Other cable glands and terminals on request, only.
L1
U
L2
L3
V W
TM -
TM +
Reserve
gelb/ yellow
schw./black
TM +
TM -
schw./black
gelb/ yellow
