Baumuller DSD 45 - 7 Appendix; Main Connection with Terminal Box - Terminal Marking

TAM 00621 18
DSD 45-100 05/2007
Three-phase synchronous motor English
7 Appendix

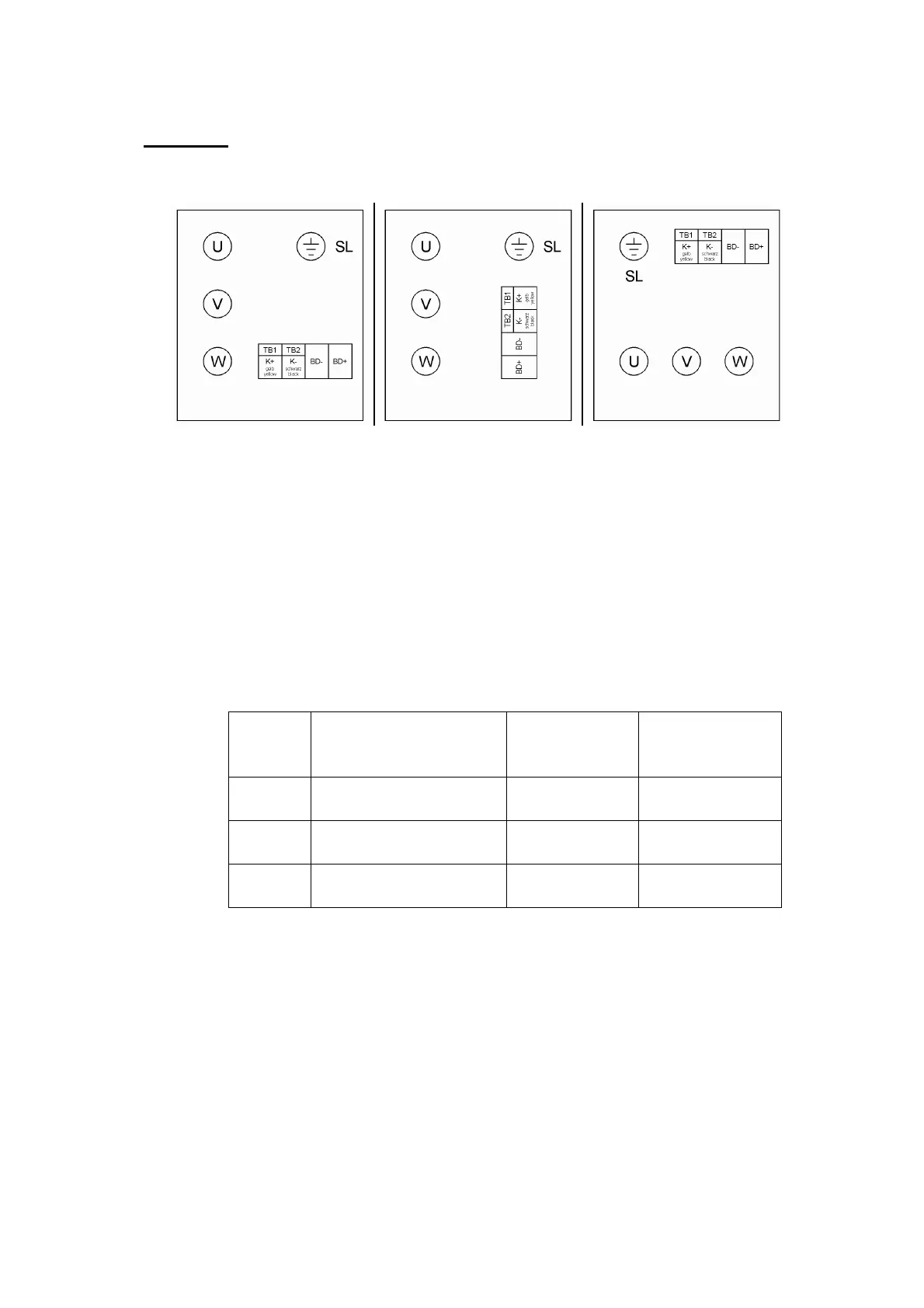

Main connection with terminal box – Terminal marking:
DSD 56 DSD 71 DSD 100
Terminal assignment/main connection (DSD with thermal sensor and brake)
Table 1 provides an overview of the terminal box cable entries and main connection terminals
plus the associated tightening torques.
We recommend the use of EMC cable glands for the cable glands on the cable entries.
When tightening the terminal screw, we recommend supporting the conductor so that the terminal
board is not subjected to any torsional forces.
Motor size Cable entry Number of
main connection
terminals
Tightening torques
for
terminals
[Nm]
DSD 56
1 x M 20 + 1 x M 16 3 x M4 1.2
DSD 71
1 x M 25 + 1 x M 16 3 x M 6 3.0
DSD 100
1 x M 40 + 1 x M 16 3 x M 8 6.0
Table 1: Terminal box designs - Standard
Other cable entries and terminals available on request.
