TAM 00621 19
DSD 45-100 05/2007
Three-phase synchronous motor English

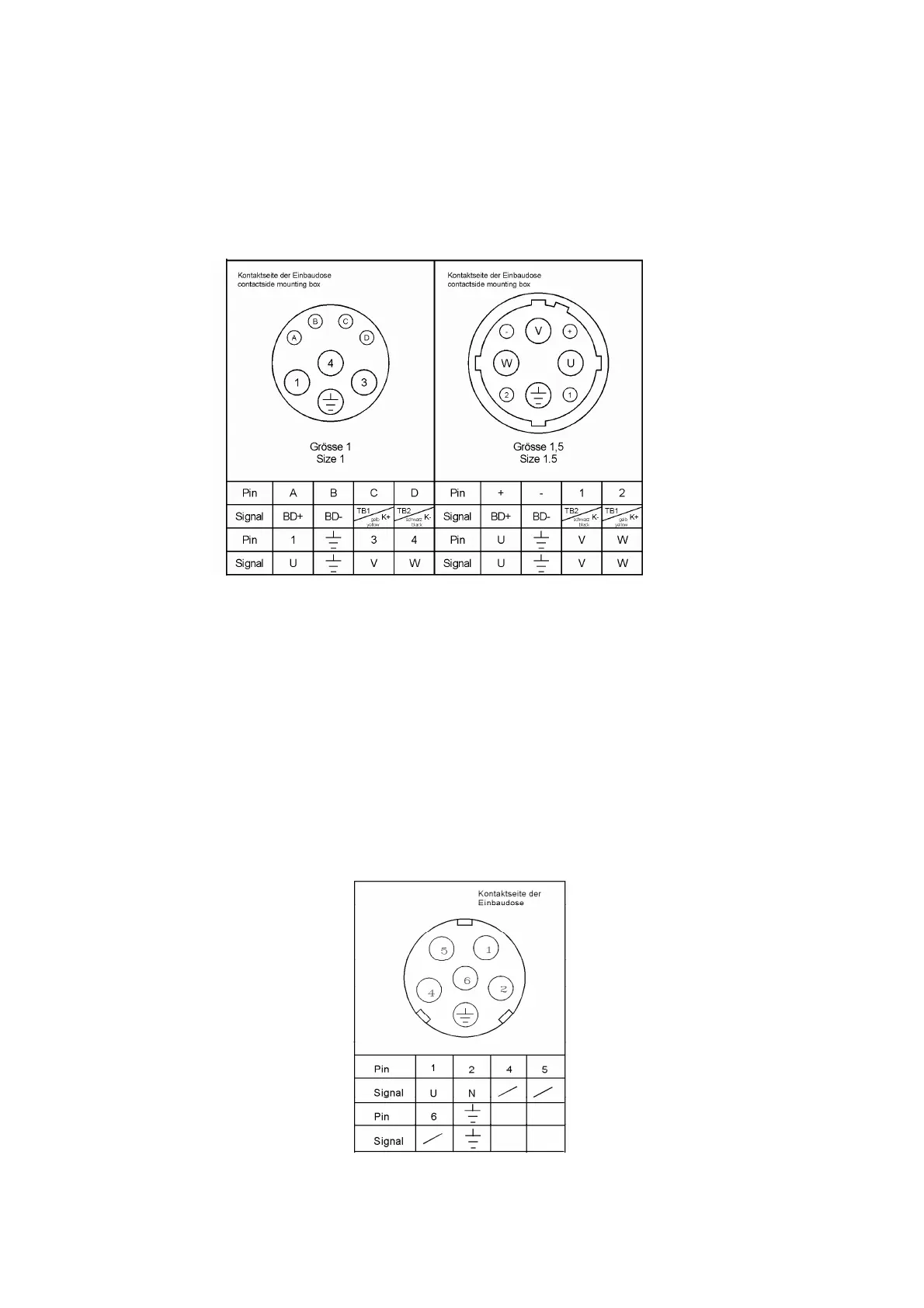

Main connection with connector (option)- Pin assignment:
The motor standstill current I
0
determines the connector size.
Connector size 1: I
0
up to 15 A; Connector size 1.5 : I
0
up to 50 A
Pin assignment/main connection (DSD with thermal sensor and brake)
Note: If a resolver is being used, the thermal sensor’s
K+ and K- signals are routed via the
encoder cable as standard (see pin diagram: resolver connection).
With all other encoder and brake solutions, the thermal sensor signals are routed via
the connector main connection/terminal box main connection (see pin
assignment/wiring diagram above).
Fan connection with connector – Pin assignment:
