Baur PGK 50 - Adjusting Mains Voltage Settings

5-2
5. Servicing
Set mains voltage
Selectable mains voltages
The PGK50/80 mains voltage is factory installed according to
customer requirements. Jumper locations and fuses for the
appropriate mains voltages are provided as follows:
▼
X15
▼
F3
0
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
100mA
10mA
1mA100µA
10µA
1µA
F1
F2
PGK
T / min
0
20
4
0
6
0
8
0
1
0
0
U [
k
I
F1
▼
F2
▼

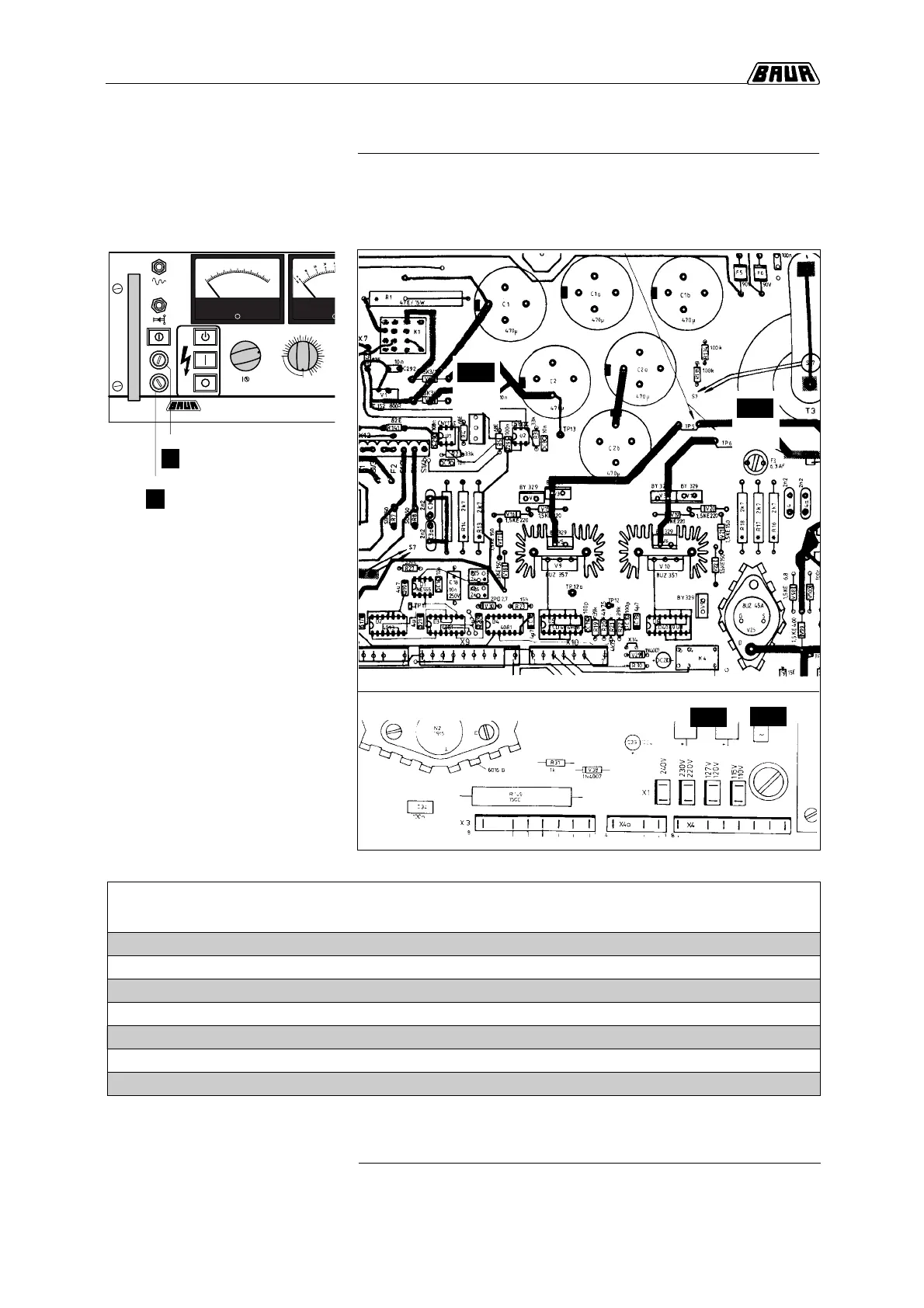

Component layout of power PCB
▼
F4
▼
X1
Component layout of voltage supply PCB
☞
Check set mains voltage on type plate and make corrections if
required.
Mains voltage Position Position Mains fuse Fuse Fuse
plug X15 plug X1 F1, F2 (ø6.3x32) F4 (ø5x20) F3 (ø5x20)
110 V 110 V 110 / 115 V 8 AT 0.8 AT 6.3 A fast
115 V 110 V 110 / 115 V 8 AT 0.8 AT 6.3 A fast
120 V 110 V 120 / 127 V 8 AT 0.8 AT 6.3 A fast
127 V 110 V 120 / 127 V 8 AT 0.8 AT 6.3 A fast
220 V 220 V 220 / 230 V 6.3 AT 0.4 AT 6.3 A fast
230 V 220 V 220 / 230 V 6.3 AT 0.4 AT 6.3 A fast
240 V 220 V 240 V 6.3 AT 0.4 AT 6.3 A fast
