19

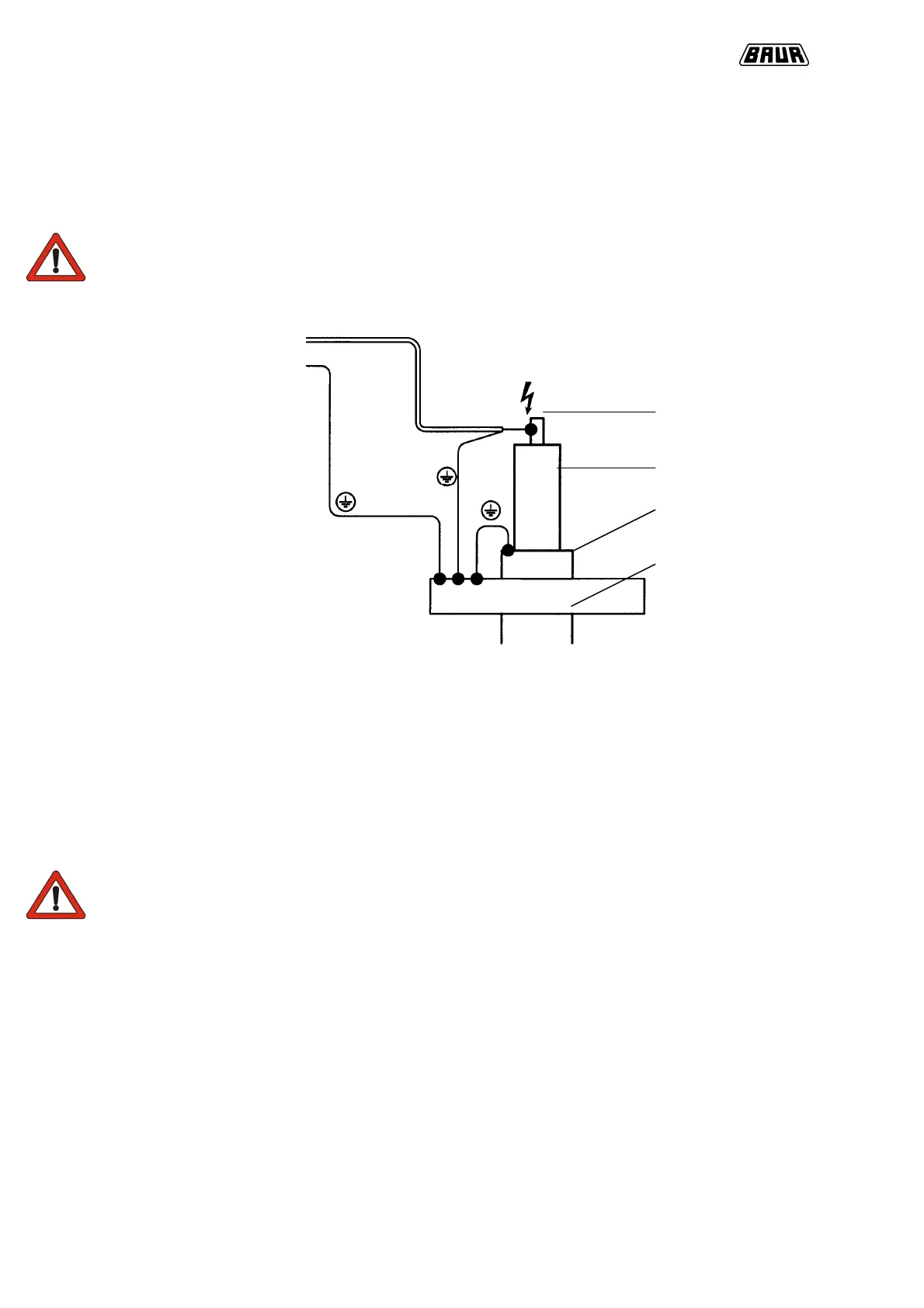

Connection of the high voltage line
The sheath connector of the high voltage cable of the tester has to be connected to the
grounded sheath of the DUT. The high voltage connector has to be connected to the inner
conductor of the DUT.
Please ensure that adequate precautions, as described in the chapter „discharging and
grounding“ and general safety instruction are followed
Operation of Syscompact 2000 only in vertical position!
conductor
termination
sheath
steady protection
earth /
station earth
Syscompact
2000
HV Test lead
Protection earth
